5. Tighten:
• Pin
ion nut “1”
6. Check:
• Drive shaft
movement
Not smooth  Repeat from step (1).
Installing the propeller shaft housing
assembly
1. Install:
• Washer (to
the propeller shaft)
• Propeller shaft assembly (to the prop
eller
shaft housing assembly)
• Reverse gear
shim
• Propeller shaft
housing assembly
• Key
2. Install:
• Claw washer
• Ring nut

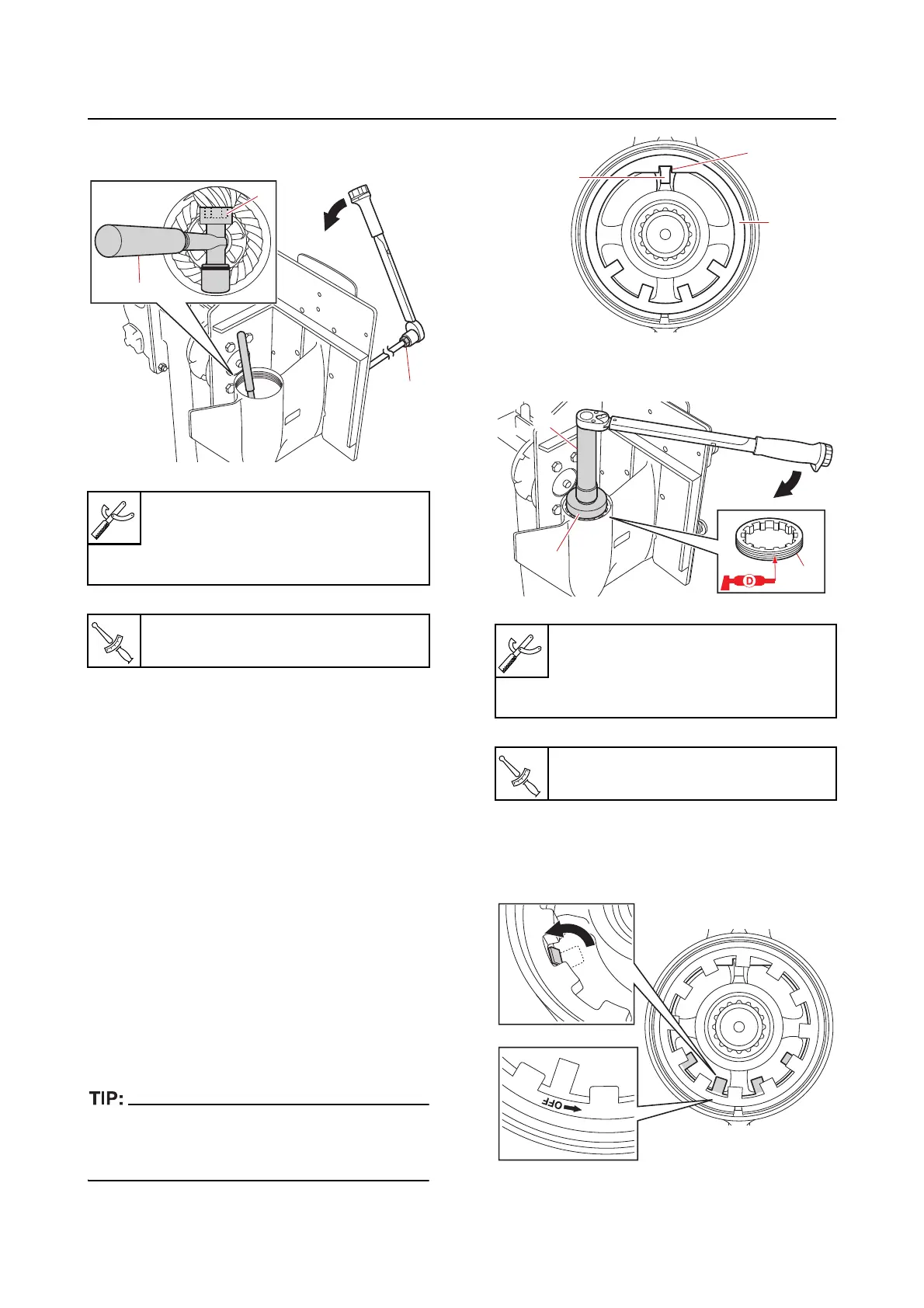

a. Install the claw washer “1”.
Make sure to fit the protrusion “a” on the pro-
peller shaft housing into the slot “b” in the claw
washer “1”.
b. Install the ring nut “1”, and then tighten
it to the specified torque.
c. Bend one of the 4 tabs on the claw
washer outward, and then bend th
e
other 3 tabs inward.
Drive shaft holder 6 “2”
90890-06520
Pinion nut holder “3”
90890-06715
Pinion nut “1”
93 N·m (9.3 kgf·m, 69 lb·ft)
2
3
1
T
R
.
.
Ring nut wrench 3 “2”
90890-06511
Ring nut wrench extension “3”
90890-06513
Ring nut “1”
105 N·m (10.5 kgf·m, 77 lb·ft)
1
b
a
1
3
2
T
R
.
.
