Yamaha F75F - Tiller Handle (Tiller Handle Model)

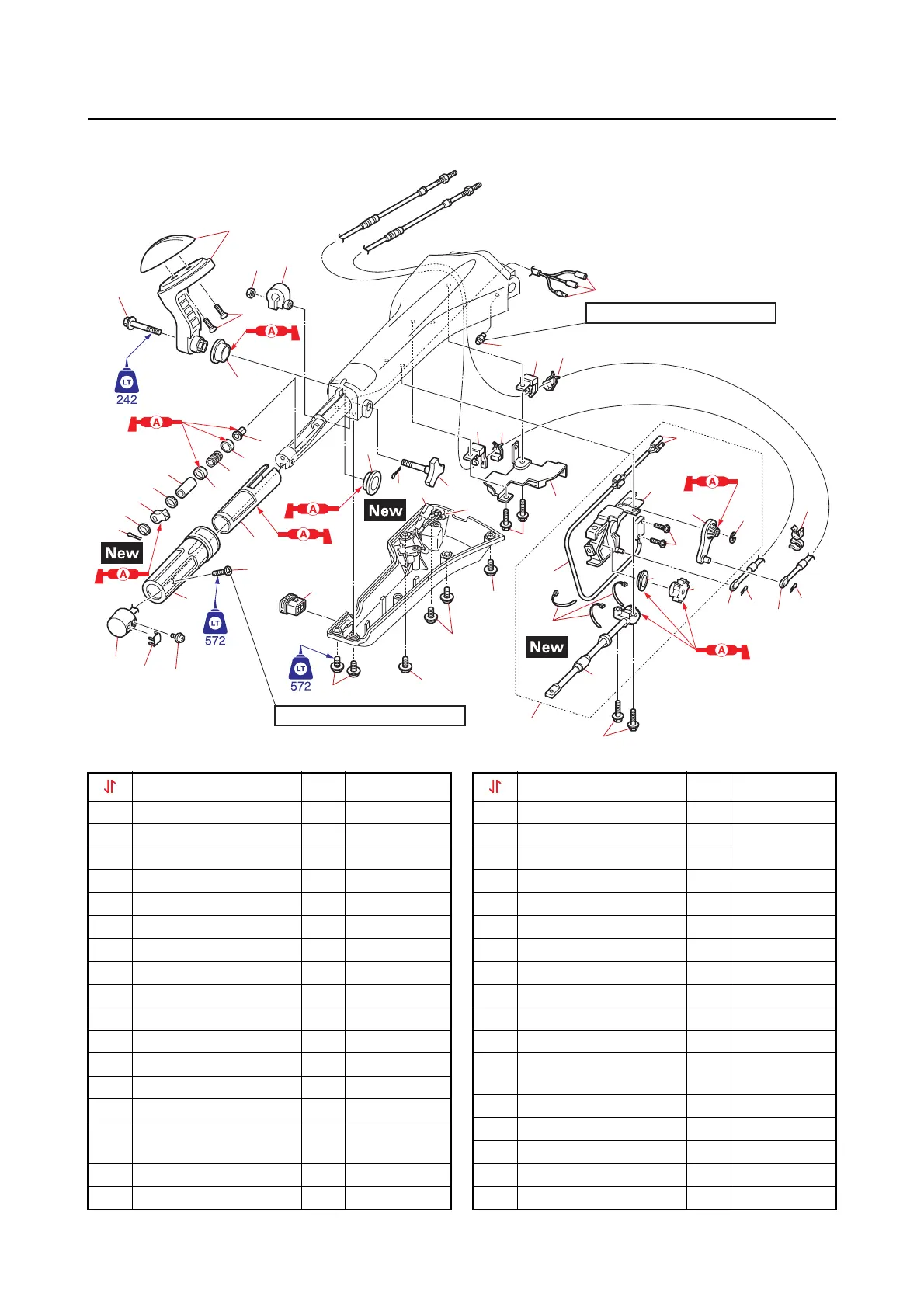

Tiller handle (tiller handle model)
9-2
Tiller handle (tiller handle model)
23
25
28
48
26
47
45
46
45
44
42
43
42
41
21
22
37
27
29
13
5
8
14
8
40
36
35
39
33
7
6
10
38
32
1
1
1
1
34
49
9
12
11
20
31
18
17
19
4
6
30
3.0 N·m (0.30 kgf·m, 2.2 lb·ft)
1.6 N·m (0.16 kgf·m, 1.2 lb·ft)
24
2
3
16
15
Part name Q’ty Remarks
1 Screw M6  16
mm 6
2 Coupler 1
3 Coupler 1
4 Cap 1
5 Grease nipple M6 1
6 Clip 2
7 Clamp 1
8 Clamp 2
9 Shift cable 1
10 Throttle cable 1
11 Bolt M6  14
mm 2
12 Bracket 1
13 Holder 1
14 Holder 1
15
Neutral switch connec-
tor
2
16 PTT connector 3
17 Screw M6  15
mm 1
18 Cap 1
19 PTT switch 1
20 Screw M5  22
mm 1
21 Throttle grip 1
22 Bushing 1
23 Bolt M8  40
mm 1
24 Screw M6  16
mm 2
25 Shift lever 1
26 Bushing 1
27 Cotter pin 1
28 Nut M6 1
29
Throttle friction
ad
juster
1
30 Bolt M6  30
mm 2
31 Control link assembly 1
32 Plastic tie 3
33 Screw M3  15
mm 2
34 Neutral switch 1
