Yamaha F75F - Page 263

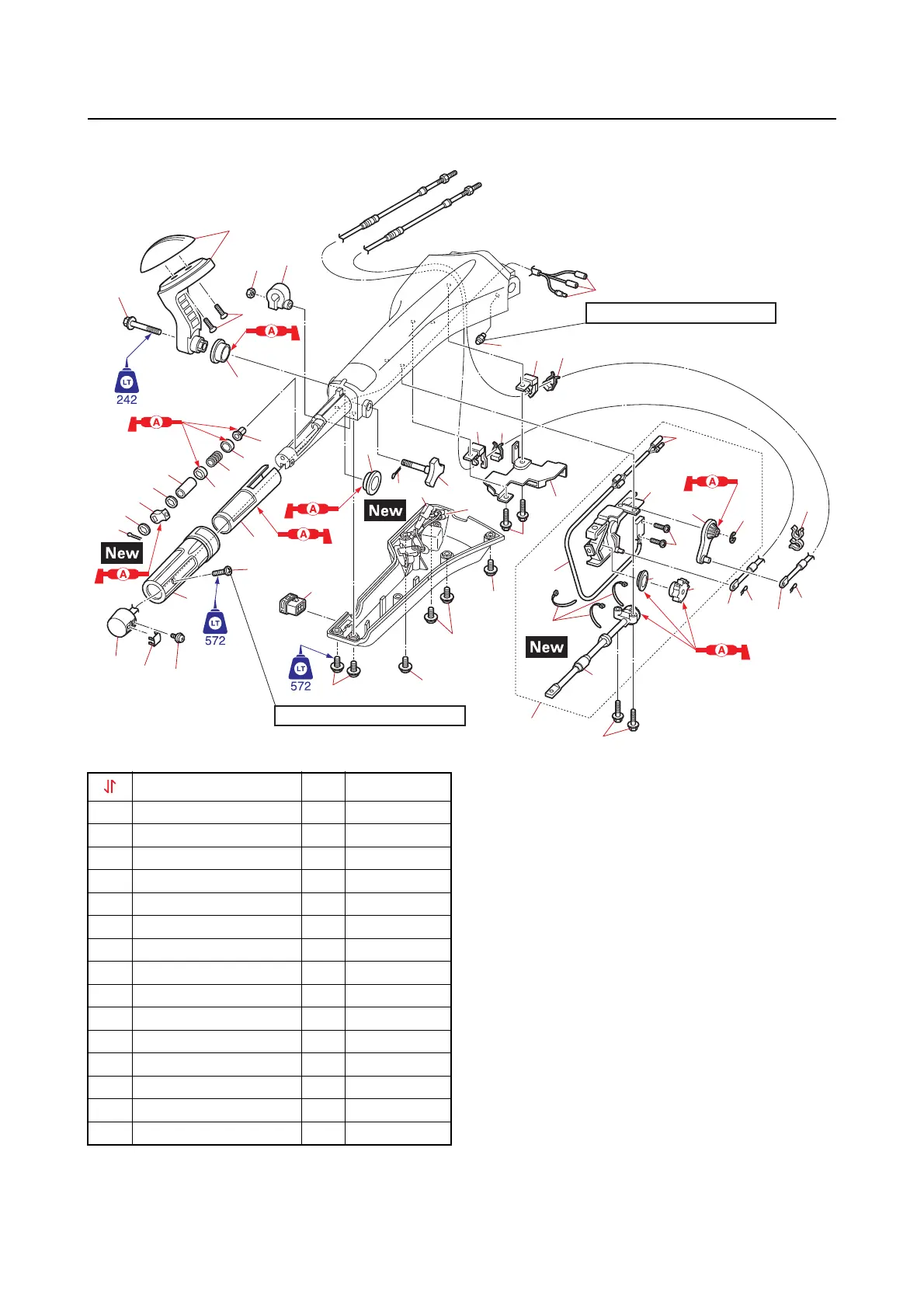

Tiller handle (tiller handle model)
9-3
23
25
28
48
26
47
45
46
45
44
42
43
42
41
21
22
37
27
29
13
5
8
14
8
40
36
35
39
33
7
6
10
38
32
1
1
1
1
34
49
9
12
11
20
31
18
17
19
4
6
30
3.0 N·m (0.30 kgf·m, 2.2 lb·ft)
1.6 N·m (0.16 kgf·m, 1.2 lb·ft)
24
2
3
16
15
Part name Q’ty Remarks
35 E-clip 1
36 Throttle lever 1
37 Bushing 1
38 Drive gear 1
39 Bushing 1
40 Shift link 1
41 Cotter pin 1
42 Washer 2
43 Plate 1
44 Collar 1
45 Retainer 2
46 Spring 1
47 Bushing 1
48 Friction piece 1
49 Throttle rod 1
