Yamaha F75F - Installing the Shift Rod; Installing the Water Pump

Drive shaft and lower case
8-17

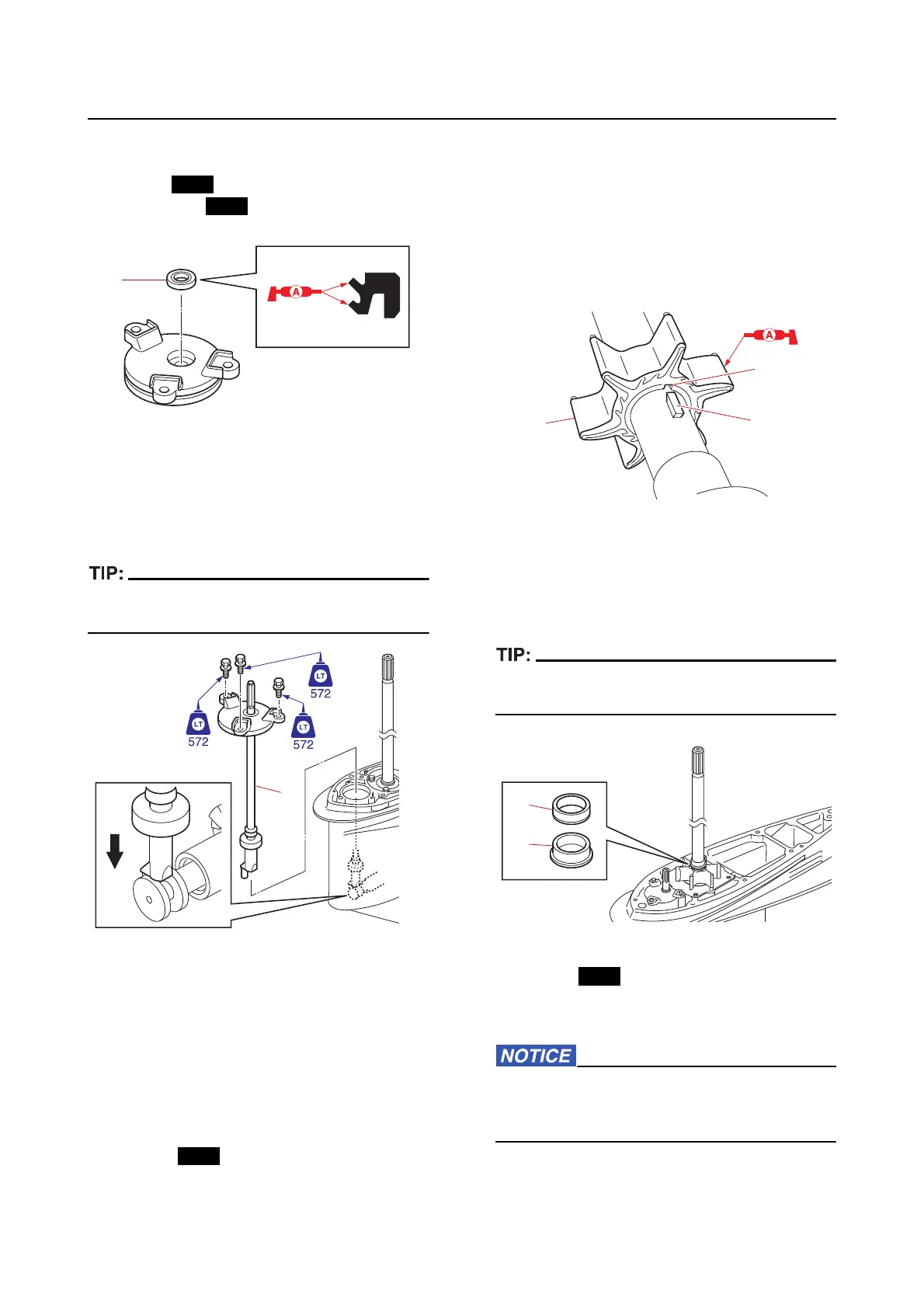

Installing the shift rod
1. Install:
• O-ring (to the shift rod plate)
• Oil seal “1”
2. Install:
• E-clip (to
the shift rod)
• Shift rod plate (to the shift rod)
• Shift rod “1”
• Shift rod plate bolt
Make sure to install the shift rod “1” in the prop-
er orientation.
3. Check:
• Shift rod movement
Not smooth  Repeat from step (1).
Installing the water pump
1. Install:
• Pla
te
• Rubber seal
• Dow
el pin
• Gask
et (to the outer plate cartridge)
• Outer plate cartridge
2. Install:
• Impeller key
• Impeller
a. Install the impeller key “1”.
b. Align the slot “a” in the impeller “2” with
the impeller key “1”, and then install
the impeller “2”.
3. Install:
• Washer
• Wave washer
• Spacer “1”
• Collar “2”
The spacer “1” and collar “2” should fit together
firmly.
4. Install:
• O-ring (to the water pump housing)
• Water pump housing “1”
• Water pump housing bolt
Do not turn the drive shaft counterclock-
wise. Otherwise, the water pump impeller
could be damaged.
New
New
1
1
New
1
2
a
1
2
New
