Yamaha F75F - Cylinder Block

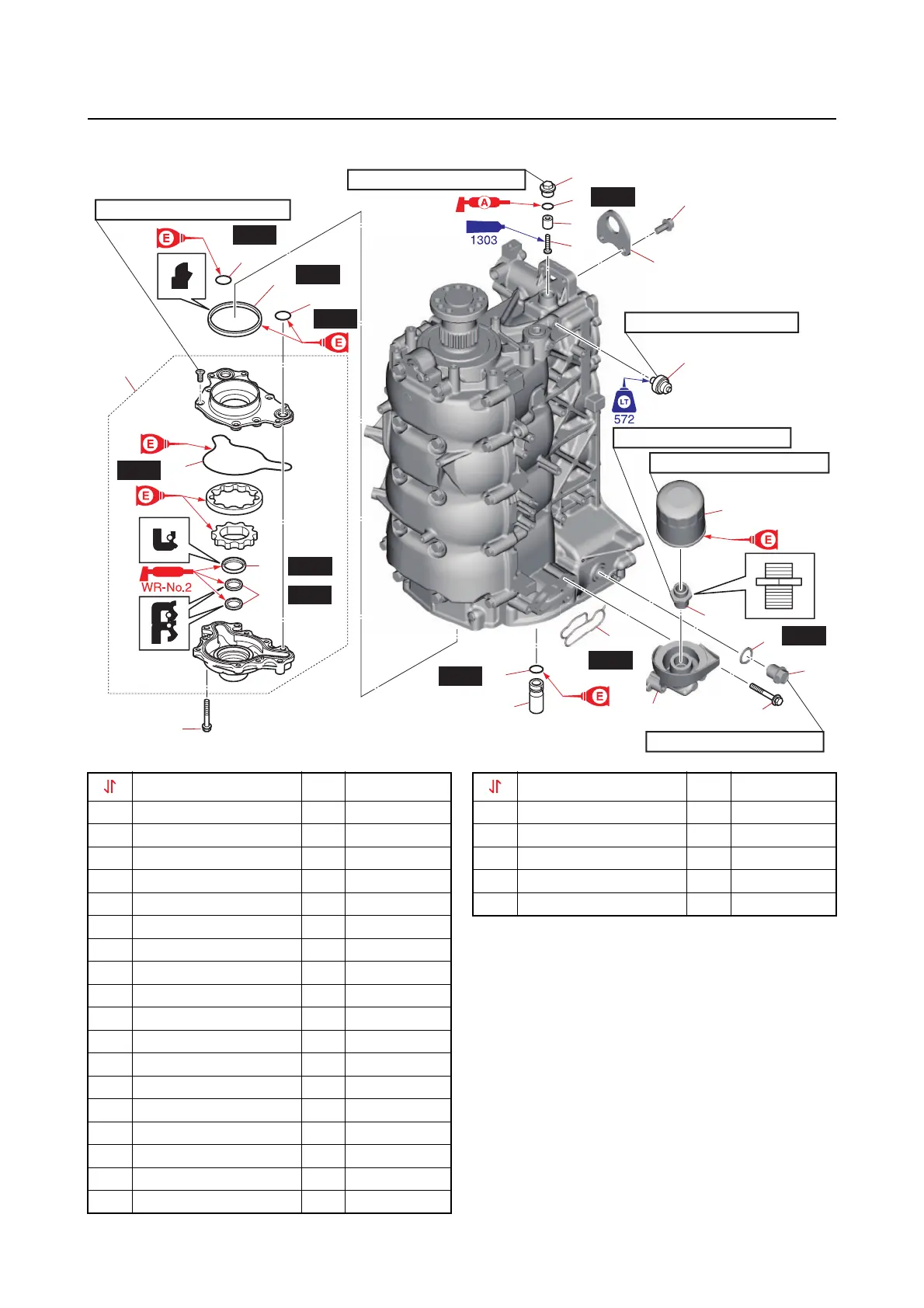

Cylinder block
7-42
Cylinder block
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
8 N·m (0.8 kgf·m, 5.9 lb·ft)
18 N·m (1.8 kgf·m, 13 lb·ft)
49 N·m (4.9 kgf·m, 36 lb·ft)
56 N·m (5.6 kgf·m, 41 lb·ft)
18 N·m (1.8 kgf·m, 13 lb·ft)
4.2 N·m (0.42 kgf·m, 3.1 lb·ft)
New
New
New
New
New
New
New
New
New
New
Part name Q’ty Remarks
1 Plug M16  10
mm 1
2 O-ring 1
3 Screw M5  26
mm 1
4 Anode 1
5 Bolt M8  20
mm 2
6 Engine hanger 1
7 Oil pressure switch 1
8 Plug M18  20
mm 1
9 Gasket 1
10 Oil filter 1
11 Union bolt M20 1
12 Bolt M6  40
mm 3
13 Bracket 1
14 Gasket 1
15 Relief valve 1
16 O-ring 1
17 Bolt M6  40
mm 4
18 Oil pump assembly 1
19 O-ring 2
20 Oil seal 1
21 Gasket 1
22 Oil seal 1
23 Oil seal 2
