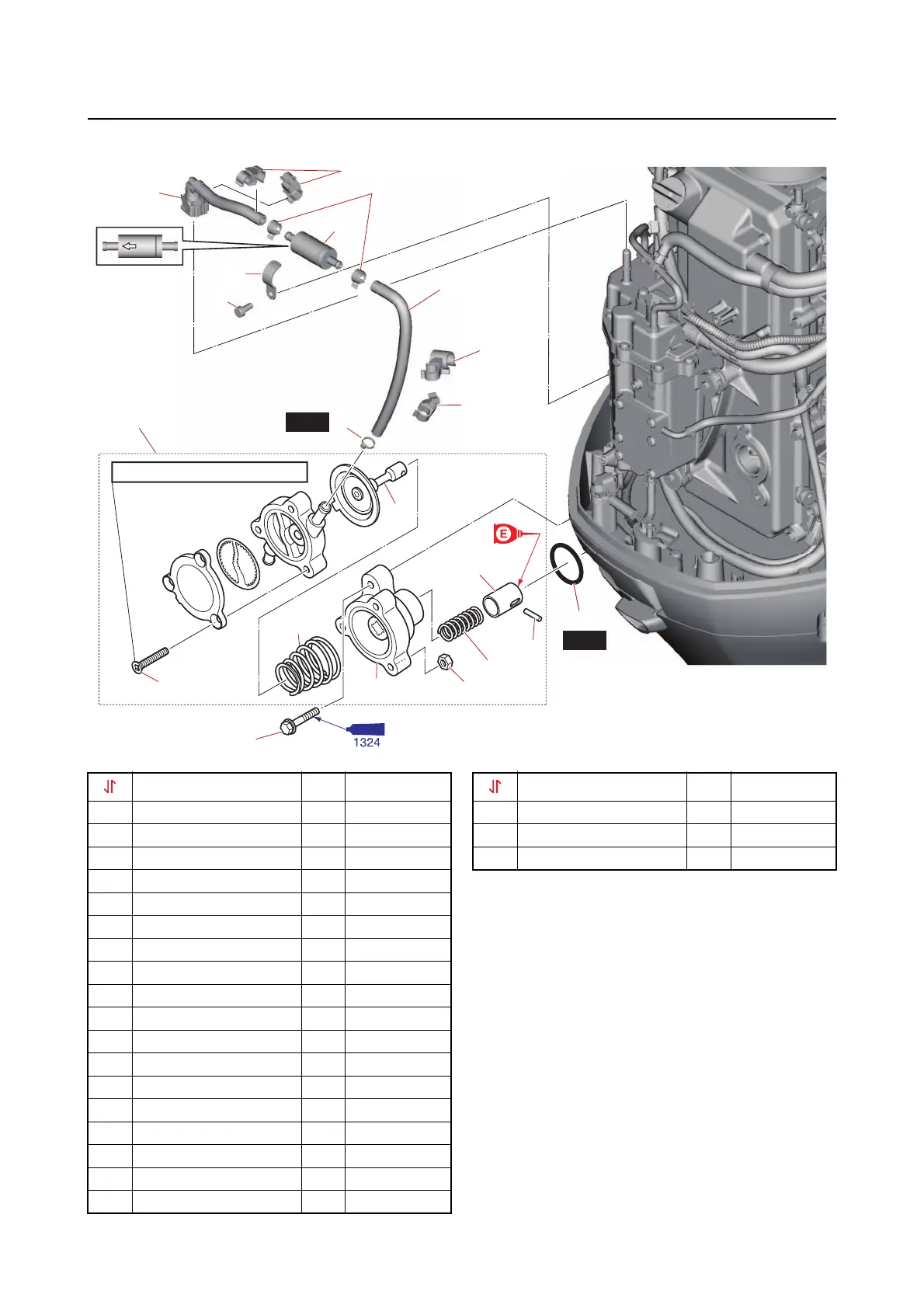

Yamaha F75F - Fuel Pump Assembly

Fuel pump assembly
6-8
Fuel pump assembly
1
2
3
4
5
6
7
8
9
10
16
18
15
12
20
17
13
21
11
14
19
13
4.2 N·m (0.42 kgf·m, 3.1 lb·ft)
New
New
Part name Q’ty Remarks
1 Clamp 1
2 Clamp 1
3 Clamp 2
4 Bolt M6  16
mm 1
5 Bracket 1
6 Plastic tie 1
7 Clip 2
8 Hose 1
9 Hose 1
10 Fuel strainer 1
11 Bolt M6  30
mm 2
12 Fuel pump assembly 1
13 O-ring 1
14 Screw M6  36
mm 3
15 Nut M6 3
16 Pin 1
17 Plunger 1
18 Spring 1
19 Diaphragm 1
20 Spring 1
21 Fuel pump body 1
Part name Q’ty Remarks
