Yamaha F75F - Assembling the Propeller Shaft Assembly; Assembling the Propeller Shaft Housing Assembly; Checking the Dog Clutch; Checking the Propeller Shaft Housing

Propeller shaft housing
8-8
Checking the dog clutch
1. Check:
• Dog clutch
• Cross pin
• Spring (in the slider)
• Ball (in the slider)
• Slider
Cracked/worn  Replace.
Checking the propeller shaft housing
1. Check:
• Propeller shaft
housing
Cracked/damaged  Replace.
Checking the reverse gear
1. Check:
• Teeth
and dogs of the reverse gear
Cracked/worn  Replace.

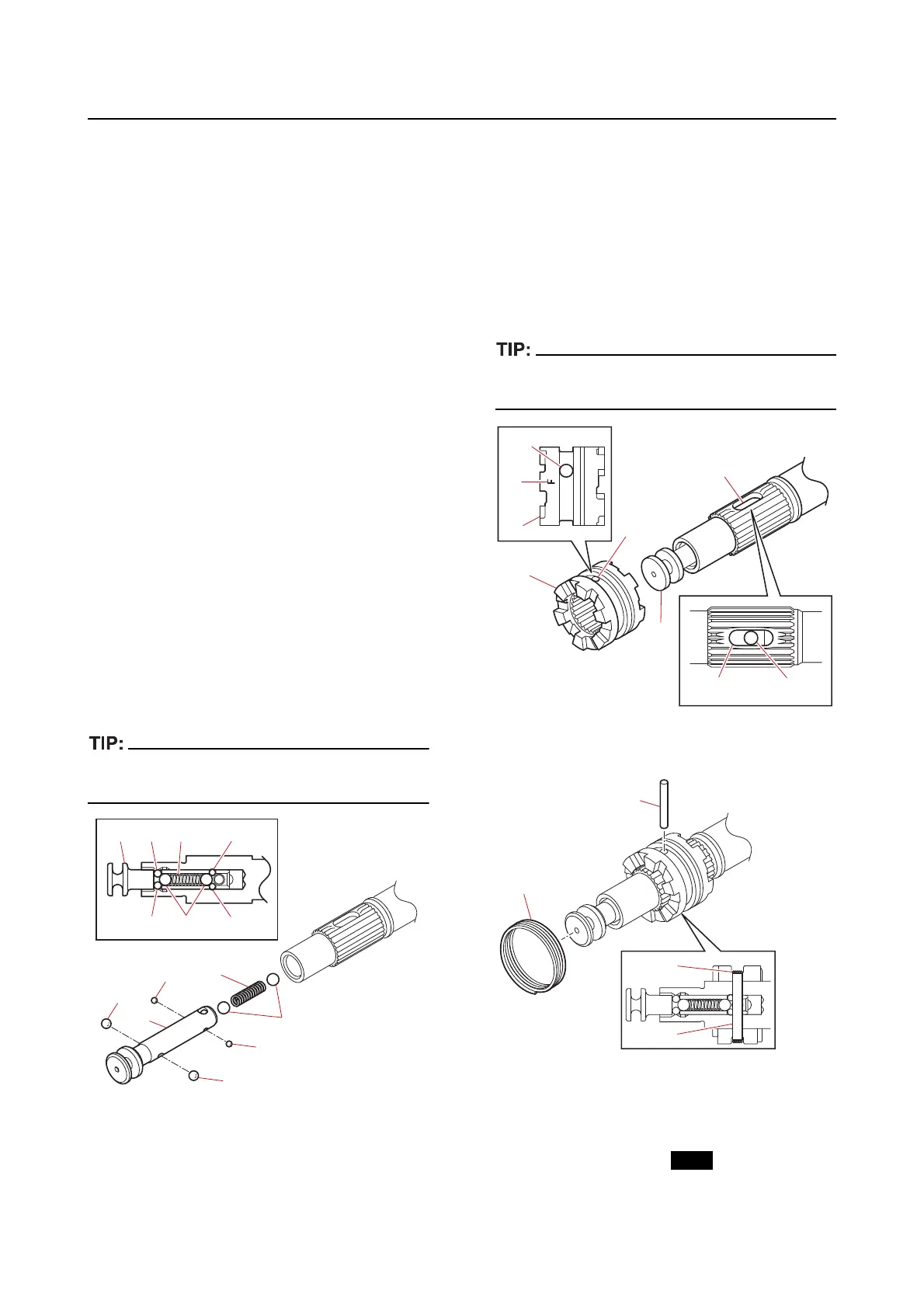

Assembling the propeller shaft as-
sembly
1. Install:
• Spring “1”
• Bal
l “2”
• Bal
l “3”
• Bal
l “4”
• Slider “5”
When installing the slider “5”, make sure that
the balls do not fall out of position.
2. Install:
• Dog clutch
• Cross pi
n
• Cross pin
ring
a. Install the dog clutch “1” so that the
hole “a”
in the dog clutch “1” and the
hole “b” in the propeller shaft are
aligned with the hole “c” in the slider
“2”.
Install the dog clutch “1” so that the “F” mark “d”
faces toward the slider “2” when installed.
b. Install the cross pin “1”, and then in-
stall the cross pin ring “2”.
Assembling the propeller shaft hous-
ing assembly
1. Install:
• Needle bearing
“1” (into the propel-
ler shaft housing)
1
3
3
5
14
42
3
3
5
4
4
2
2
1
1
a
a
b
b
c
d
2
2
1
1
New
