Yamaha F75F - Draining the Fuel; Installing the Vapor Separator; Removing the Vapor Separator

Vapor separator
6-14

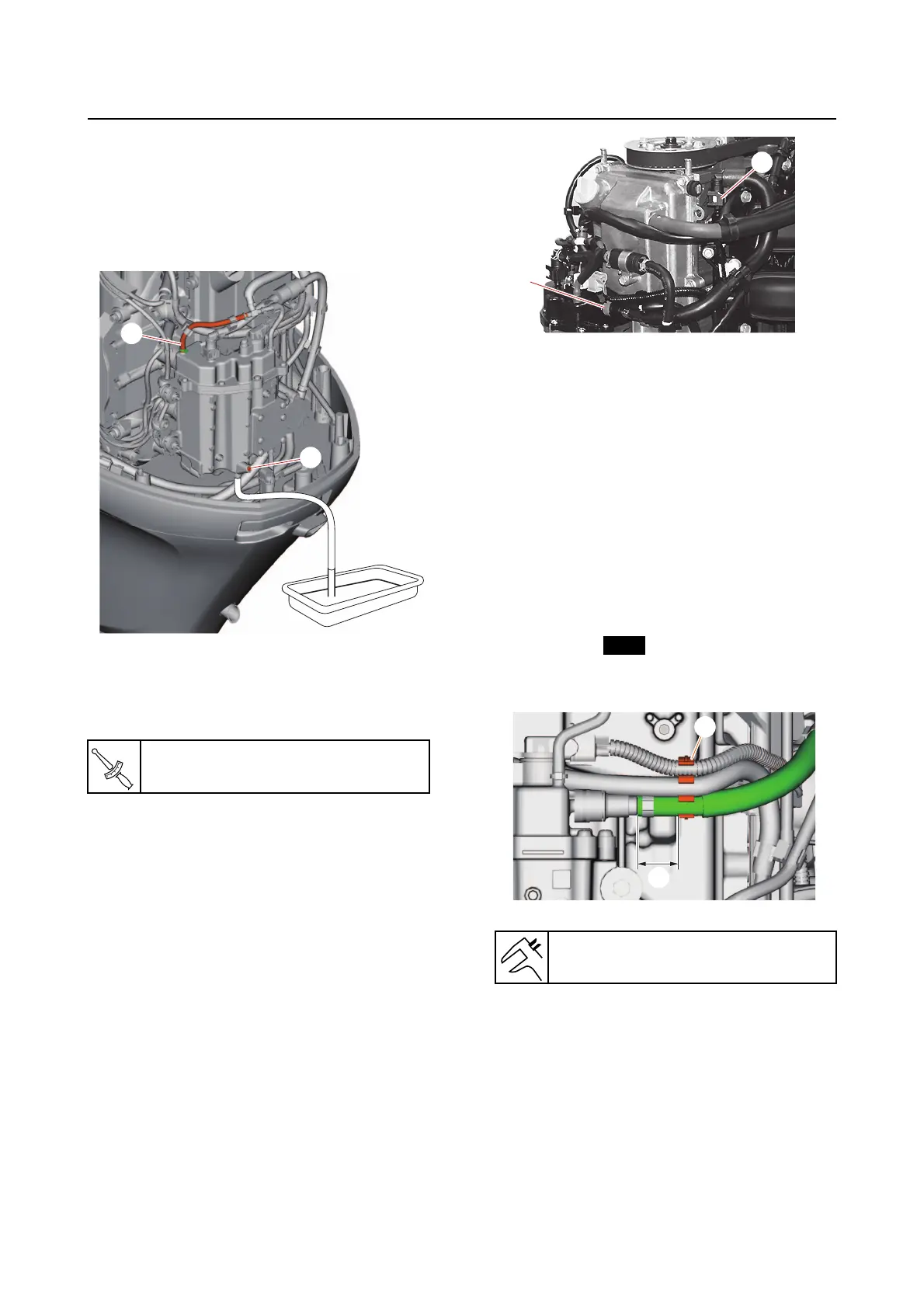

Draining the fuel
1. Drain:
• Fuel
a. Disconnect the vapor gas hose “1”.
b. Loosen the drain screw “2”.
c. Tighten the drain screw to the speci-
fied torque, and then connect the va-
por gas hose.
Removing the vapor separator
Cover the fuel components using a rag to pre-
vent fuel from spilling out.
1. Drain:
• Fuel
See “Draining the fuel” (6-14).
2. Disconnect:
• Quick connectors “1” and “2”
See “Disconnecting the quick connector”
(6-1).
Installing the vapor separator
1. Install:
• Plate
• Plate bolt
• G
rommet
• Collar
• Vapor separator
• Vapor separator nut
• Vapor separator bolt
• Clip (to the hose)
• Hose (to the nipple)
• Hose (to the vapor separator)
• Drain hose
• Plastic tie
• Clamp
• Clamp “1”
Drain screw
1.5 N·m (0.15 kgf·m, 1.1 lb·ft)
2
1
T
R
.
.
Specified length “a”
20 mm (0.79 in)
2
1
New
a
1
