Yamaha F75F - Power Unit Assembly

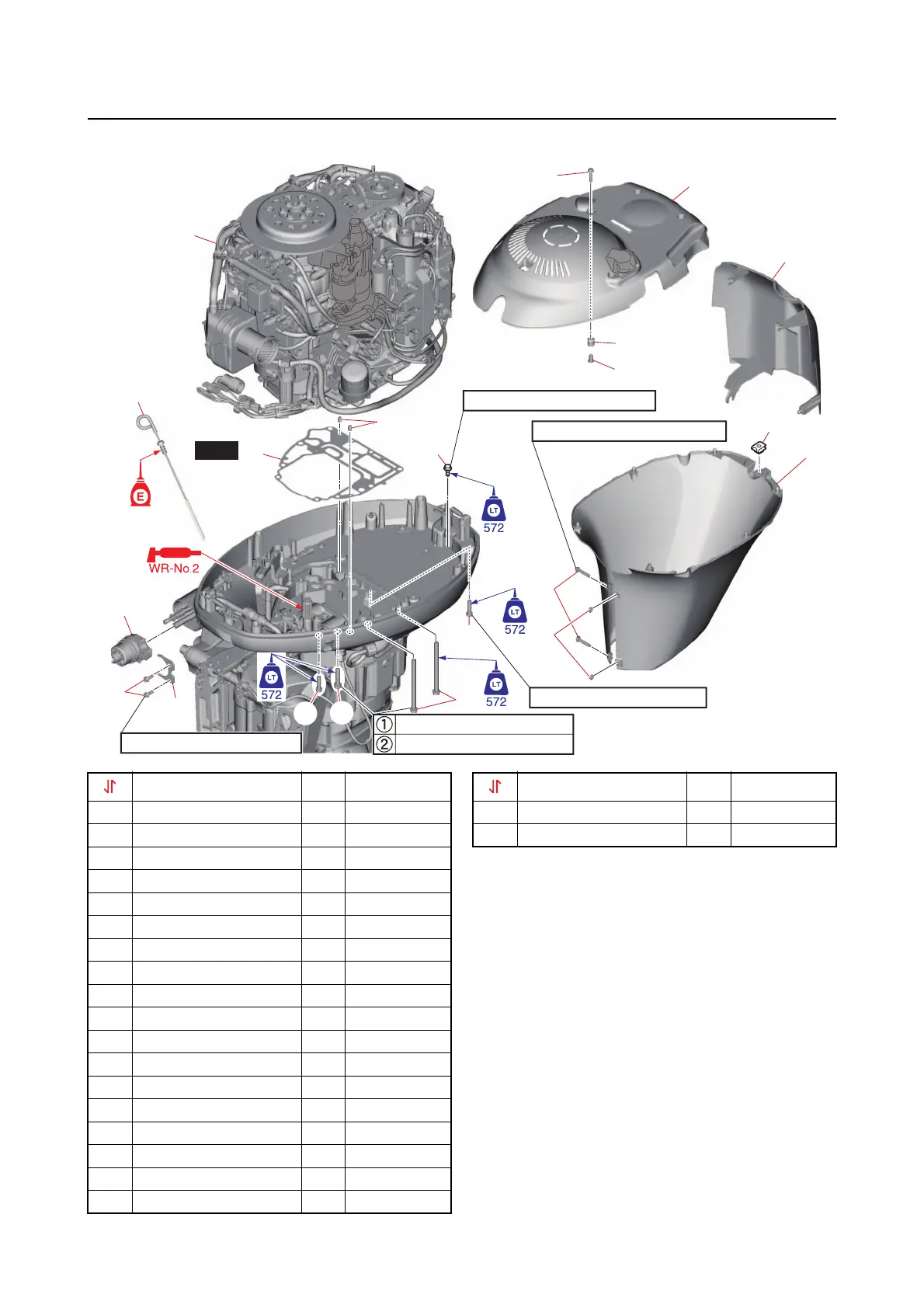

Power unit assembly
7-6
Power unit assembly
14
9
6
7
8
15
15
16
17
18
19
20
1
2
3
4
5
10
13
11
12
3.0 N·m (0.30 kgf·m, 2.2 lb·ft)
3.9 N·m (0.39 kgf·m, 2.9 lb·ft)
10 N·m (1.0 kgf·m, 7.4 lb·ft)
New
42 N·m (4.2 kgf·m, 31 lb·ft)
42 N·m (4.2 kgf·m, 31 lb·ft)
20 N·m (2.0 kgf·m, 15 lb·ft)
Part name Q’ty Remarks
1 Bolt M6  30
mm 1
2 Cover 1
3 Collar 1
4 Grommet 5
5 Cover 1
6 Bolt M6  20
mm 2
7 Grommet holder 1
8 Rigging grommet 1
9 Dipstick 1
10 Screw M6  20
mm 1
11 Screw M6  40
mm 2
12 Nut M6 2
13 Apron 1
14 Nut 1
15 Bolt M8  35
mm 4
16 Bolt M10  45
mm 2
17 Bolt M10  14
0 mm 4
18 Power unit assembly 1
19 Gasket 1
20 Dowel pin 2
Part name Q’ty Remarks
