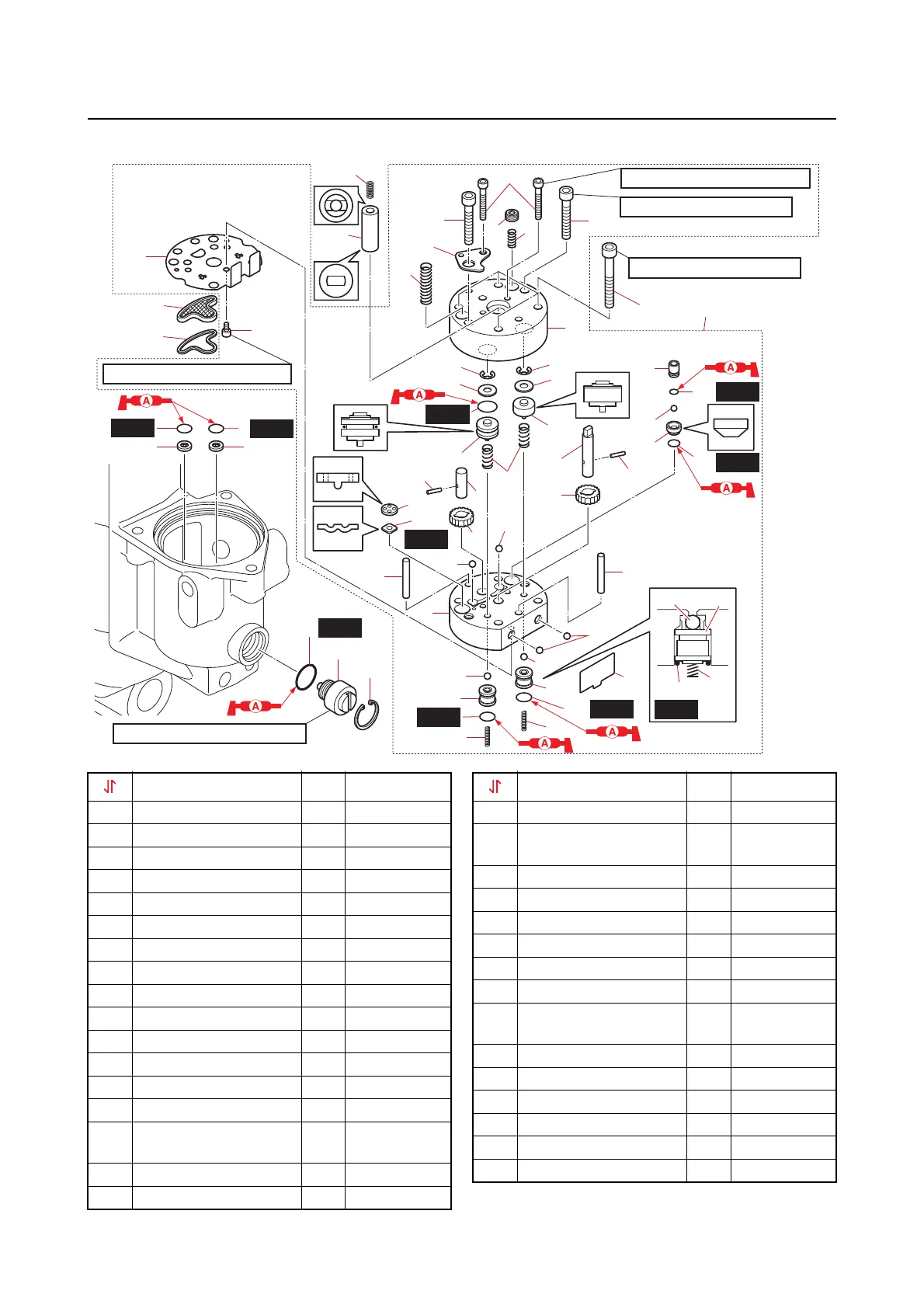

Yamaha F75F - PTT Gear Pump

PTT gear pump
9-35
PTT gear pump
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
2.0 N·m (0.20 kgf·m, 1.5 lb·ft)
6
20
21
21
23
34
35
44
44
45
45
42
43
41
37
38
15
39
39
14
19
19
18
18
16
16
17
17
7
13
12
10
11
8
8
9
9
3
2
1
33
33
22
5 N·m (0.5 kgf·m, 3.7 lb·ft)
5 N·m (0.5 kgf·m, 3.7 lb·ft)
46
47
36
24
25
5
4
48
28
27
29
40
31
30
32
26
17
16
19 18
New
New
New
New
New
New
New
New
New
New
Part name Q’ty Remarks
1 Circlip 1
2 Manual valve M12 1
3 O-ring 1
4 Spring 1
5 Shaft 1
6 Bolt M5  45
mm 4
7 Gear pump assembly 1
8 O-ring 2
9 Filter 2
10 Filter 1
11 Plate 1
12 Bolt M3  5 mm 1
13 Relief valve seat 1
14 Manual release plate 1
15
Ball 3.95 mm (0.16 in)
*1
2
16 Spring 2
17 O-ring 2
18 Adapter 2
19
Ball 3.95 mm (0.16 in)
*1
2
20 Bolt M3  25
mm 2
21 Bolt M5  30
mm 2
22 Cap 1
23 Spring 1
24 Valve lock screw M8 1
25 Spring 1
26
Gear housing (upper
side)
1
27 Shaft 1
28 Pin 1
29 Driven gear 1
30 Shaft 1
31 Pin 1
32 Drive gear 1
