Yamaha F75F - Removing the Power Unit

Power unit assembly
7-7
Removing the power unit
Cover the fuel components using a rag to pre-
vent fuel from spilling out.

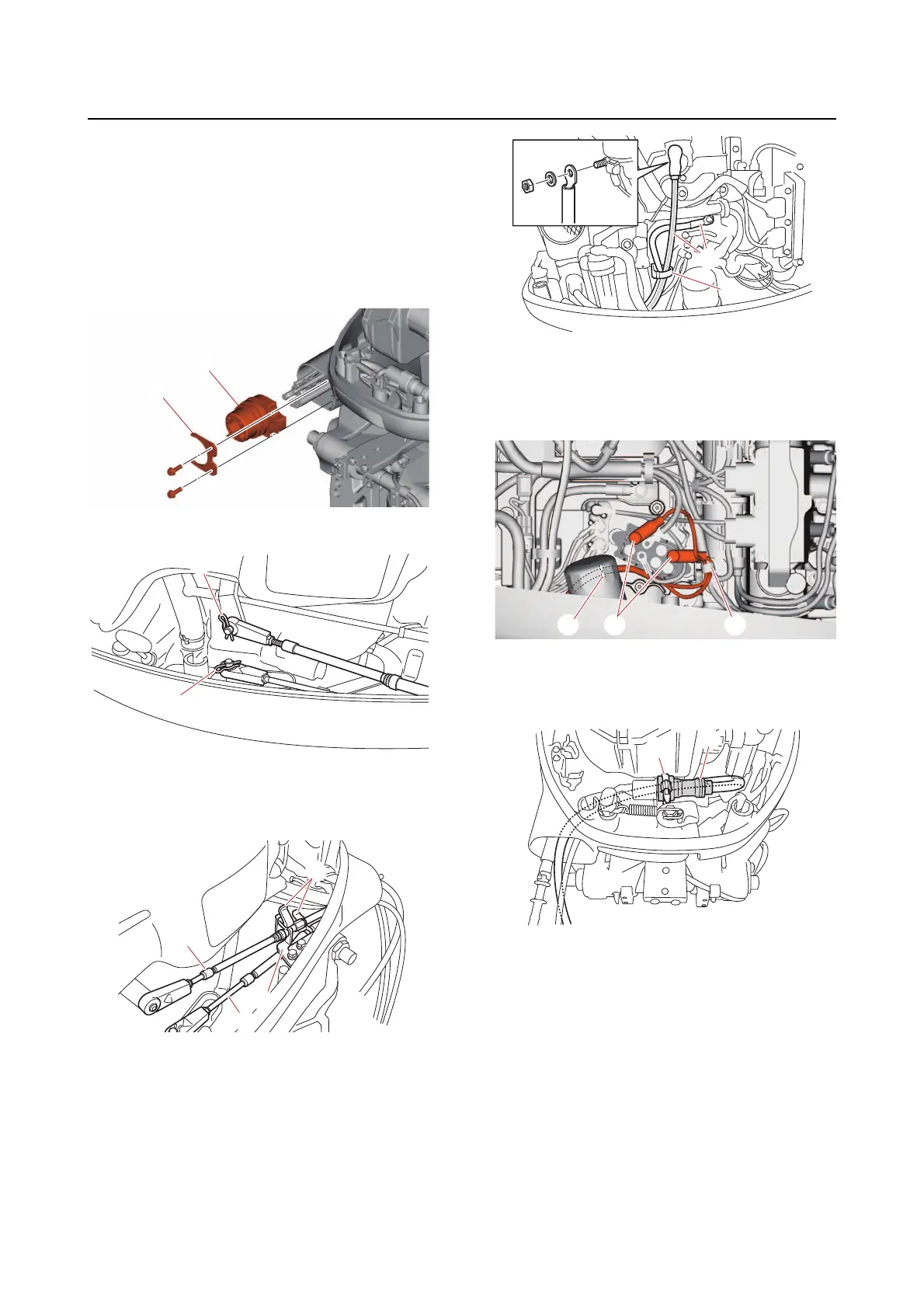

1. Remove:
• Power unit assembly
a. Remove the grommet holder “1” and
rigging grommet
“2”.
b. Remove the clips “1”.
c. Disengage the cable clamps “1”, and
then remove the throttle cable “2” and
shift cable “3” from the bracket “4”.
d. Release the holder “1”, and then dis-
connect the battery cable “2”.
e. Remove the clamps “1” and “2” from
the PTT motor leads.
f. Disconnect the PTT motor leads “3”.
g. Release the holder “1”, and then dis-
connect the main wire harness cou-
pler “a”.
h. Remove the clamps “1” from the wire
harness.
2
1
1
1
1
4
2
3
2
1
31
2
a
1
