Yamaha F75F - Assembling the Vapor Separator; Checking the Vapor Separator

Vapor separator and high-pressure fuel pump
6-16

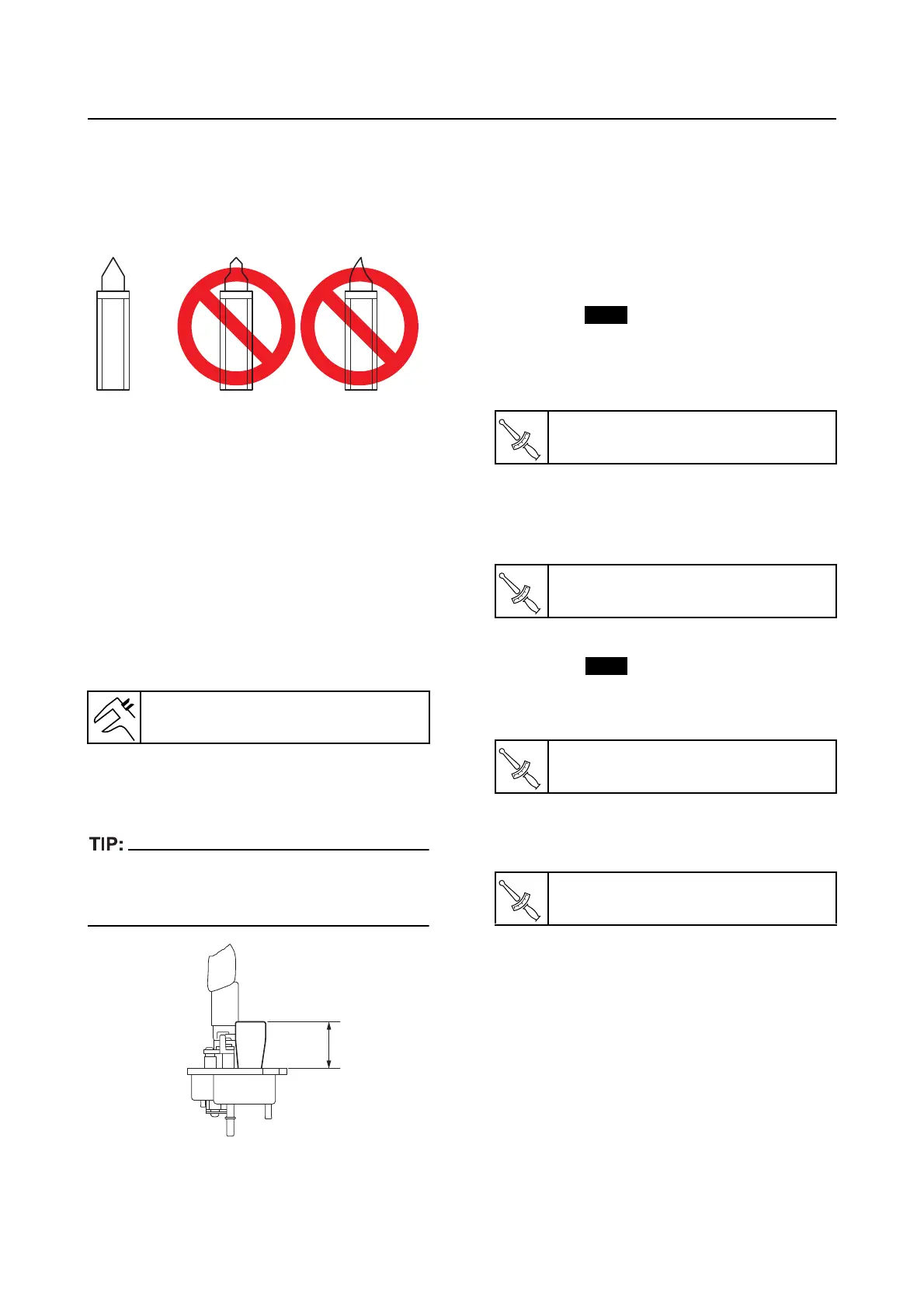

Checking the vapor separator
1. Check:
• Needle
valve
Bent/worn  Replace the float.
2. Check:
• Float
Deteriorated  Replace.
3. Check:
• Filter
Dirt or residue  Clean.
4. Measure:
• Float height
Out of specification  Replace the float.
a. Place the cover assembly upside
down,
and then measure the float
height “a”.
When measuring the float height, the float
should be resting on the needle valve. Do not
press the float.
Assembling the vapor separator
1. Install:
• Flo
at
• Pressu
re regulator
• Lead
• High-pressure fuel pump
• Filter
• Cushio
n rubber
• Gasket (to the vapor separator cov-
er)
• Vapor separator cover
• Vapor separator cover screw
2. Install:
• Anode
• Anode scre
w
3. Install:
• Gasket
• Fuel cooler
cover
• Fuel
cooler cover screw
4. Install:
• Drain screw
Float height
50.5 mm (1.99 in)
a
Vapor separator cover screw
2.9 N·m (0.29 kgf·m, 2.1 lb·ft)
Anode screw
2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
Fuel cooler cover screw
6 N·m (0.6 kgf·m, 4.4 lb·ft)
Drain screw
1.5 N·m (0.15 kgf·m, 1.1 lb·ft)
