Yamaha F75F - Assembling the Tiller Handle

Tiller handle (tiller handle model)
9-4

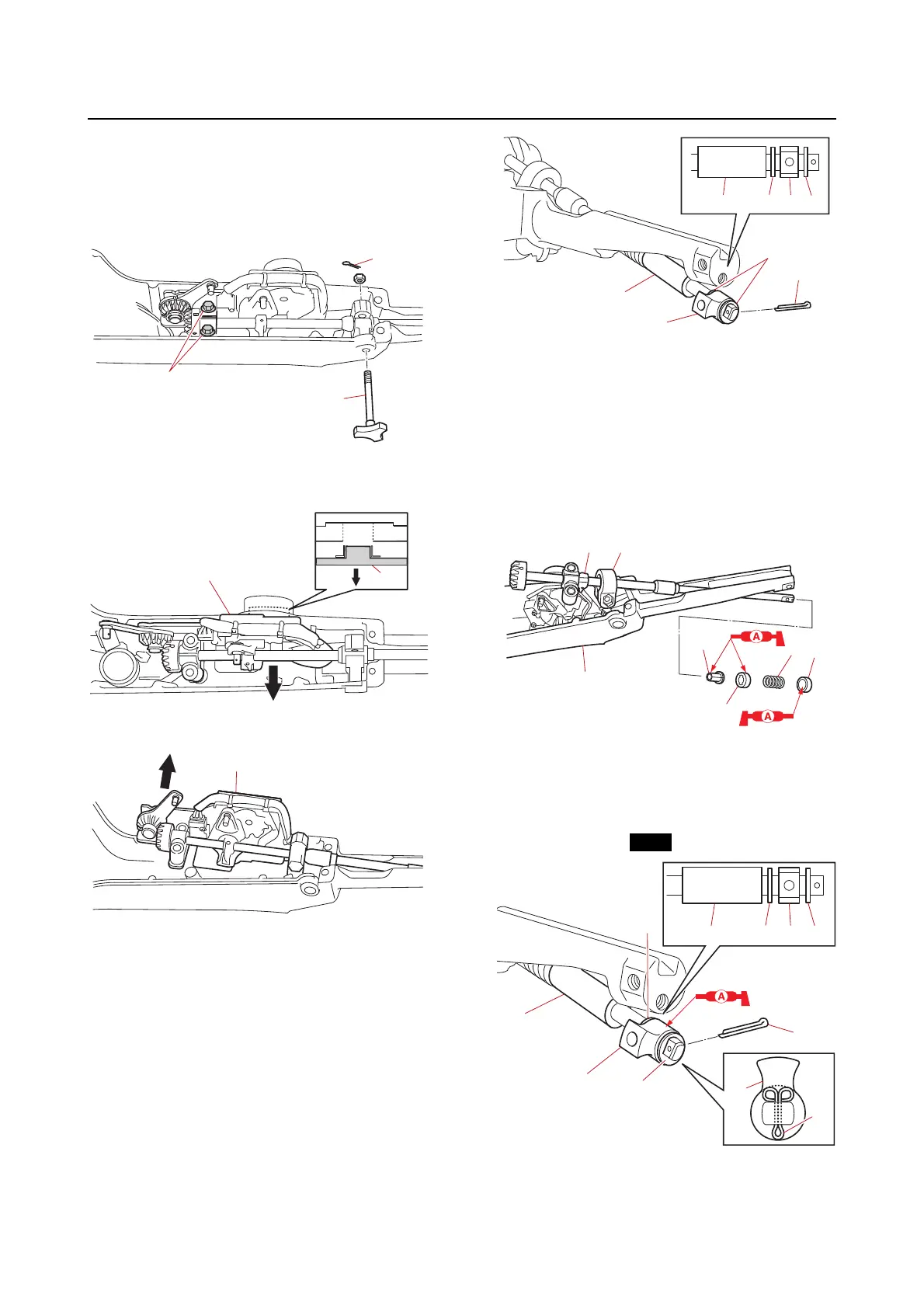

Disassembling the tiller handle
1. Remove:
• Cotter pin “1”
• Thr
ottle friction adjuster “2”
• Bol
t “3”
2. Pull out the control link assembly “1”, and
then lift it up.
3. Remove:
• Cotter pin “1”
• Washer “2”
• Pla
te “3”
• Coll
ar “4”
Assembling the tiller handle
1. Pass the throttle rod “1” through the friction
piece “2” and tiller handle “3”.
2. Install:
• Bushing “4”
• Retainer “5”
• Spring “6”
3. Install:
• Collar “1”
• Washer “2”
• Plate “3”
• Cotter pin “4”
