Yamaha F75F - Installing the Throttle Control Lever

Throttle control lever
7-24

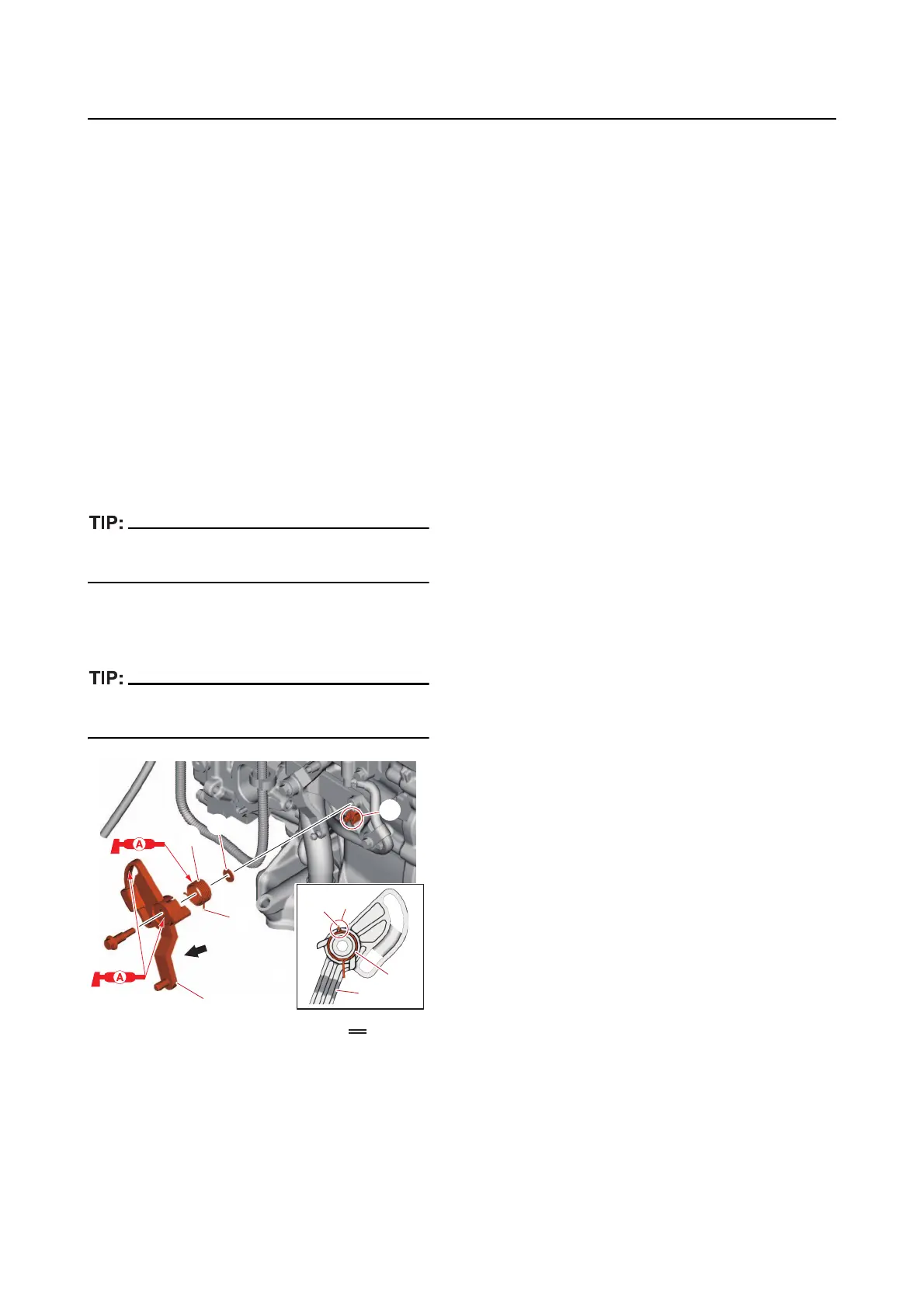

Installing the throttle control lever
1. Install:
• Holder
• Brack
et
• Bracket bolt
• Bushing (to the throttle co
ntrol lever)
• Washer
• Throttle
control lever
• Throttle
control lever bolt
2. Install:
• Spring
• Washer
• Accelerator cam
• Accelerator cam bolt
a. Install the spring “1” to the accelerator
cam “2”.
Fit the end “a” of the spring “1” into the slit “b”
in the accelerator cam “2”.
b. Install the washer “3”, spring “1”, and
accelerator cam “2”.
Fit the end “c” of the spring “1” between the
bosses “d” on the bracket.
2
1
1
2
b
a
3
d
c
A
A
