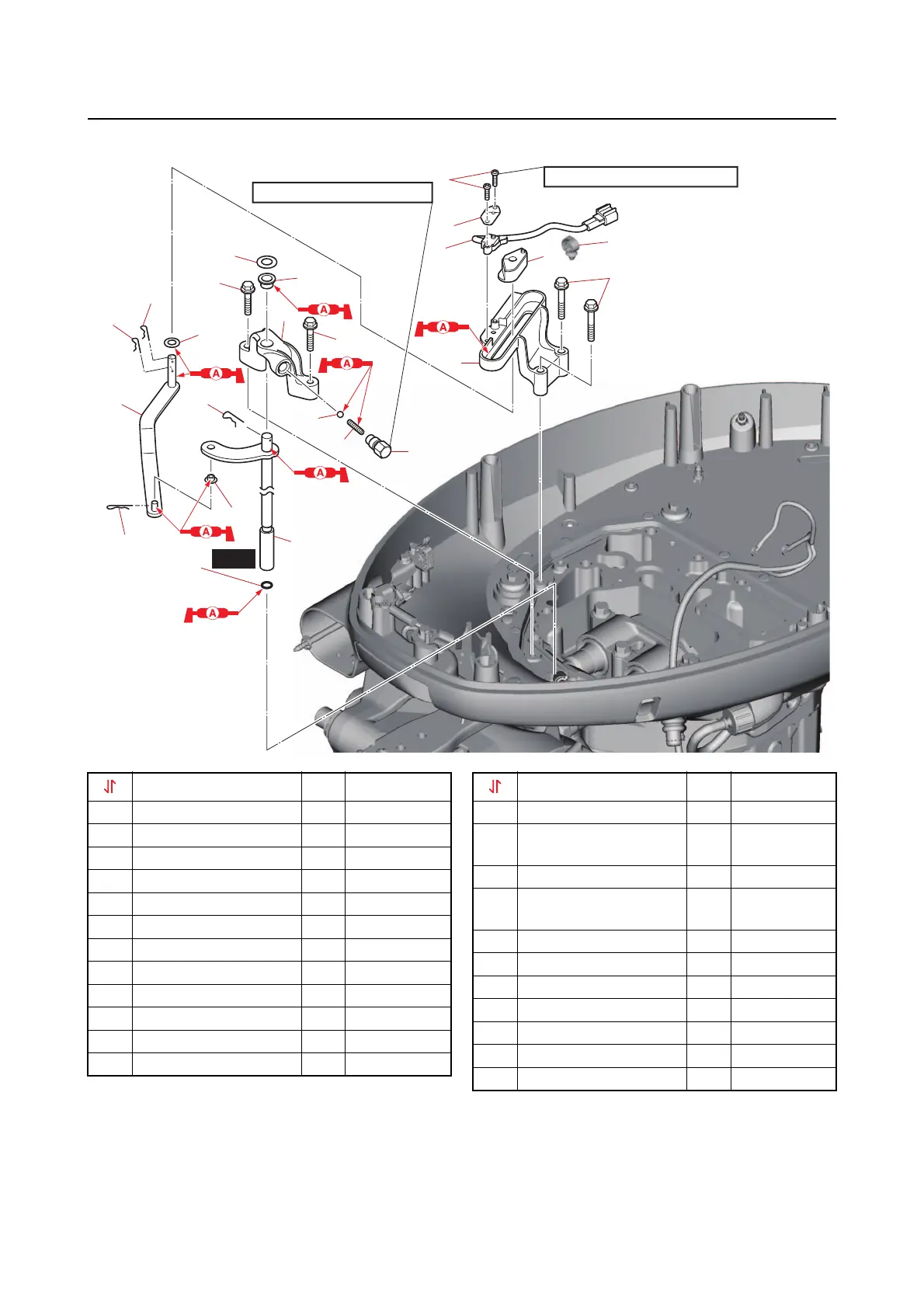

Shift rod and shift bracket
9-9
Shift rod and shift bracket
*1: Reference data
5
3
4
2
11
7
9
10
12
8
18
17
21
16
15
14
19
23
20
20
13
22
18 N·m (1.8 kgf·m, 13 lb·ft)
2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
6
1
New
Part name Q’ty Remarks
1 Holder 1
2 Clip 1
3 Screw M4  16
mm 2
4 Plate 1
5 Shift position switch 1
6 Clip 1
7 Bushing 1
8 Bolt M6  40
mm 2
9 Bracket 1
10 Washer 1
11 Clip 1
12 Shift lever 1
13 Bushing 1
14
Shift rod detent bolt
M1
2  16 mm
1
15 Spring 1
16
Ball 6.32 mm (0.25 in)
*1
1
17 Clip 1
18 Washer 1
19 Bushing 1
20 Bolt M6  30
mm 2
21 Bracket 1
22 Shift rod 1
23 O-ring 1
