Yamaha F75F - Specification Data; External Dimensions

Specification data
1-1
Specification data
For specification data, see Appendix, “Specification” (A-1).

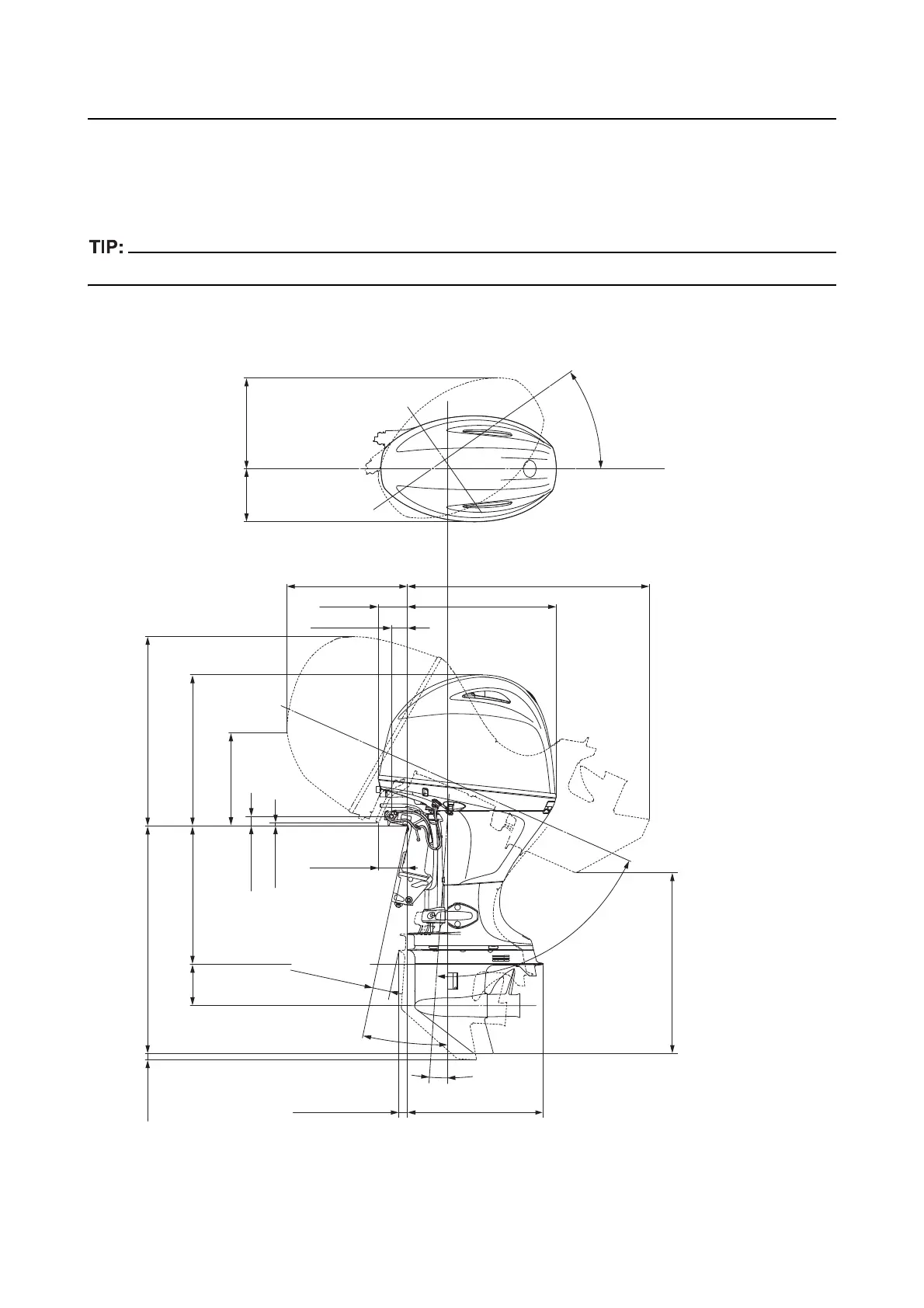

External dimensions
The dimension values may include reference values.
F75FET, F100GET
*1. Motor transom height
*2. Fully tilt-up angle (Not tilt support angle)
mm (in)
544
( 21.4)
120 (4.7) 683 (26.9)
75 (3.0)
L:1006 (39.6)
X:1122 (44.2)
878
(34.6)
476
(18.7)
693
(27.3)
191 (7.5)
L:929 (36.6) X:1056 (41.6)
31
(1.2)
L:516 (20.3) X:643 (25.3)
H*1
631 (24.8)
L:32
(1.3)
X:41 (1.6)
L:764
(30.1)
X:840
(33.1)
12°
135 (5.3)
L:63
(2.5)
X:81
(3.2)
45 (1.8)
15
(0.6)
70° *2
244 (9.6) 411 (16.2)
35°
4°
