Yamaha F75F - Vapor Gas Hose and Blowby Hose

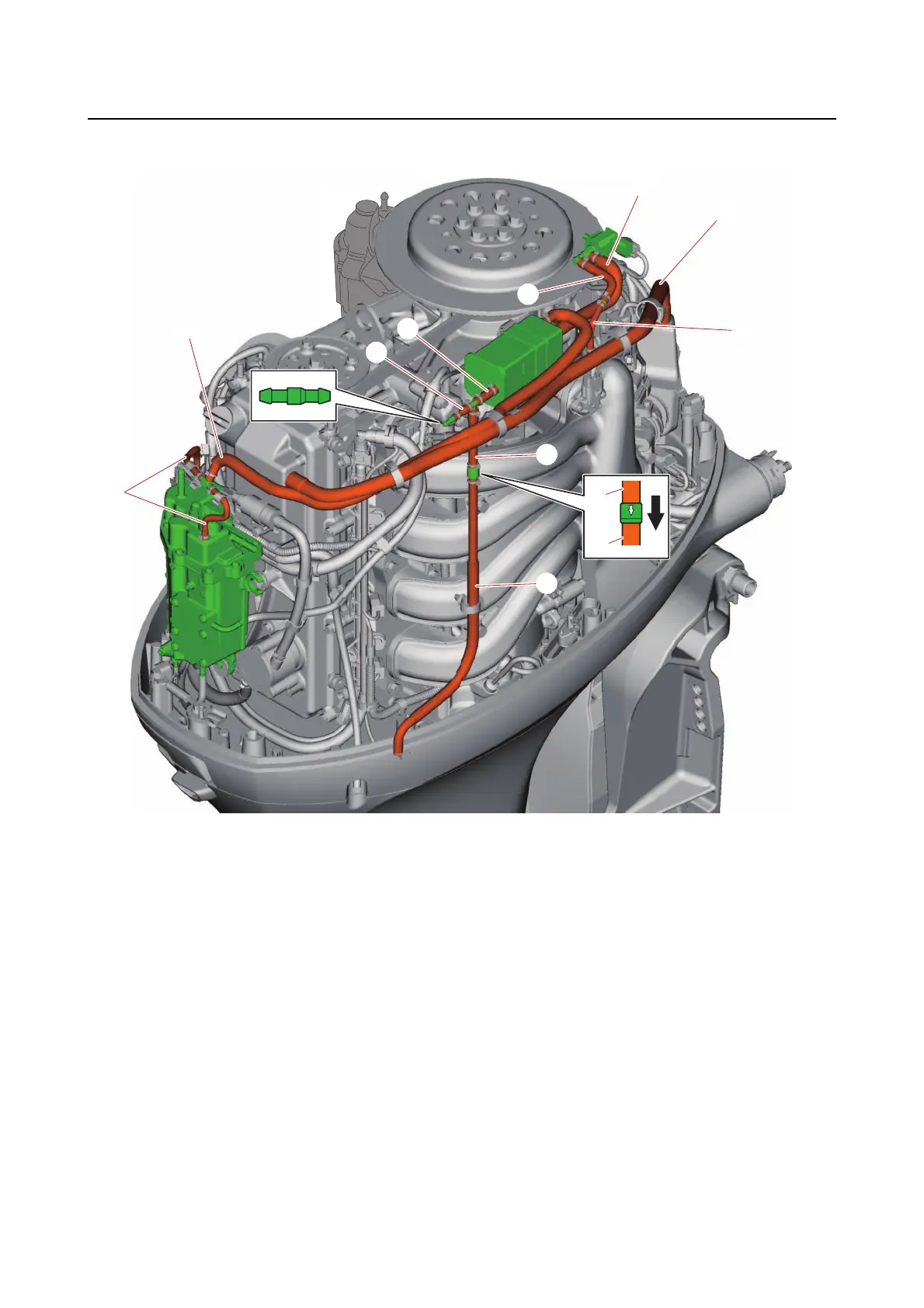

Hose routing
2-27
Vapor gas hose and blowby hose
1
2
3
4
5
6
7
8
9
10
9
10
1. Cylinder head cover to intake silencer
2. Vapor separator to joint
3. Joint to canister tank port
4. Canister purge port to vapor shut-off
va
lve
5. Vapor shut-off valve to joint
6. Joint to intake manifold
7. Canister atmospheric port to joint
8. Check valve to joint
9. Joint to check valve
10. Check valve to bottom cowling
