Yamaha F75F - Checking the Oil Strainer

Oil pan and exhaust guide
9-19
Checking the oil pan and exhaust
guide
1. Clean:
• Removed parts
2. Check:
• Exhaust guide
• Oil pan
• Muffler
Corroded/cracked  Replace.
Checking the oil strainer
1. Check:
• Oil strai
ner
Dirt/residue  Clean.
Checking the PCV
1. Check:
• PC
V
Damaged/worn  Replace.
• Grommet
Deformed  Replace.
• Spring
Deformed/fatigued  Replace.
Checking the exhaust guide anode
1. Check:
• Anode
Eroded (1/2 or more)  Replace.
There is grease, oil, or scales  Clean.
Do not apply grease, oil, or paint to the an-
ode.
Assembling the oil pan and exhaust
guide
1. Install:
• Gask
et (to the oil strainer)
• Oil strai
ner
• Oil strainer bolt
2. Install:
• Gasket (to the exhaust guide)
• Pipe
• Dowel pin
• Oil pan

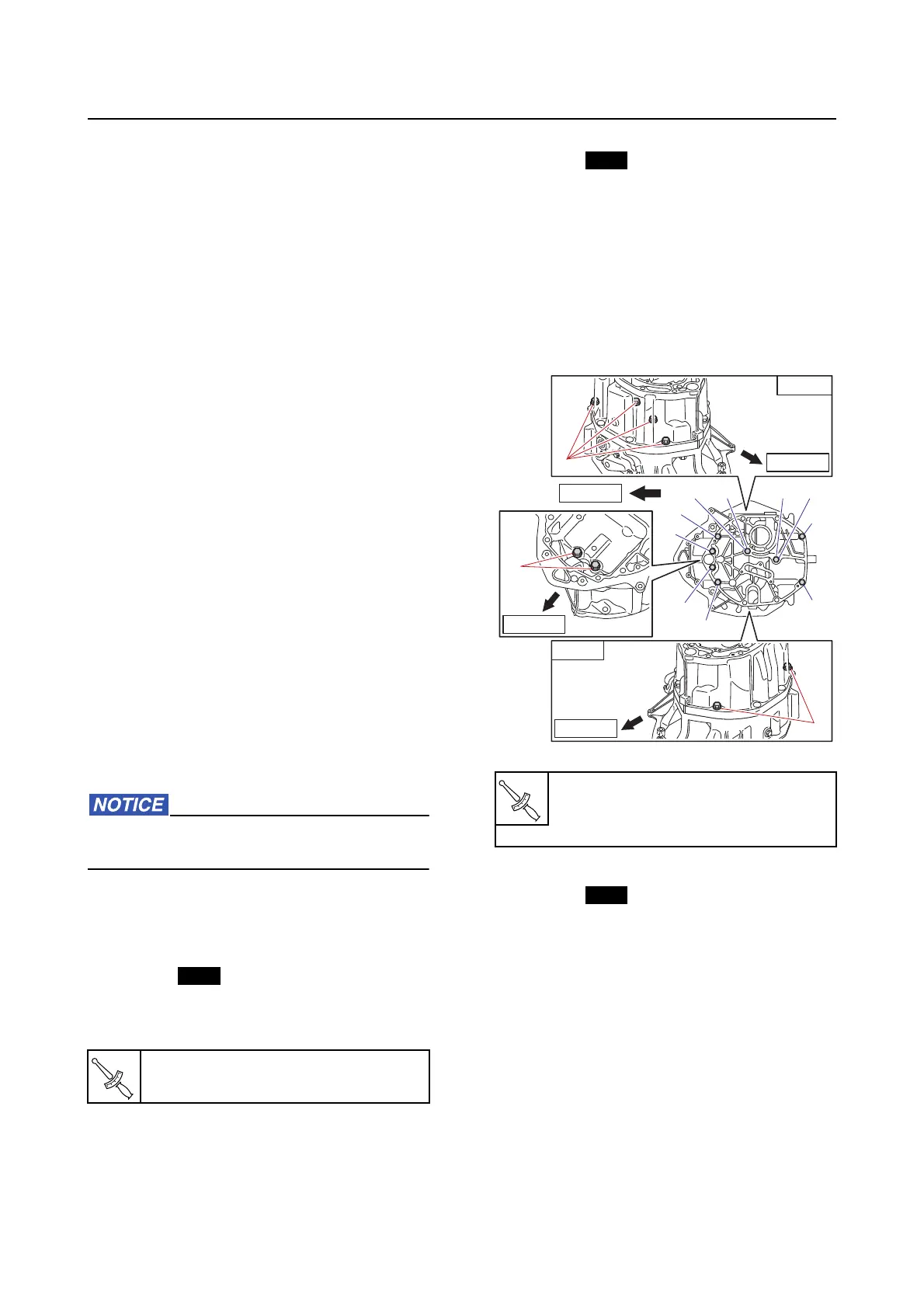

3. Tighten:
• Oil pan bolt
a. Tighten the oil pan bolts “1” to the
specified
torque in 2 stages and in the
order [1], [2], and so on.
4. Install:
• Gasket (to the oil pan)
• Dowel pin
• Plate
Oil strainer bolt
12 N·m (1.2 kgf·m, 8.9 lb·ft)
New
T
R
.
.
Oil pan bolt “1”
1st: 42 N·m (4.2 kgf·m, 31 lb·ft)
2nd: 42 N·m (4.2 kgf·m, 31 lb·ft)
New
STBD
PORT
Front
Front
Front
Front
[2][1]
[4]
[3]
[6]
[5]
[8][7]
[9]
[10]
1
1
1
T
R
.
.
New
