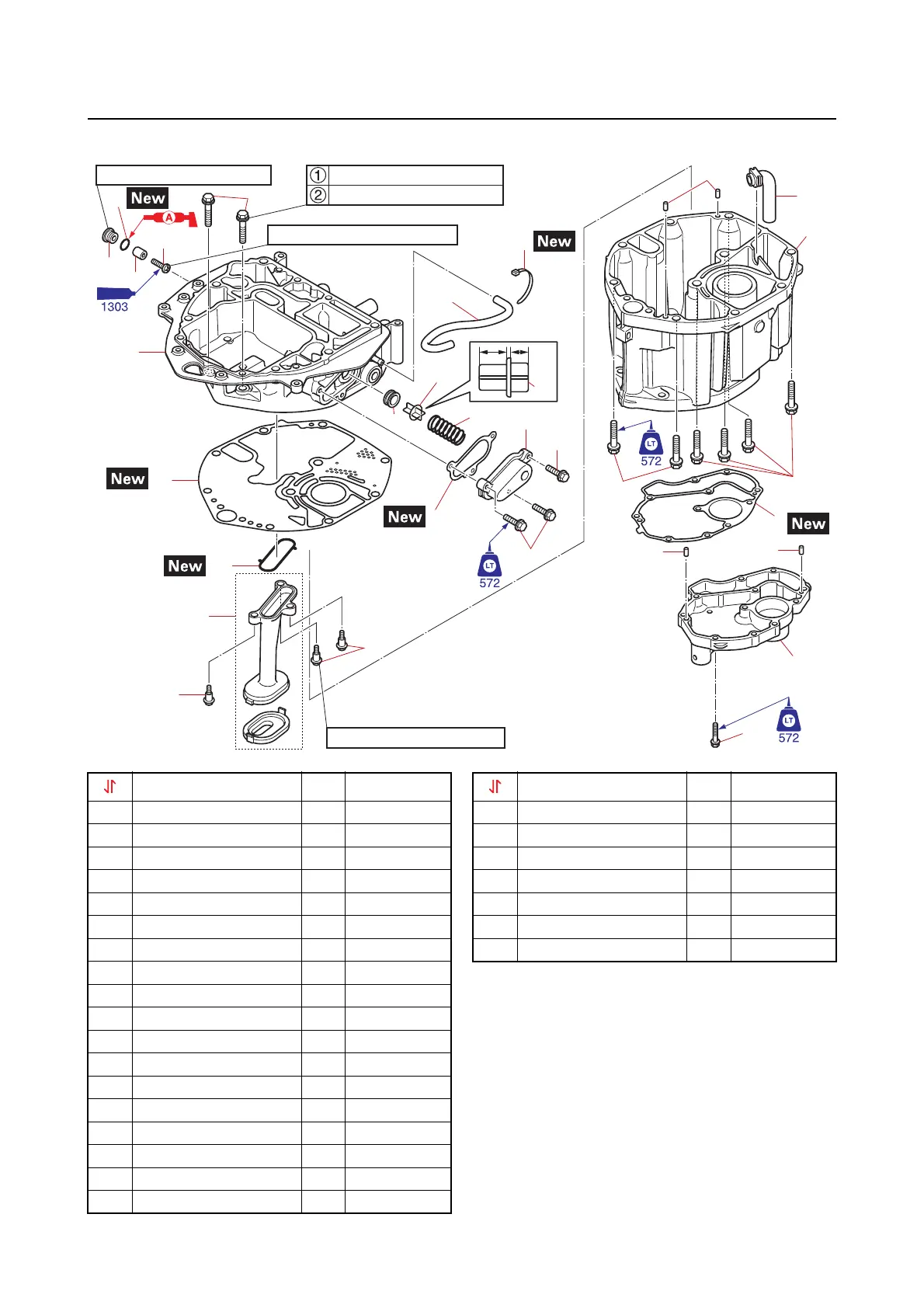

Oil pan and exhaust guide
9-18
Oil pan and exhaust guide
25
1
2
4
3
12
11
10
7
9
8
7
5
6
20
17
24
22
23
22
19
18
17
17
15
15
14
13
16
11
21
2.0 N·m (0.20 kgf·m, 1.5 lb·ft)
18 N·m (1.8 kgf·m, 13 lb·ft)
42 N·m (4.2 kgf·m, 31 lb·ft)
42 N·m (4.2 kgf·m, 31 lb·ft)
12 N·m (1.2 kgf·m, 8.9 lb·ft)
Part name Q’ty Remarks
1 Plug 1
2 O-ring 1
3 Screw M5  25
mm 1
4 Anode 1
5 Plastic tie 1
6 Hose 1
7 Bolt M6  25
mm 3
8 Cover 1
9 Gasket 1
10 Spring 1
11 PCV 1
12 Grommet 1
13 Bolt M6  30
mm 11
14 Plate 1
15 Dowel pin 2
16 Gasket 1
17 Bolt M10  45
mm 8
18 Oil pan 1
19 Dowel pin 2
20 Pipe 1
21 Gasket 1
22 Bolt M6  24
mm 3
23 Oil strainer 1
24 Gasket 1
25 Exhaust guide 1
