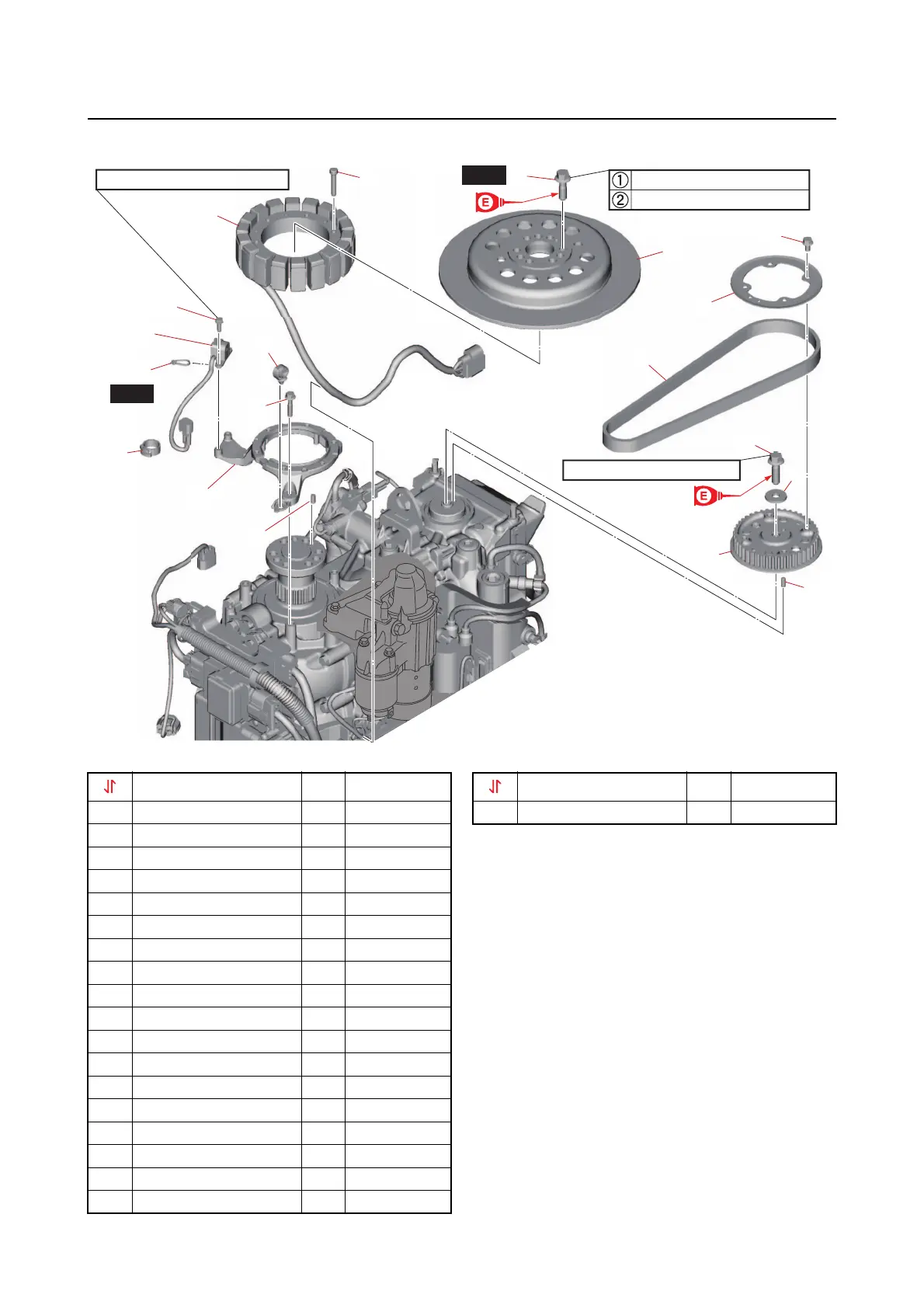

Yamaha F75F - Flywheel Magneto and Timing Belt

Flywheel magneto and timing belt
7-12
Flywheel magneto and timing belt
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
New
New
3.9 N·m (0.39 kgf·m, 2.9 lb·ft)
90°
20 N·m (2.0 kgf·m, 15 lb·ft)
38 N·m (3.8 kgf·m, 28 lb·ft)
Part name Q’ty Remarks
1 Bolt M10  33
mm 6
2 Flywheel magneto 1
3 Dowel pin 1
4 Holder 1
5 Bolt M6  35
mm 6
6 Stator assembly 1
7 Clamp 1
8 Plastic tie 1
9 Bolt M5  16
mm 2
10 Pulser coil 1
11 Bolt M6  30
mm 3
12 Bracket 1
13 Bolt M6  12
mm 4
14 Washer 1
15 Timing belt 1
16 Bolt M10  35
mm 1
17 Washer 1
18 Driven sprocket 1
19 Dowel pin 1
Part name Q’ty Remarks
