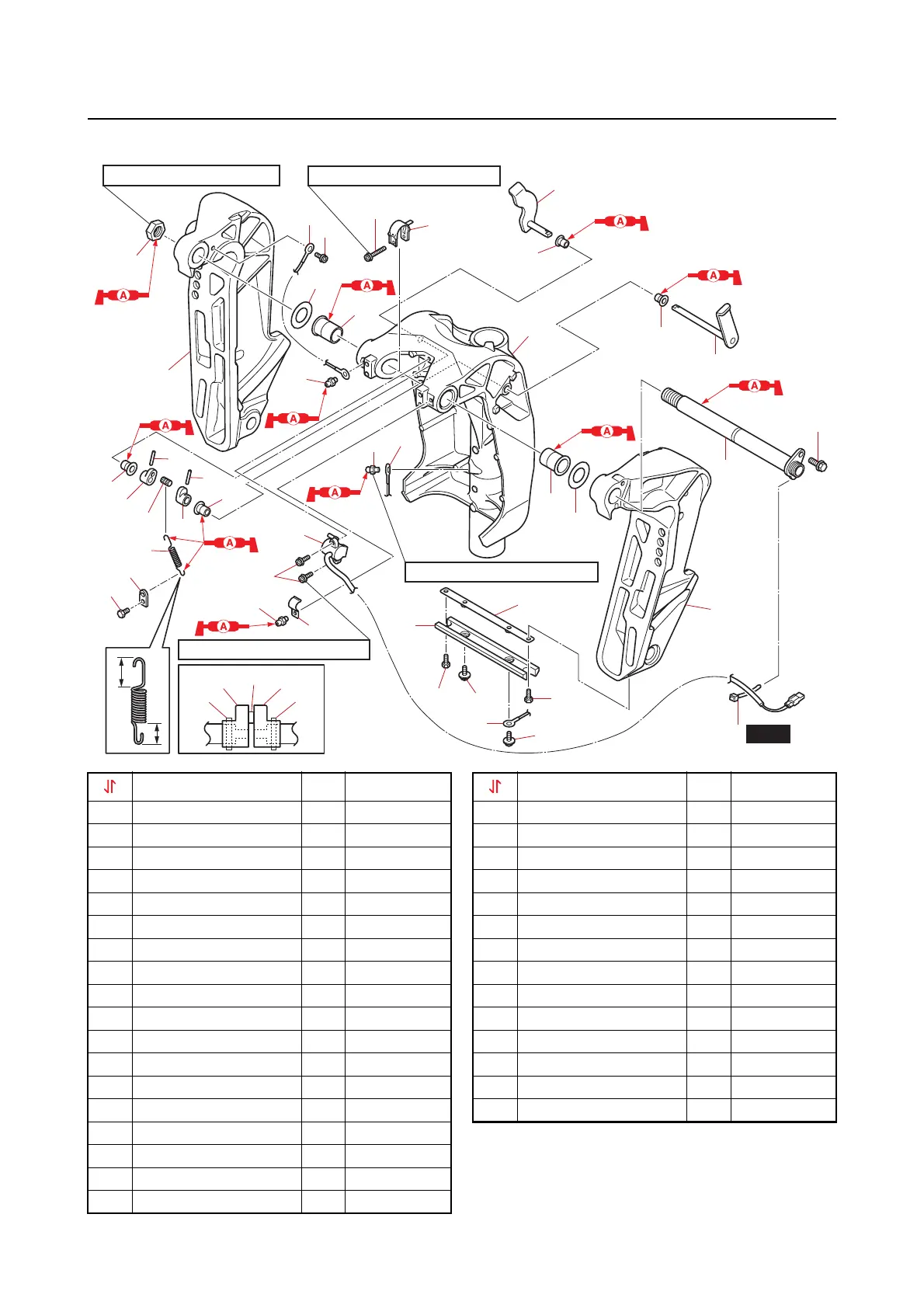

Yamaha F75F - Clamp Bracket and Swivel Bracket

Clamp bracket and swivel bracket
9-28
Clamp bracket and swivel bracket
3.0 N·m (0.30 kgf·m, 2.2 lb·ft)
14
17
9
13
9
9
7
8
12
11
29
27
29
28
20
20
19
19
18
1
16
15
32
21
26
30
30
31
26
26
26
30
30
31
23
25
24
29
29
10
22
4
6
5
2
5
2
3
22 N·m (2.2 kgf·m, 16 lb·ft)
2.0 N·m (0.20 kgf·m, 1.5 lb·ft)
2.3 N·m (0.23 kgf·m, 1.7 lb·ft)
New
Part name Q’ty Remarks
1 Plastic tie 1
2 Bolt M6  14
mm 2
3 Ground lead 1
4 Anode 1
5 Bolt M6  16
mm 2
6 Plate 1
7 Screw M5  35
mm 1
8 Trim sensor cam 1
9 Grease nipple M6 3
10 Ground lead 1
11 Screw M6  12
mm 1
12 Ground lead 1
13 Clamp 1
14 Self-locking nut M22 1
15 Bolt M8  20
mm 1
16 Through tube 1
17 Clamp bracket (STBD) 1
18 Clamp bracket (PORT) 1
19 Washer 2
20 Bushing 2
21 Screw M6  16
mm 2
22 Tri m se n s o r 1
23 Spring 1
24 Bolt M6  10
mm 1
25 Hook 1
26 Pin 2
27 Tilt stop lever 1
28 Tilt stop lever 1
29 Bushing 4
30 Distance collar 2
31 Pin 1
32 Swivel bracket 1
Part name Q’ty Remarks
