Yamaha F75F - Wire Harness (Remote Control Model)

Wire harness
7-20

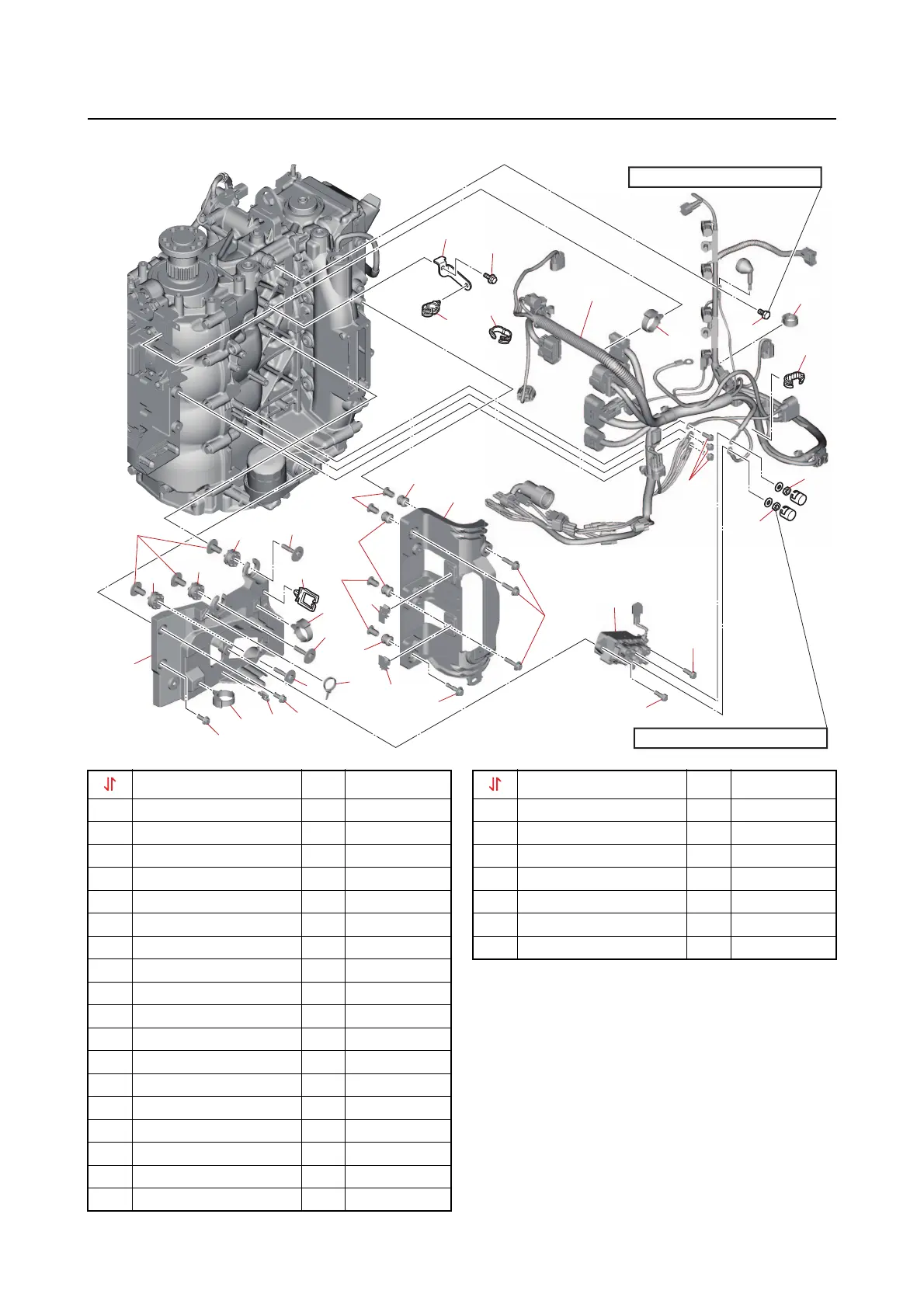

Wire harness (remote control model)
1
1
2
2
3
4
5
6
7
7
7
13
9
10
11
11
11
12
12
12
8
8
14
5
15
16
17
18
19
20
21
21
22
23
24
25
20
21
22
18
2.0 N·m (0.20 kgf·m, 1.5 lb·ft)
4.5 N·m (0.45 kgf·m, 3.3 lb·ft)
Part name Q’ty Remarks
1 Nut M6 2
2 Bolt M6  20
mm 2
3 PTT relay 1
4 Bolt M4  8 mm 1
5 Clamp 2
6 Bolt M6  16
mm 3
7 Bolt M6  35
mm 3
8 Bolt M6  16
mm 2
9 Bracket 1
10 Collar 3
11 Grommet 3
12 Holder 3
13 Holder 1
14 Plastic tie 1
15 Holder 1
16 Clamp 1
17 Wire harness 1
18 Bolt M6  30
mm 4
19 Bracket 1
20 Collar 4
21 Grommet 4
22 Holder 2
23 Bolt M6  16
mm 1
24 Holder 1
25 Clamp 1
Part name Q’ty Remarks
