Lubrication system
2-21
Lubrication system

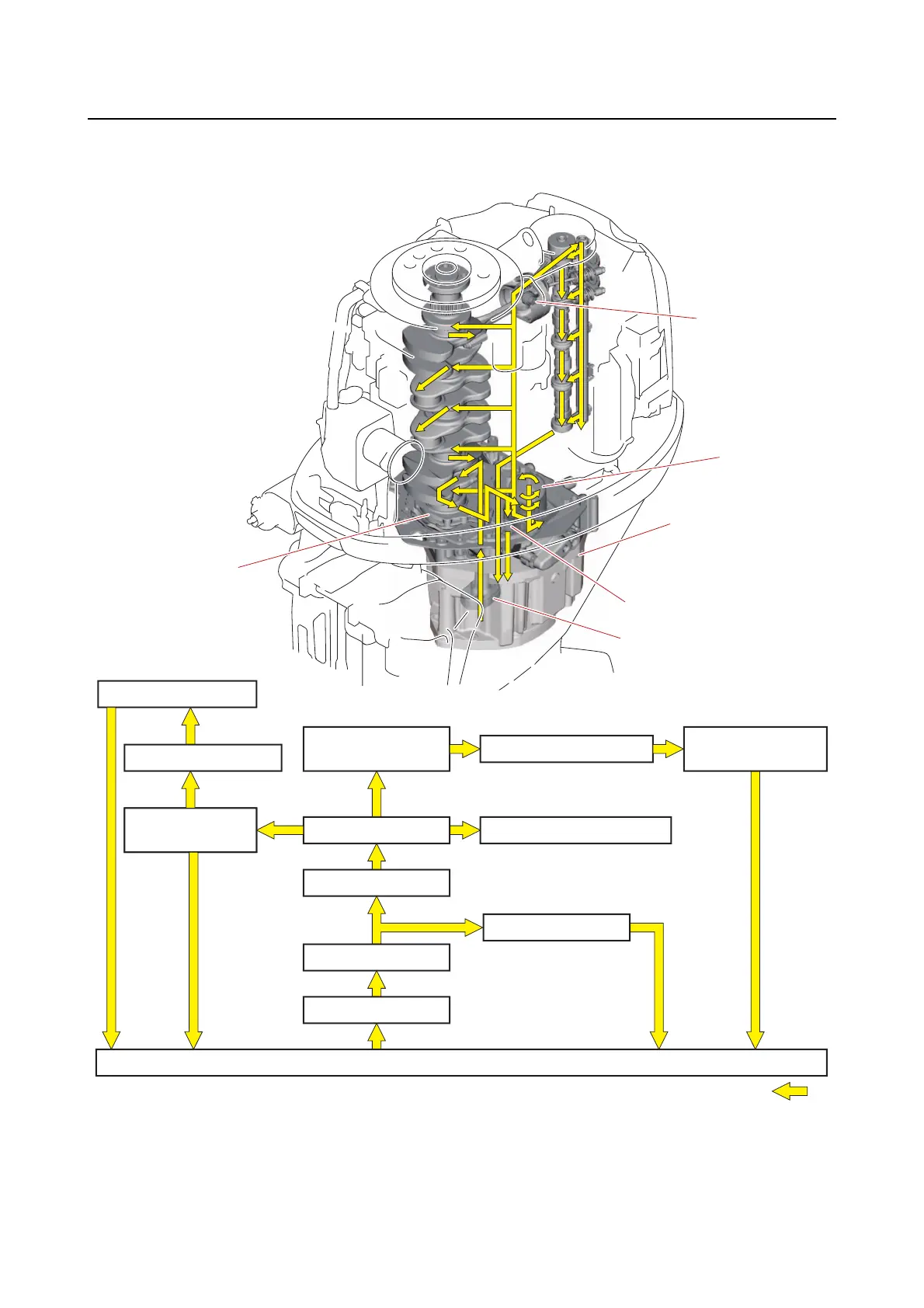

Lubrication diagram
4. Oil filter
1. Oil pan
3. Oil pump
13. Relief valve
6. Oil pressure
switch
A
3. Oil pump
13. Relief valve
4. Oil filter
10. Cylinder head
oil passage
7. Crankshaft
main journal
5. Main gallery
8. Crankshaft pin
9. Piston
6. Oil pressure switch
11. Camshaft journal
12. Valve and
related parts
2. Oil strainer
1. Oil pan
441 kPa
(4.41 kgf/cm
2,
63.9 psi)
2. Oil strainer
