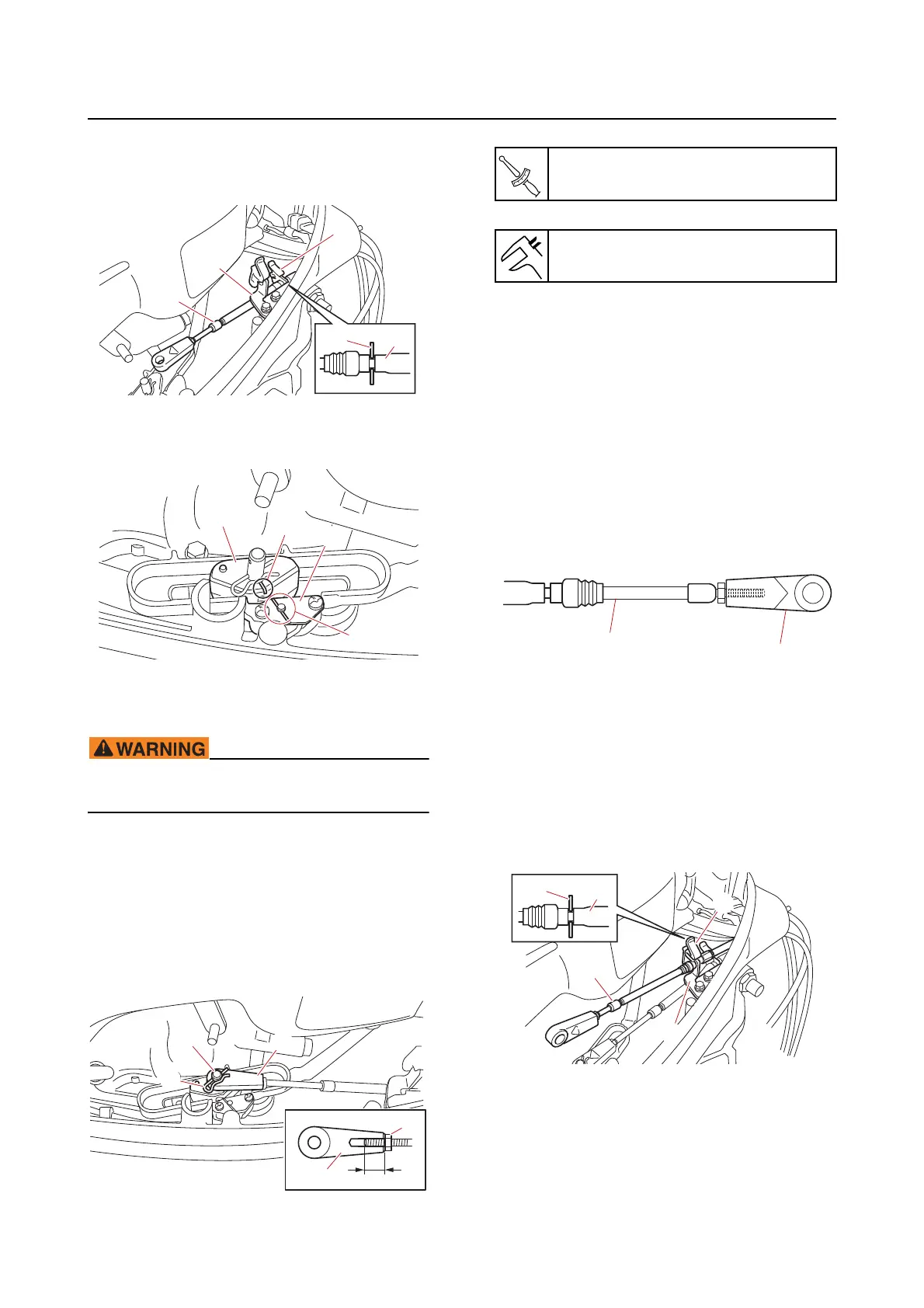

Yamaha F75F - Installing the Throttle Cable

Rigging grommet mounting
3-6
d. Install the shift cable “3” to the bracket
“2”, and then fasten it using the cable
clamp “1”.
e. Align the mark “a” on the bushing “1”
with th
e mark “b” on the plate “2”.
f. Adjust the shift cable joint “1”, and
then install it to
the pin “2”.
The shift cable joint must be screwed in 8.0
mm (0.31 in) or more.
g. Install the clip “3”, and then check that
the shift cable locknut “4” is fully seat-
ed on the shift cable joint “1”.
h. Tighten the shift cable locknut “4” from
its fully seated position to the specified
angle.
2. Check:
• Shift cable
operation
Improper  Repeat from step (1).
Installing the throttle cable
1. Install:
• Throttle cable
a. Fully screw in the throttle cable joint
“1
” to the throttle cable “2”.
b. Disengage the cable clamp “1” from
the bracket “2”. See “Cable clamp”
(2-14).
c. Install the throttle cable “3” to the
bracket “2”, and then fasten it usin
g
the cable clamp “1”.
1
2
2
3
3
a
b
1
2
a
4
1
1
2
3
Shift cable locknut “4”
90
Dimension “a”
8.0 mm (0.31 in) or more
T
R
.
.
1
2
1
2
2
3
3
