5. Tighten:
• Muffler bolt

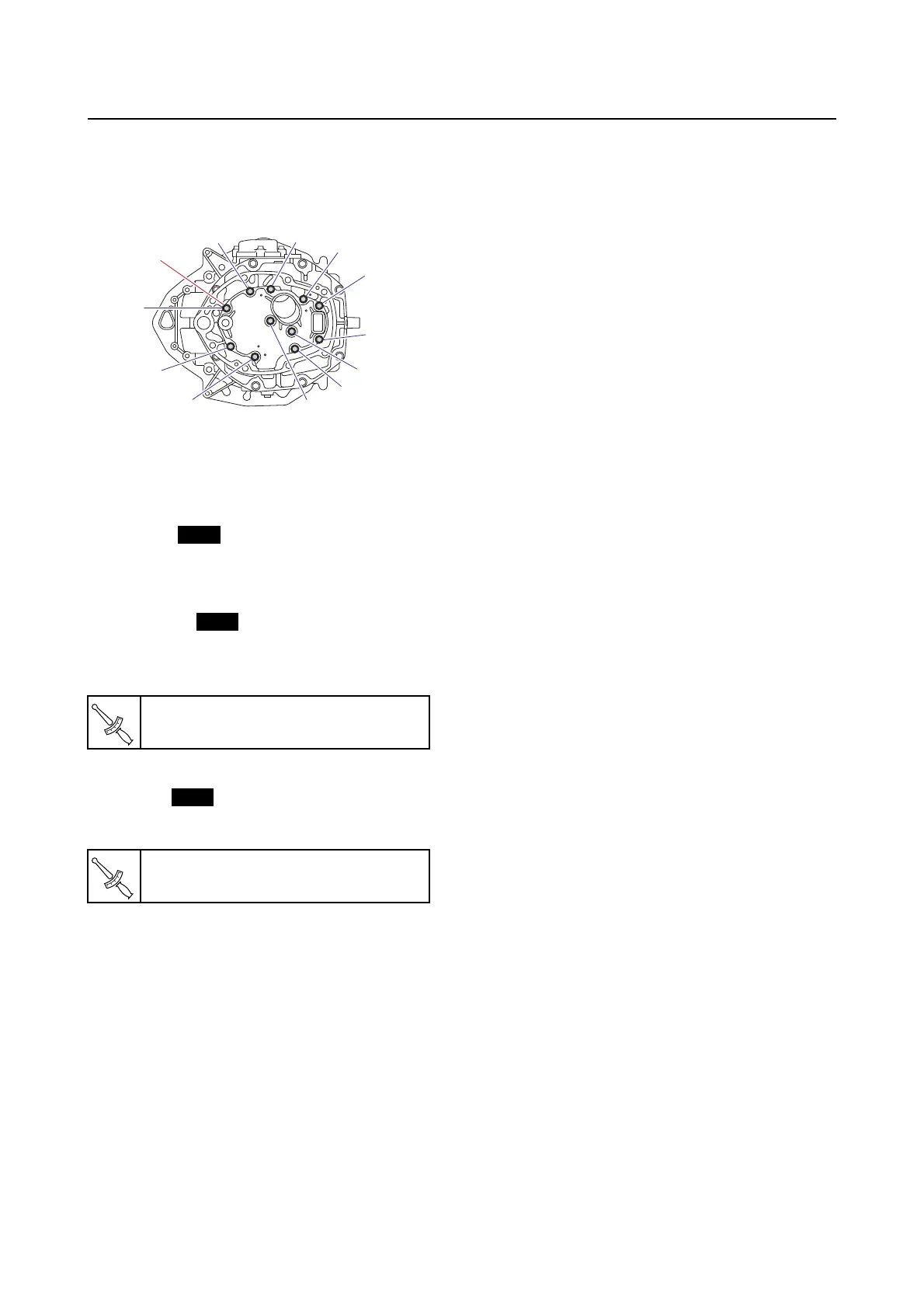

a. Tighten the muffler bolts “1” in the or-
der [1], [2], and so on.
6. Install:
• Grommet
• PC
V
• Spring
• Gask
et (to the cover)
• Cov
er
• Cover bolt
• Hos
e
• Plastic tie
• Anode (to the plug screw)
• Plu
g screw
7. Install:
• O-ring
• Plu
g
Plug screw
2.0 N·m (0.20 kgf·m, 1.5 lb·ft)
Plug
18 N·m (1.8 kgf·m, 13 lb·ft)
[2]
[1]
[4]
[3]
[6]
[5]
[8]
[7]
[9]
[10]
[11]
1
New
New
T
R
.
.
New
T
R
.
.
