Yamaha F75F - Page 261

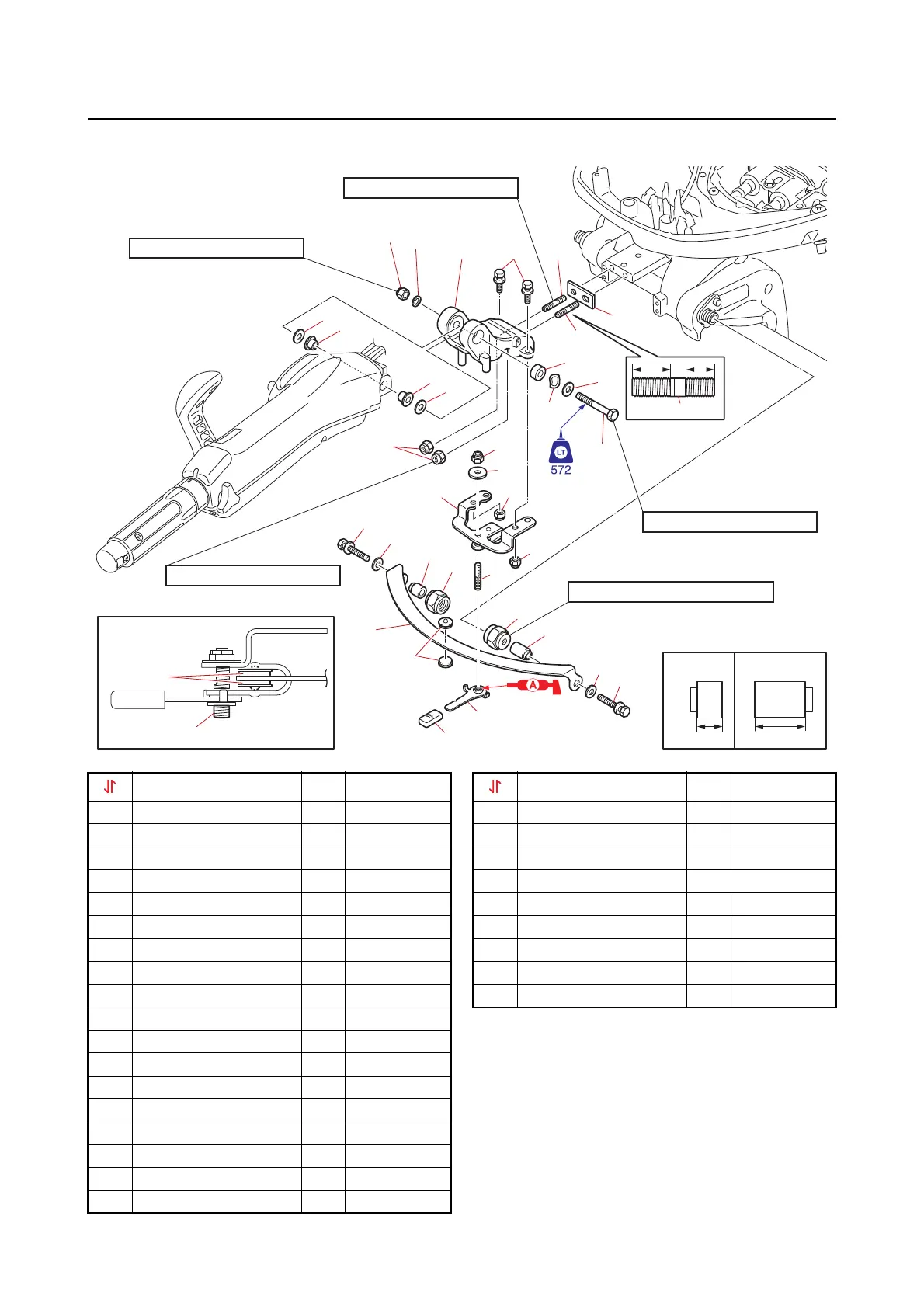

Steering friction plate (tiller handle model)
9-1
Steering friction plate (tiller handle model)
8
13
22
5
27
27
10
10
18
14
14
3
3
4
4
26
1
1
7
2
11
15
15
12
2
6 23
17
9
16
19
20
21
24
24
25
25
27
5
32 N·m (3.2 kgf·m, 24 lb·ft)
20 N·m (2.0 kgf·m, 15 lb·ft)
40 N·m (4.0 kgf·m, 30 lb·ft)
32 N·m (3.2 kgf·m, 24 lb·ft)
19.6 N·m (1.96 kgf·m, 14.5 lb·ft)
Part name Q’ty Remarks
1 Bolt M8  50
mm 2
2 Washer 2
3 Collar 1
4 Collar 1
5 Self-locking nut M8 2
6 Bolt M8  25
mm 2
7 Friction plate 1
8 Self-locking nut M10 1
9 Washer 1
10 Steering lock shaft 1
11 Steering lock lever 1
12 Cover 1
13 Bracket 1
14 Nut 2
15 Friction piece 2
16 Self-locking nut M12 1
17 Washer 1
18 Bolt M12  80
mm 1
19 Washer 1
20 Wave washer 1
21 Collar 1
22 Self-locking nut M10 2
23 Bracket 1
24 Washer 2
25 Bushing 2
26 Spacer 1
27 Stud bolt 2
Part name Q’ty Remarks
