Yamaha F75F - Page 225

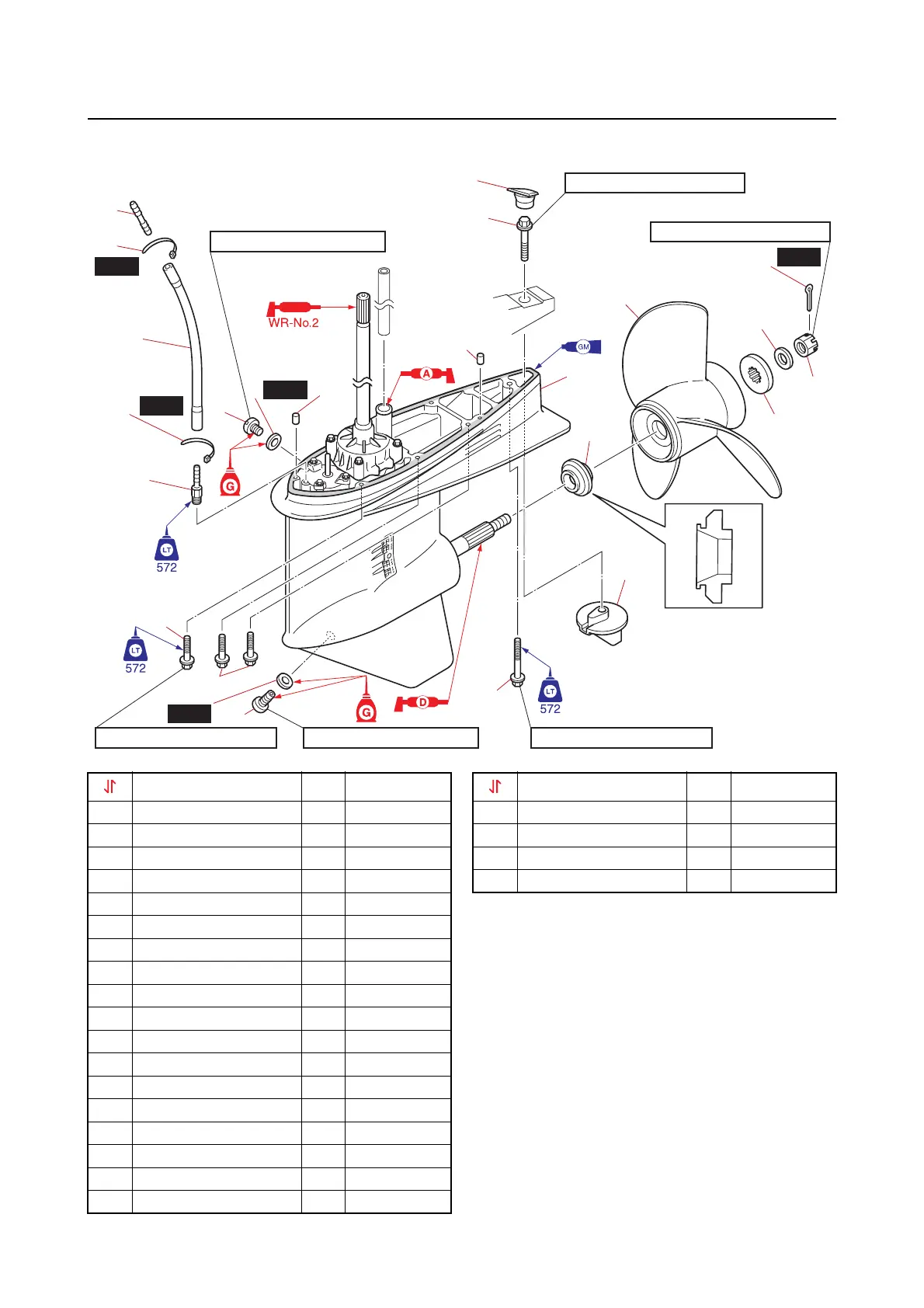

Lower unit
8-1
Lower unit
15
10
18
7
5
6
8
9
22
22
1
2
17
16
16
14
13
3
4
21
19
20
11
12
7 N·m (0.7 kgf·m, 5.2 lb·ft)
7 N·m (0.7 kgf·m, 5.2 lb·ft)
40 N·m (4.0 kgf·m, 30 lb·ft)
40 N·m (4.0 kgf·m, 30 lb·ft)
54 N·m (5.4 kgf·m, 40 lb·ft)
42 N·m (4.2 kgf·m, 31 lb·ft)
New
New
New
New
New
Part name Q’ty Remarks
1 Oil level plug 1
2 Gasket 1
3 Drain screw 1
4 Gasket 1
5 Cotter pin 1
6 Propeller nut 1
7 Washer 1
8 Spacer 1
9 Propeller 1
10 Spacer 1
11 Plastic tie 1
12 Hose joint 1
13 Grommet 1
14 Bolt M10  45
mm 1
15 Tri m ta b 1
16 Bolt M10  45
mm 6
17 Bolt M10  70
mm 1
18 Lower unit 1
19 Plastic tie 1
20 Speedometer hose 1
21 Hose nipple 1
22 Dowel pin 2
Part name Q’ty Remarks
