Yamaha F75F - Page 276

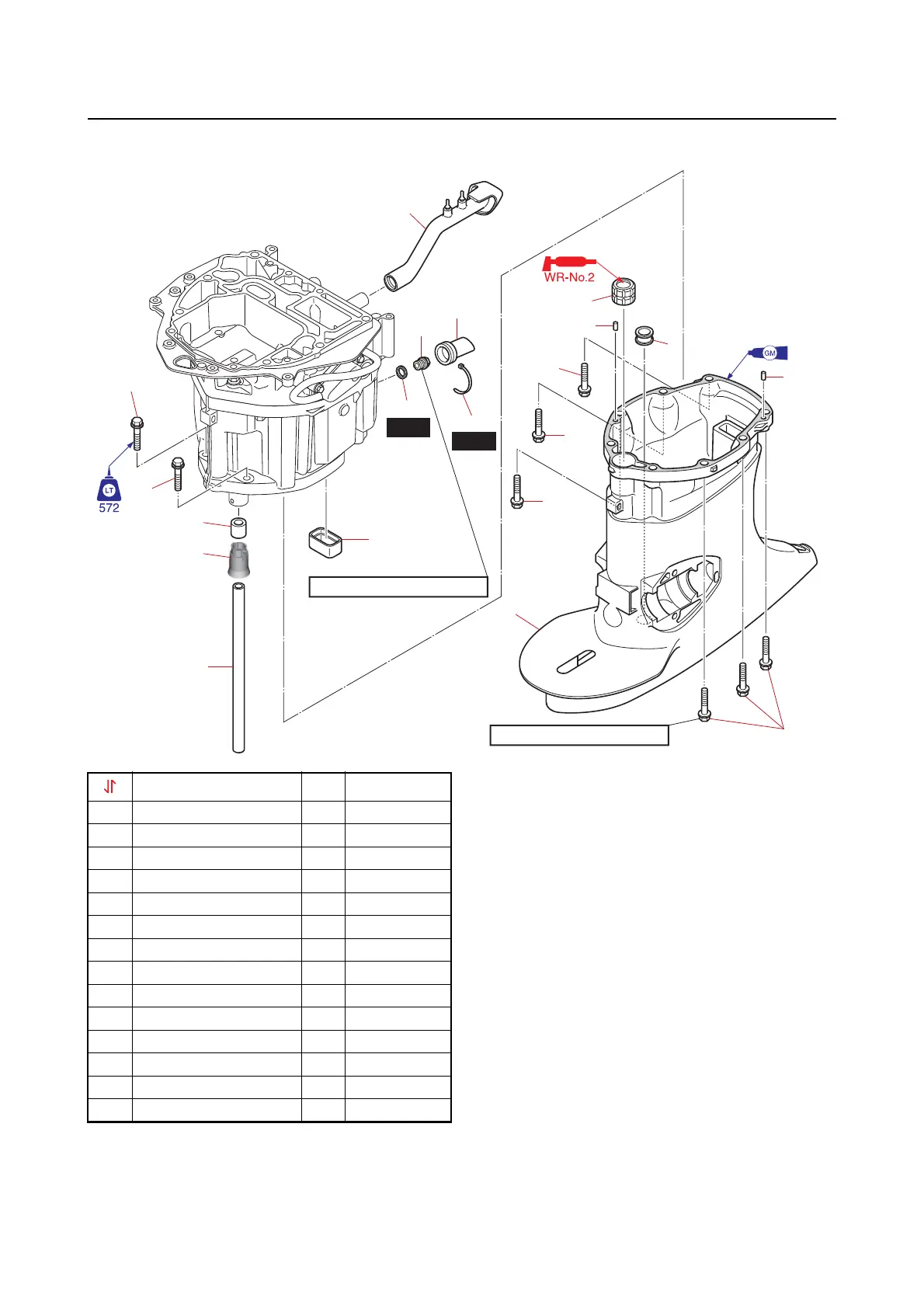

Upper case (X-transom model)
9-16
Upper case (X-transom model)
7
1
4
14
8
9
9
13
11
10
12
6
6
6
6
6
6
5
27 N·m (2.7 kgf·m, 20 lb·ft)
42 N·m (4.2 kgf·m, 31 lb·ft)
2
3
New
New
Part name Q’ty Remarks
1 Drain bolt M14 1
2 Gasket 1
3 Plastic tie 1
4 Damper 1
5 Rubber seal 1
6 Bolt M10  45
mm 8
7 Upper case 1
8 Rubber seal 1
9 Dowel pin 2
10 Rubber seal 1
11 Water pipe 1
12 Guide 1
13 Rubber seal 1
14 Bushing 1
