Steering arm
9-22

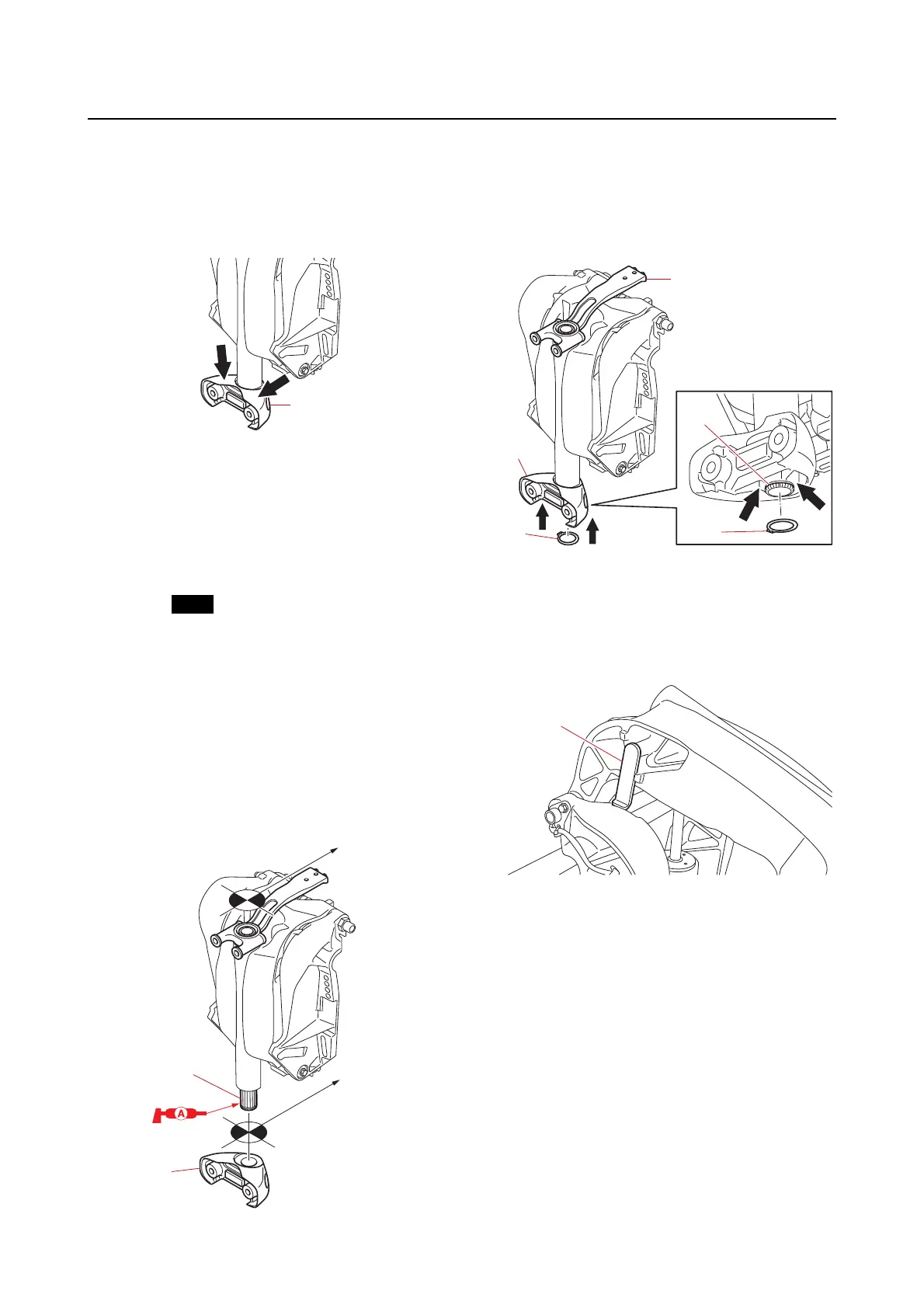

Removing the steering arm
1. Remove:
• Steering yoke
a. Remove the steering yoke “1” by strik-
ing it using a copper hammer.
Installing the steering arm
1. Install:
• Washer (onto
the steering arm)
• Bushing (onto the
steering arm)
• Steering arm (to the swivel bracket)
• Bus
hing
• O-ring
• Washer
• Washer
2. Install:
• Steering yoke
• Circlip
a. Install the steering yoke “1” so that the
steering arm “2” and the steering yoke
“1” are facing
in the same direction (“a”
and “b” are aligned).
b. Hold the steering arm “1”, and then
strike the
steering yoke “2” using a
copper hammer until the groove “a” for
installing the circlip is visible.
c. Install the circlip “3”.
3. Inject:
• Grease
a. Fully tilt the swivel bracket up, and
then support it using the tilt stop lever
“1
”.
1
New
1
2
a
b
1
2
3
3
a
1
