Yamaha F75F - Page 284

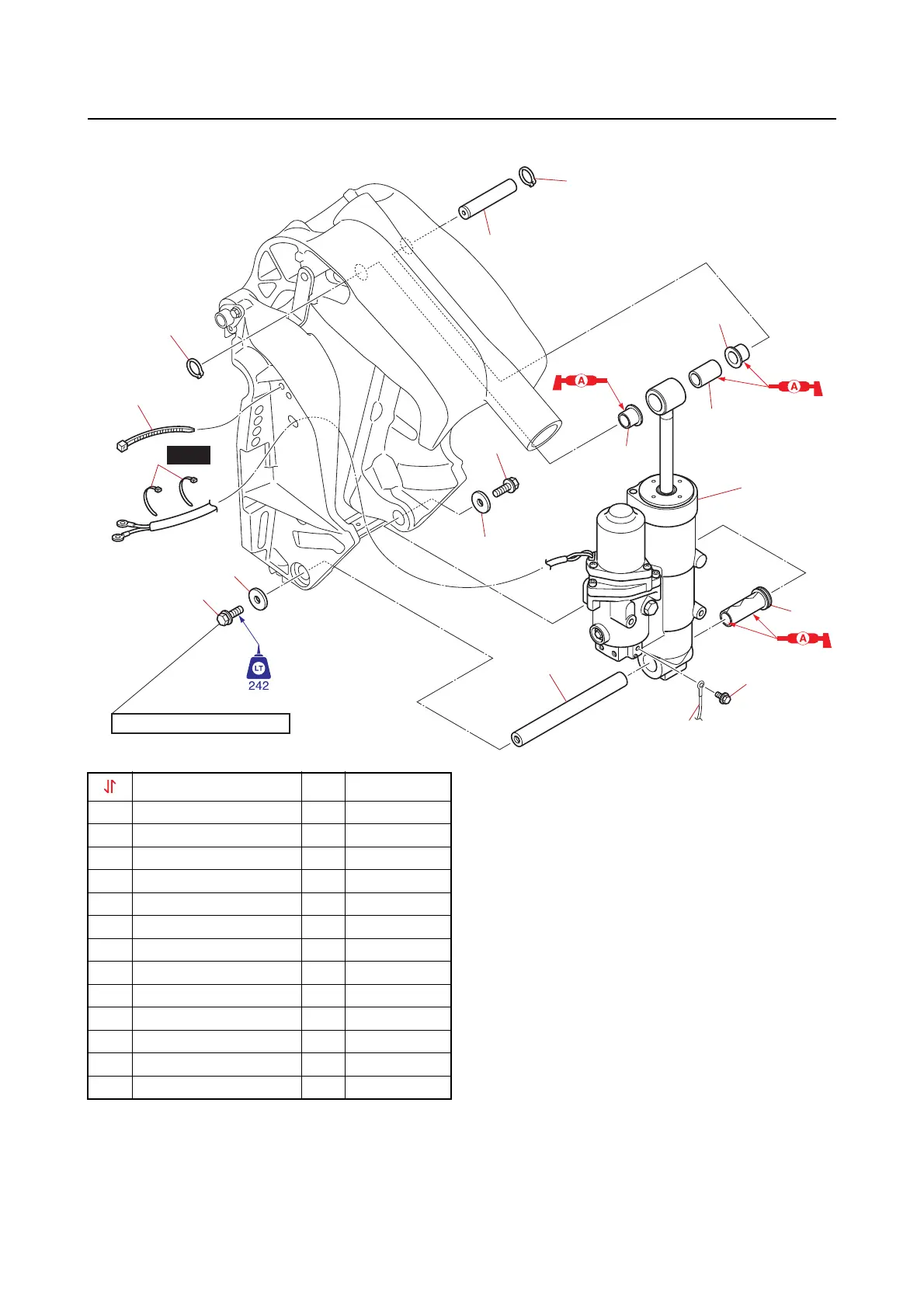

PTT unit
9-24
PTT unit
13
2
1
9
10
5
5
6
7
8
12
3
11
7
9
10
54 N·m (5.4 kgf·m, 40 lb·ft)
4
New
Part name Q’ty Remarks
1 Plastic tie 2
2 Plastic tie 1
3 Bolt M6  10
mm 1
4 Ground lead 1
5 Circlip 2
6 Shaft 1
7 Bushing 2
8 Bushing 1
9 Bolt M10  30
mm 2
10 Washer 2
11 Shaft 1
12 Bushing 1
13 PTT unit 1
