YASKAWA V1000 Series Installation & Start-Up Manual

4.2 Using the Digital LED Operator
YASKAWA TM.V1000.01 V1000 Drive Installation & Start-Up Manual (Preliminary 01-19-07) 111
Start-Up Programming & Operation
4
■ Drive Mode Details
The following actions are possible in the Drive Mode:
• Run and stop the drive.
• Monitor the operation status of the drive (frequency reference, output frequency,
output current, output voltage, etc.).
• View information on an alarm.
• View a history of alarms that have occurred.

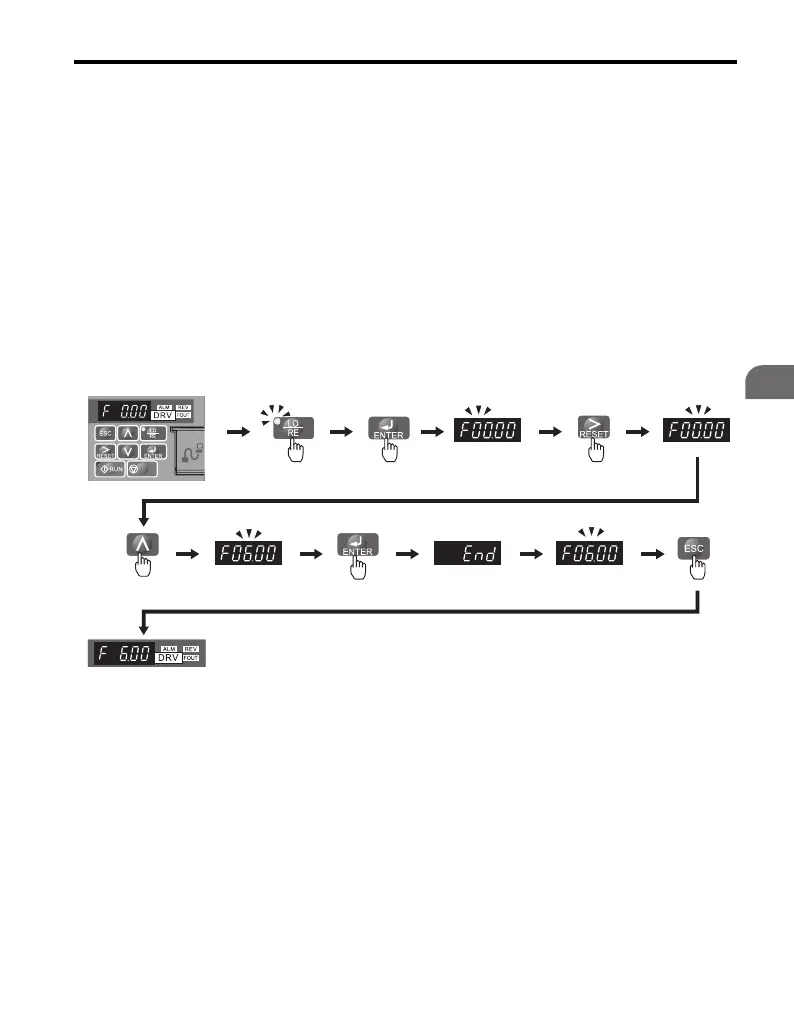

Figure 4.4 illustrates changing the default frequency reference of F 0.00 (0 Hz) to
F 6.00 (6 Hz). This example assumes the drive is set to LOCAL.
Figure 4.4
Figure 4.4 Drive Mode Setting Example
■
Programming Mode Details
The following actions are possible in the programming mode:
• Verify Function: Verify changes to parameter settings from original default
values.
• Setup Group: Access a list of commonly used parameters to simplify setup.
• Parameter Setting Mode: Access and edit all parameter settings.
• Auto-Tuning: Automatically measures motor characteristics and programs the
appropriate settings.
STOP
Frequency reference
display at power up
Press to select LOCAL
Press until the frequency
reference becomes 6 Hz
Press to select the
digit to the right

YASKAWA V1000 Series Specifications

General

Model	V1000 Series
Series	V1000
Output Frequency	0.1 to 400 Hz
Overload Capacity	150% for 60 seconds
Type	AC Drive
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Output Voltage	0 to Input Voltage
Power Range	0.1 to 18.5 kW
Horsepower	0.2 to 25 HP
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Interfaces	Modbus RTU
Enclosure	IP20
Ambient Temperature	-10 to +50°C
Storage Temperature	-20 to +60°C
Humidity	5 to 95% RH (non-condensing)
Cooling Method	Fan Cooled
