2 Installation and Commissioning, IRC5
2.7.2. Connecting a USB memory to the computer unit
3HAC021313-001 Revision: K98
© Copyright 2004-2008 ABB. All rights reserved.
Location DSQC639

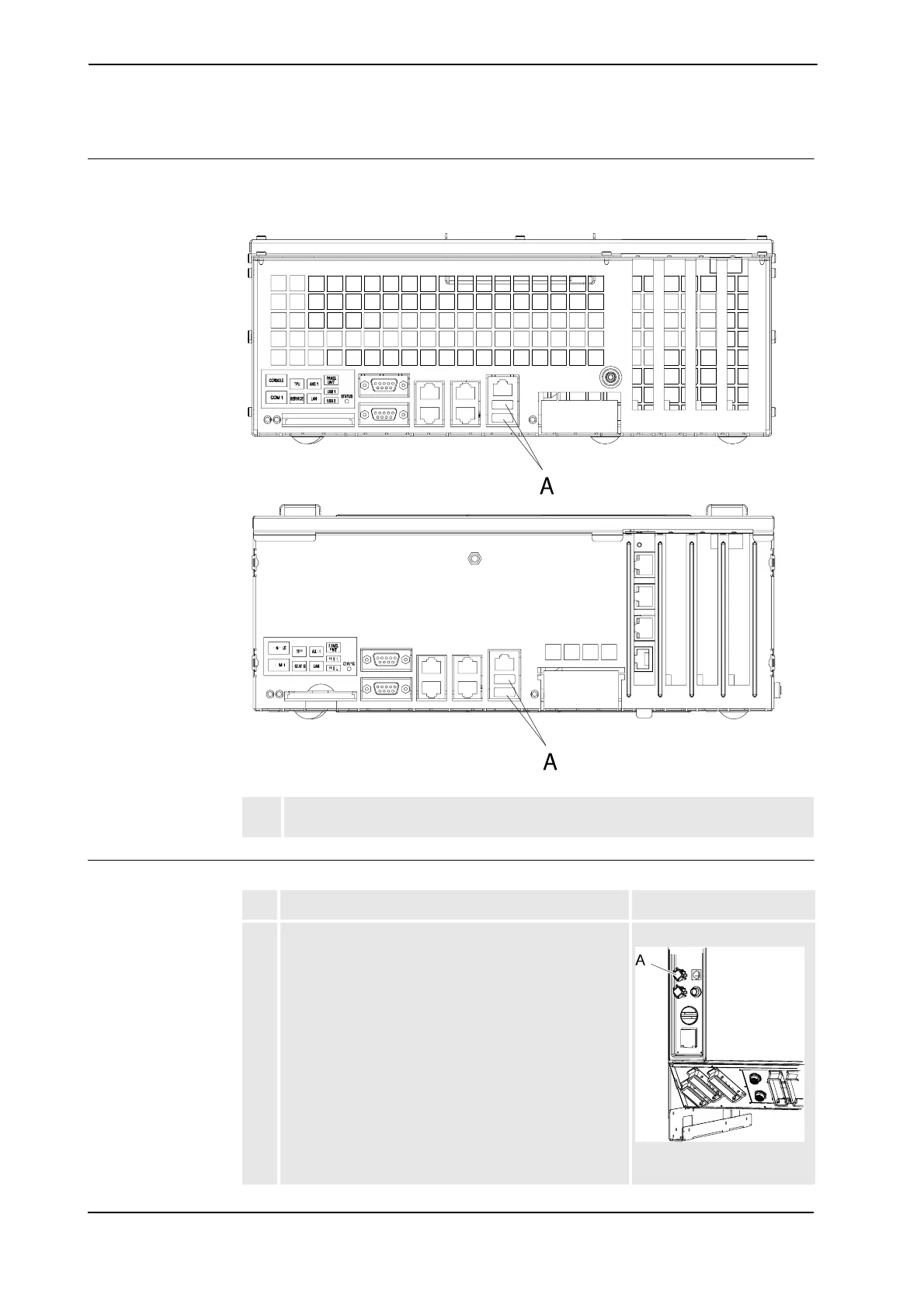

A USB memory may be connected to either one of the USB ports on the computer unit. The
USB ports are shown in the figure below:
xx0600002895
Connection
A USB 1, 2 The USB connectors provide two legacy USB 2.0 ports supporting High
Speed/Full Speed/Low Speed (HS/FS/LS)
Action Info/illustration
1. Open the connector cover on the controller or open the
door, (Control Module on the Dual Cabinet).
xx0600002894
• A: USB port
Continued
Continues on next page
