2 Installation and Commissioning, IRC5
2.9.2. Installation of external operator's panel, IRC5
3HAC021313-001 Revision: K110
© Copyright 2004-2008 ABB. All rights reserved.

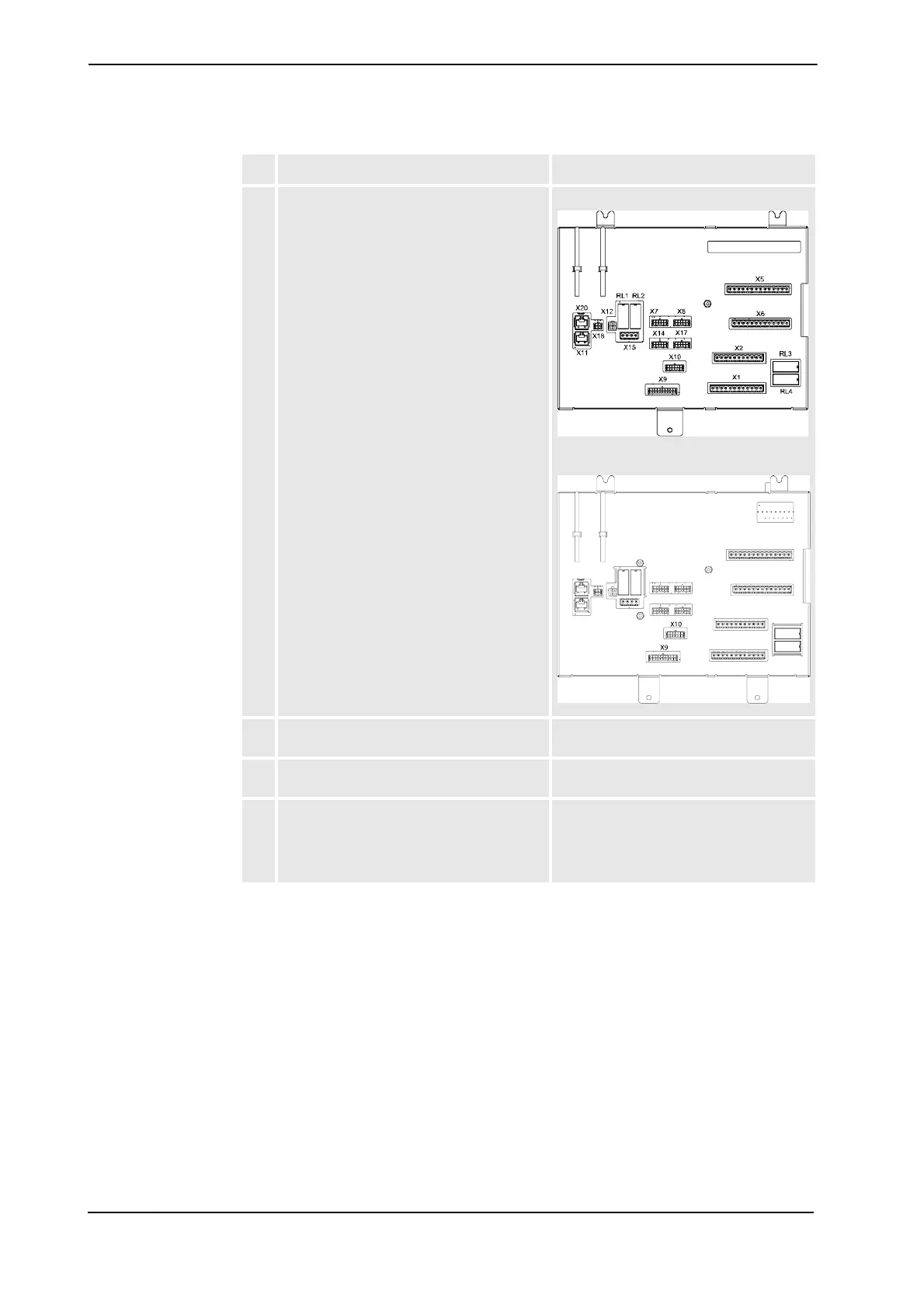

8. Connect the signal connectors A21.X9 and
A21.X10 to the connector X9 and X10 on
the panel board unit.
xx0500001890
xx0600003257
9. Strap the cabling to the existing cable
straping inside the module.
10. Fit the cabling to the wall cabinet with the
two attachment screws.
11. Connect the connectors inside the wall
cabinet.
Connectors inside wall cubicle.
• A21.X9 to X9
• A22.X2 to X2
• A22.X3 to X3
Action Info/Illustration
Continued
