3 Maintenance activities, controller IRC5

3.3.2. Replacement of moist dust filter

1753HAC021313-001 Revision: K

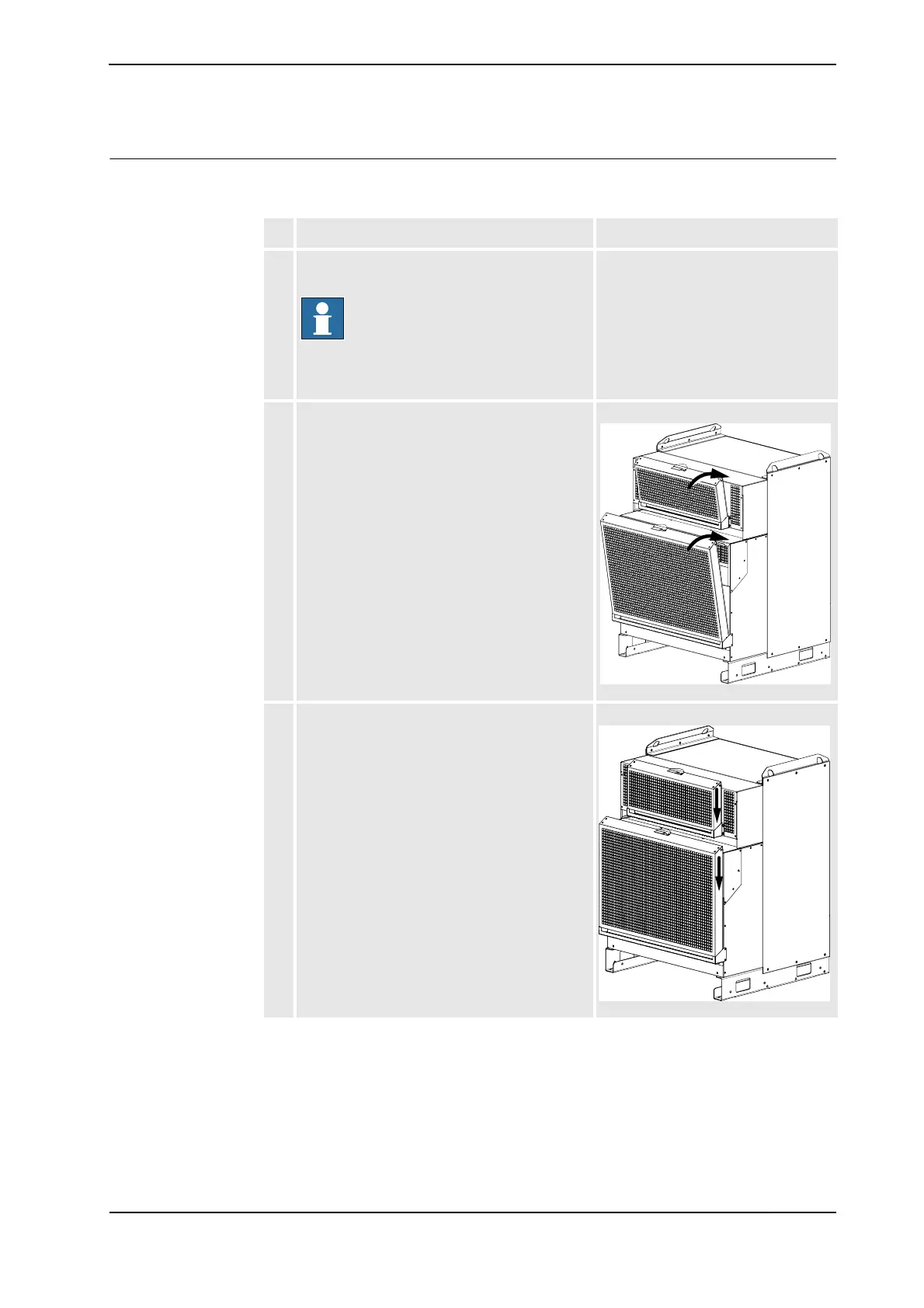

Refitting

The procedure below details how to refit the moist dust filter.

Action Note/Illustration

1. Fit the new moist dust filter in the magazine and

lock it with the lock shackle.

NOTE!

The compact surface on the moist dust filter

must be turned inwards to the cabinet.

2. Fit the moist dust filter magazine on the cabinet

and push inwards.

xx0700000134

3. Push the moist dust filter magazine downwards

until it stops.

xx0700000135

Continued

Other manuals for ABB IRC5

Questions and Answers:

Need help?

Do you have a question about the ABB IRC5 and is the answer not in the manual?

General

Type	Industrial Robot Controller
Model	IRC5
Protection Class	IP54
Power Supply	200-600 VAC, 50/60 Hz
Communication Protocols	PROFIBUS, PROFINET, DeviceNet
Programming Language	RAPID
Number of axes	Up to 36
Storage Temperature	-25°C to +55°C
Relative Humidity	95% (non-condensing)
