4 Repair activities, controller IRC5
4.9. Replacement of computer unit DSQC623
2253HAC021313-001 Revision: K
© Copyright 2004-2008 ABB. All rights reserved.

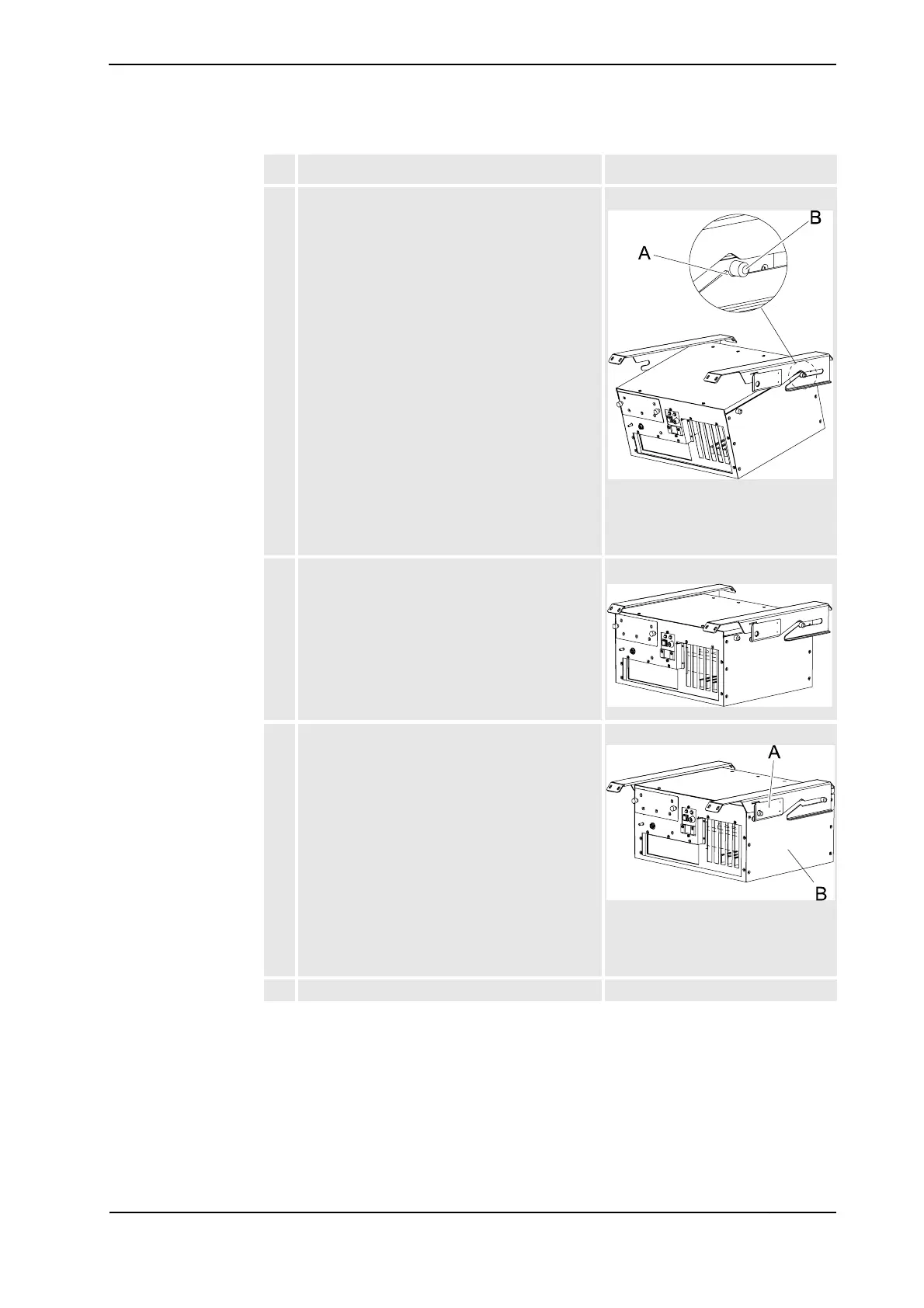

3. Place the rear guide pins of the computer unit
over the end stops.
xx0500001984
Parts:
• A: end stop
• B: guide pin
4. Lift the front end of the computer unit up.
xx0500001985
5. Push the computer unit in until the spring lock
snaps in position.
xx0500001986
Parts:
•A: spring lock
• B: computer unit
6. Reconnect all connectors to the computer unit.
