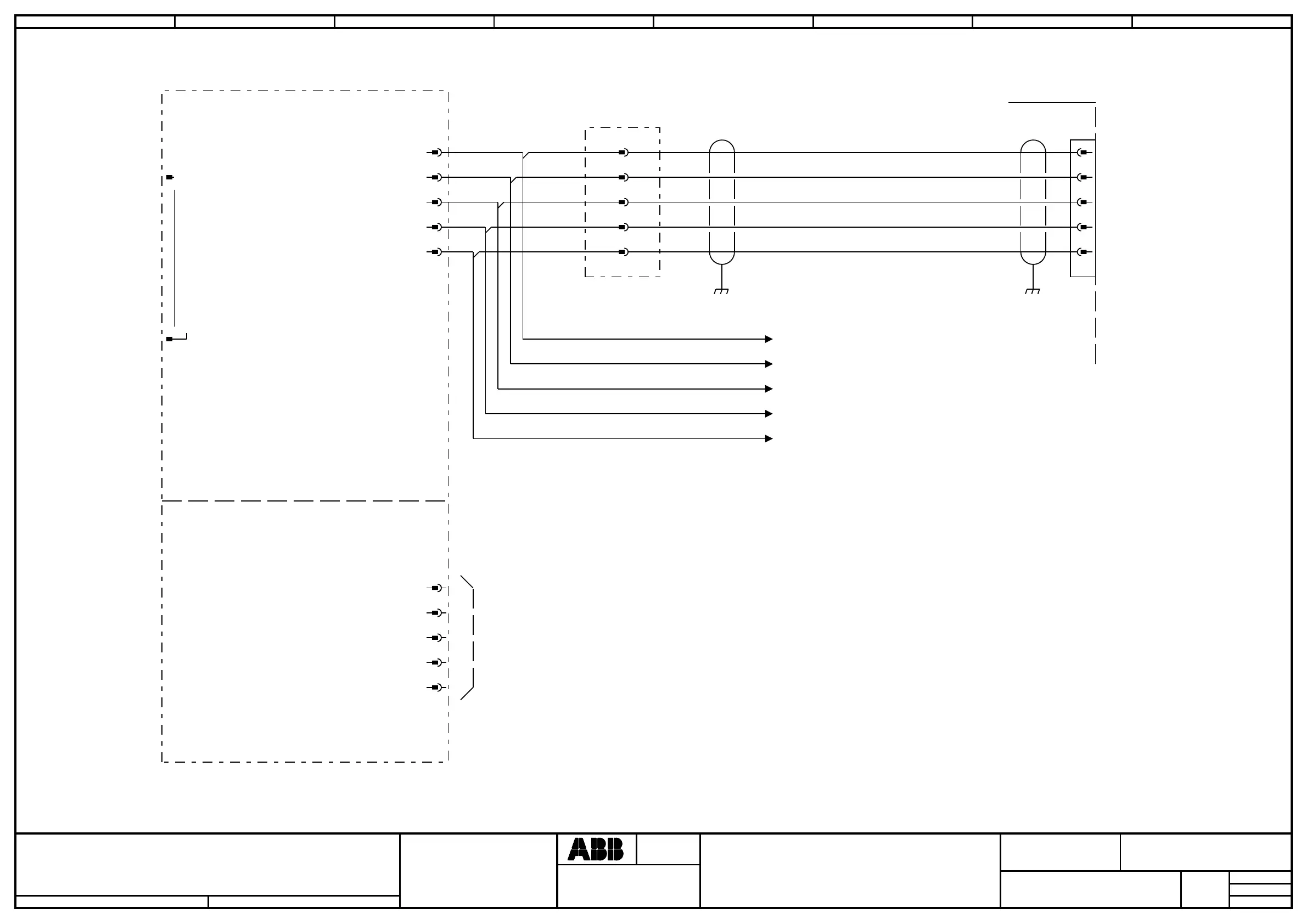

DEVICENET ADAPTER
Location:
Plant:
=
+
+
Sublocation:
EUROMAP
CM
Document no.
Next
Rev. Ind
03
Lab/Office:
Status:
Approved
JSUNDIN MTORNROS
2008-07-17
1 2 3 4 5 6 7 8
P1
PCI BUS
V- / /33.2
CAN_L / /33.2
DRAIN / /33.2
CAN_H / /33.2
V+ / /33.2
BU
BK
SC
WH
RD
-XS17
3
3
5
5
1
1
4
4
2
2
CONTROL
MODULE
OPTION
-A35
.4
/33.3
-A35
.1
-X1
11
22
33
44
55
-CHA-J1
11
22
33
44
55
-CHB-J2
11
22
33
44
55
Customer option bus
Only for dual DEVNET card DSQC 659
