5-40 Panel Handling Subsystem
Motion Controller PCI Cards 5DX Series 3
Z-Axis control
There are four Z-Axis Stepper Motors connected together electrically. All four Z-
Axis Stepper Motors are driven by one Stepper Driver. The Stepper Driver is
controlled by a single channel on Motion Controller PCI #1. The Z-Axis is
operated in an open loop mode as shown in Figure 5-22. This requires no
feedback. The Laser Surface Map Assembly is used to verify the position of the Z-
Axis. There is a limit switch located at the upper end of its travel.

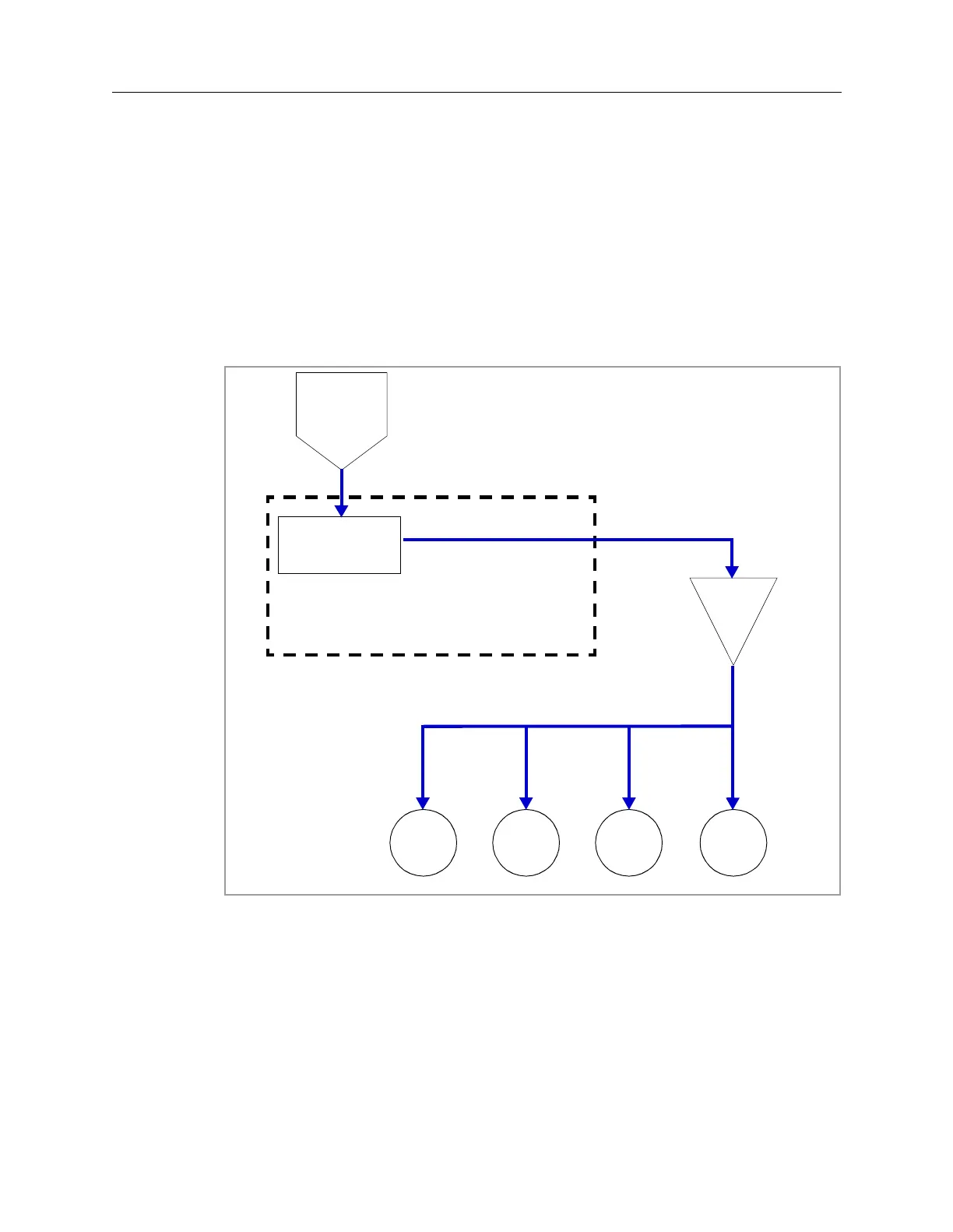

Figure 5-22: Z-Axis Stepper Motor Open-Loop Diagram
3RVLWLRQ
5HTXHVWIURP
6\VWHP
&RQWUROOHU
0RWLRQ3URILOH
=$[LV
6WHSSHU
'ULYHU
3&,EXV
'ULYH
&XUUHQW
/HIW
5HDU
0RWRU
0RWLRQ&RQWUROOHU3&,
6WHSDQG'LUHFWLRQ
/HIW
)URQW
0RWRU
5LJKW
5HDU
0RWRU
5LJKW
)URQW
0RWRU
