Agilent 5DX Service Guide 3-11
5DX Series 3 Safety Interlock Chains
Inner Barrier Safety Interlocks
There are two sets of Safety Interlocks on the Inner Barrier. Each set of Safety
Interlocks contains a Contact Block and a Pin Block, as shown in Figure 3-9. The
Contact Blocks are placed on the Left Half of the Inner Barrier. The Pin Blocks are
placed on the Right Half of the Inner Barrier.
The replacement part numbers for the Safety Interlocks are as follows:
• E7200-07952 — Pin Block - goes on the Right Half of the Inner Barrier.
• E7200-07953 — Contact Block - goes on the Left Half of the Inner Barrier.

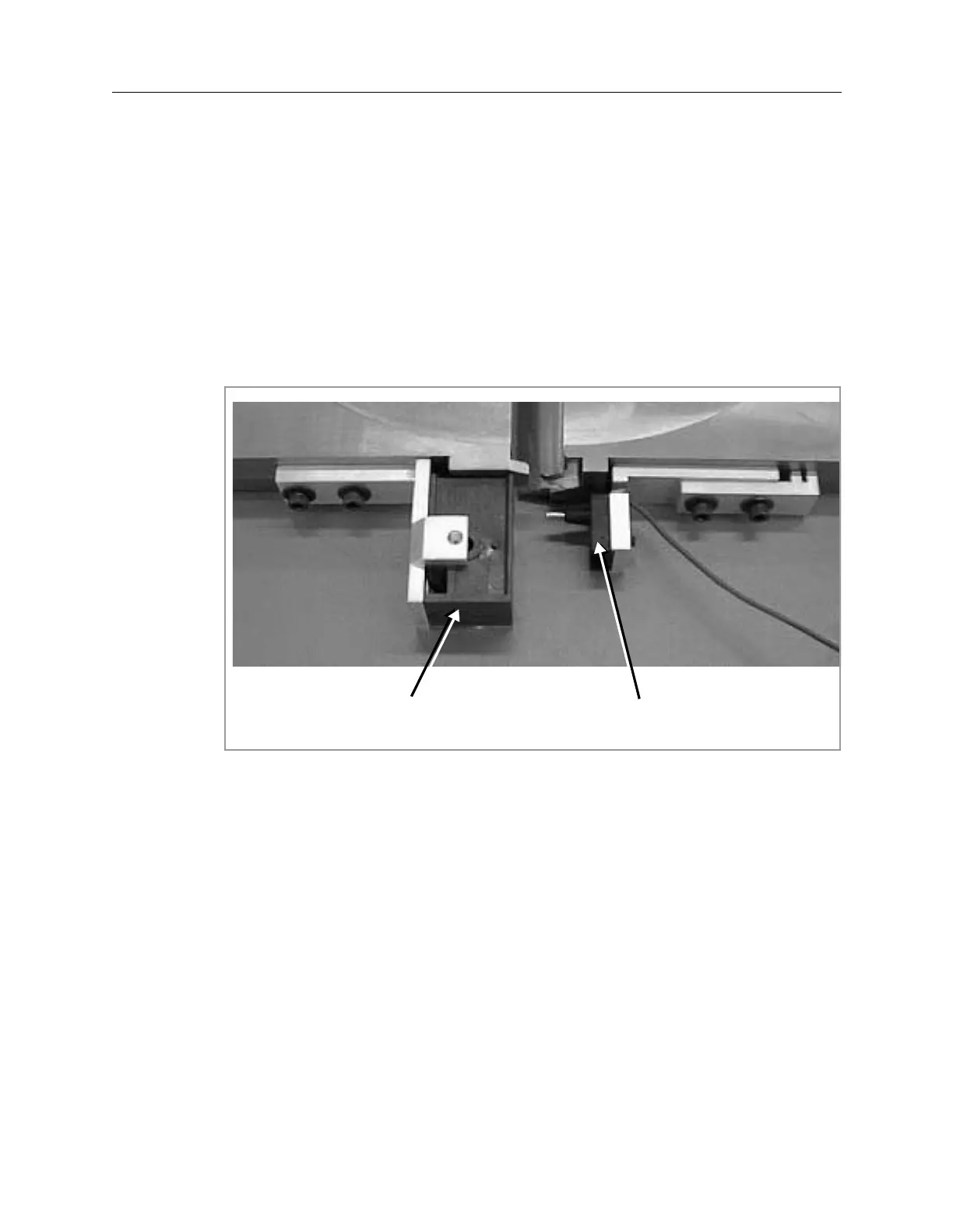

Figure 3-9: Inner Barrier’s Safety Interlock
Contact Block Pin Block
