Agilent Technologies 5DX Service Guide

3-12 Safety Interlock Subsystem
Safety Interlock Chains 5DX Series 3
Outer Barrier Safety Interlocks
There are two different Safety Interlocks on the Outer Barrier. The locations of
the Safety Interlocks are shown in Figure 3-10.
The Primary Safety Interlock contains a Contact Block and a Pin Block, as
shown in Figure 3-11. The Secondary Safety Interlock contains a Plunger and
a Switch, as shown in Figure 3-12.
The replacement part numbers for the Safety Interlocks are as follows:
• 3101-3526 — Outer Barrier Primary Safety Interlock - contains both the
Contact Block and the Pin Block.
• 3101-2425 — Outer Barrier Secondary Safety Interlock - this is the Switch.

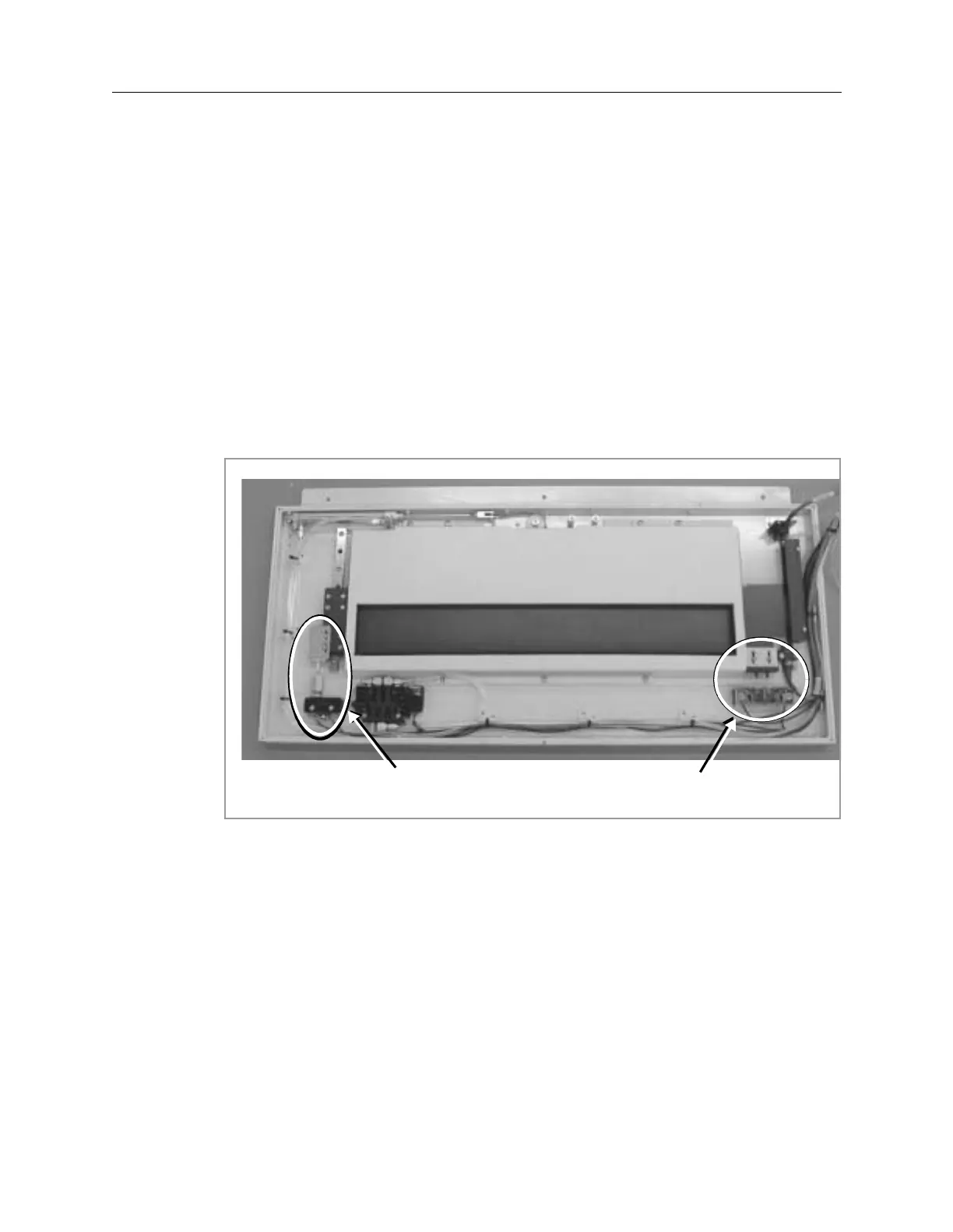

Figure 3-10: Outer Barrier’s Safety Interlocks
Secondary
Safety Interlock
Primary Safety
Interlock
