5DX Series 3 Operator Control Console
.

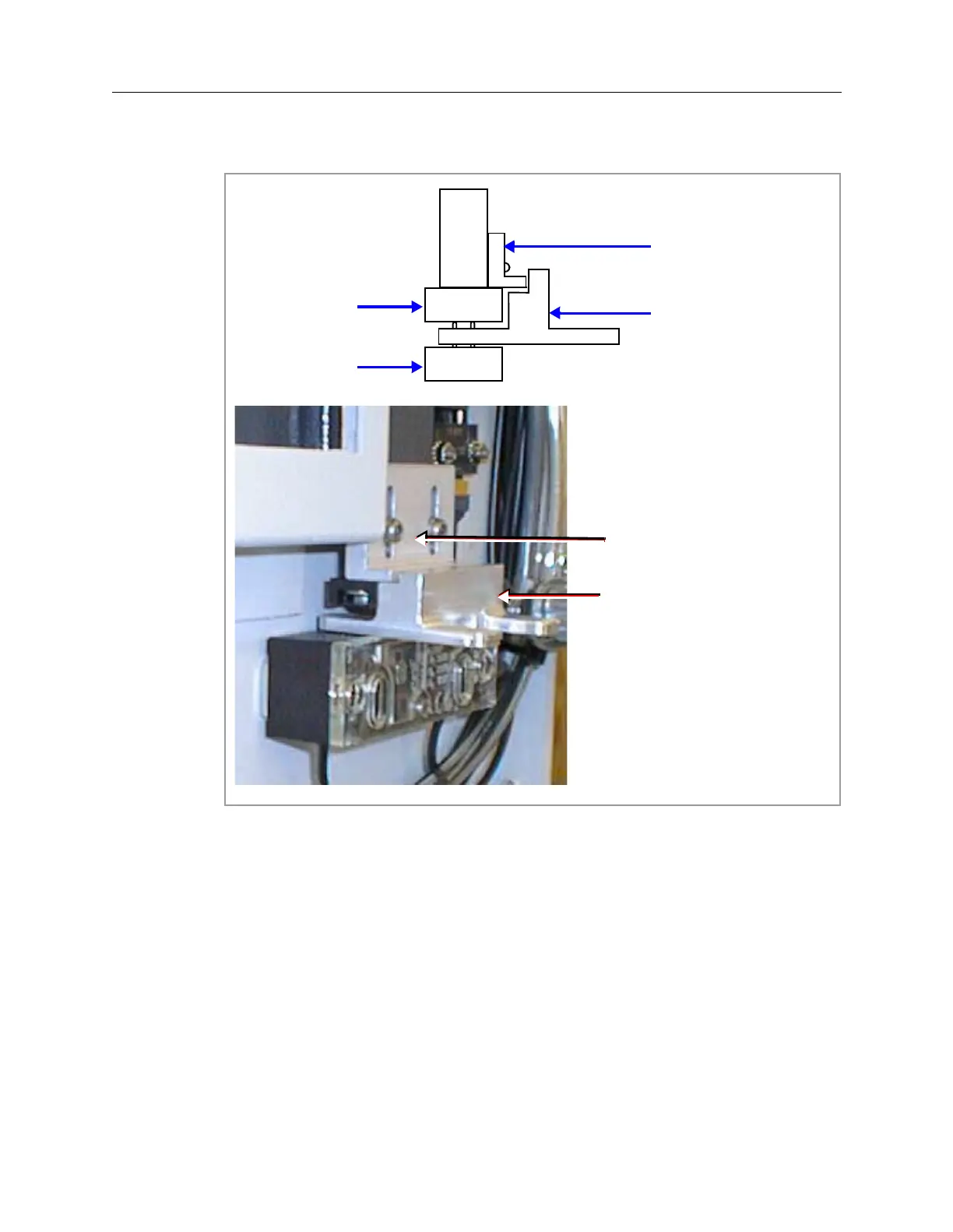

Figure 3-17: Placement of Primary Gap Adjuster
12. Push down on the Pin Block.
13. Verify that the Outer Barrier is in the closed position and that the ohmmeter
indicates zero resistance.
14. Using a T-10 Torx driver, tighten the two screws holding the Pin Block.
Primary Gap Adjuster
Pin Block Bracket
Pin Block
Contact Block
Primary Gap Adjuster
Pin Block Bracket
