55..11..33 Status InformationStatus Information
This section describes the status information available for the SDH layer in the
status area of the Ports SetupPorts Setup screen.
55..11..33..11 Status SummaryStatus Summary
The status summary displayed for the SDH layer consists of the following
information:
The topmost part of the status area gives you access to information about the
current physical status of the selected interface. A summary consisting of the
most relevant status indicators is displayed constantly. By touching the
summary, you can launch a display that contains the detailed status
information.
The middle part of the status area gives you access to alarm and error
information for the selected interface. The status is indicated by the lamp color.
A summary consisting of the most relevant alarm/error indications is displayed
constantly. By touching the summary, you can launch a display that contains
all alarms/errors.
At the bottom of the status area are below buttons that give you access to
various capture/monitor information. By touching a button, you can launch the
corresponding information display.
OH captureOH capture
Tributary scanTributary scan
TransceiverTransceiver
55..11..33..22 Physical DetailsPhysical Details

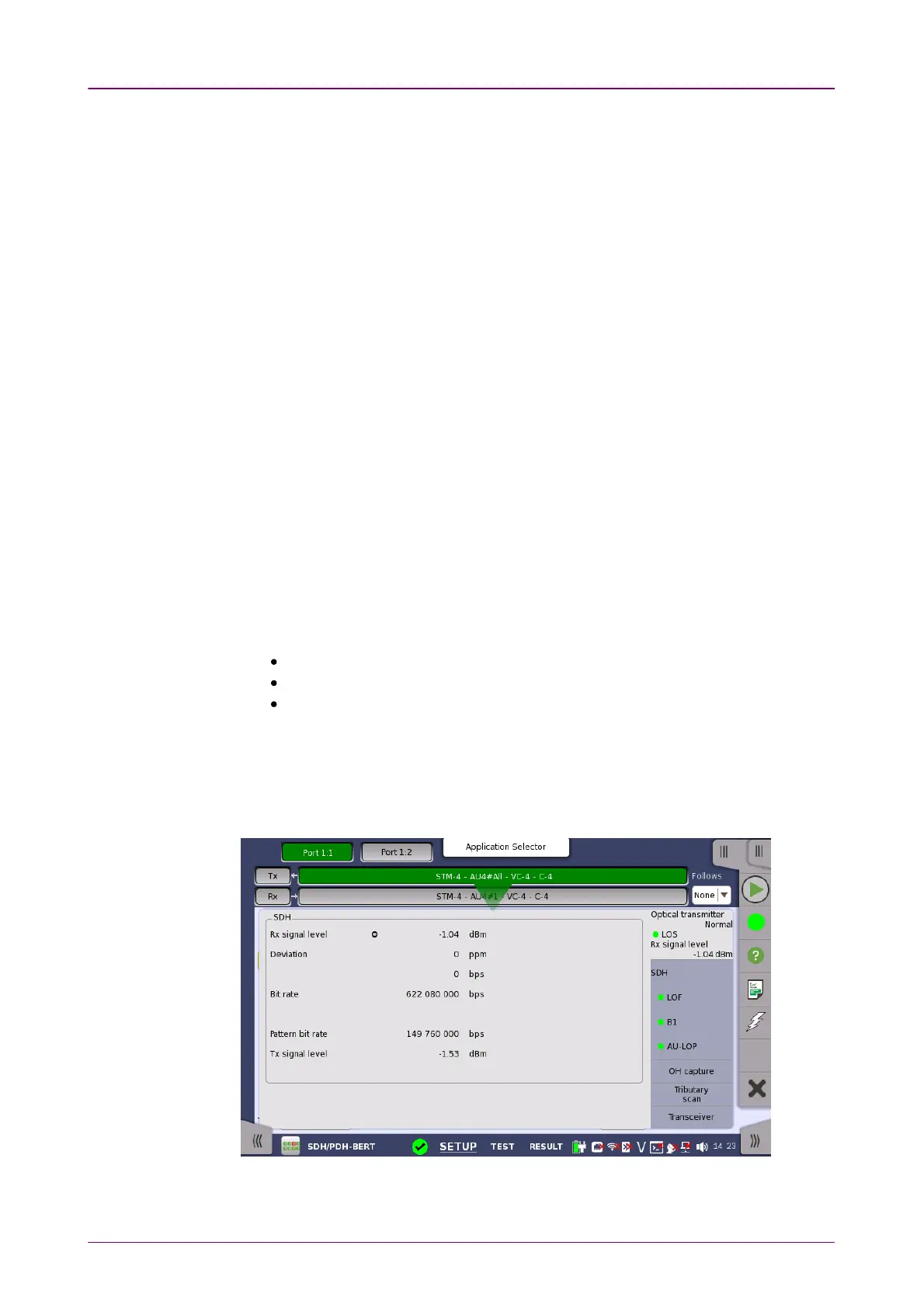

Touching the topmost summary box in the status area of the Ports SetupPorts Setup screen
launches the dialog box shown below.
This dialog box presents detailed information about the current physical status
of the received signal at the STM-1/4/16/64 optical/electrical interface.
