33..22 Key OperationKey Operation
The only physical operator key (the Power button) is described in this section.
33..22..11 Power ButtonPower Button

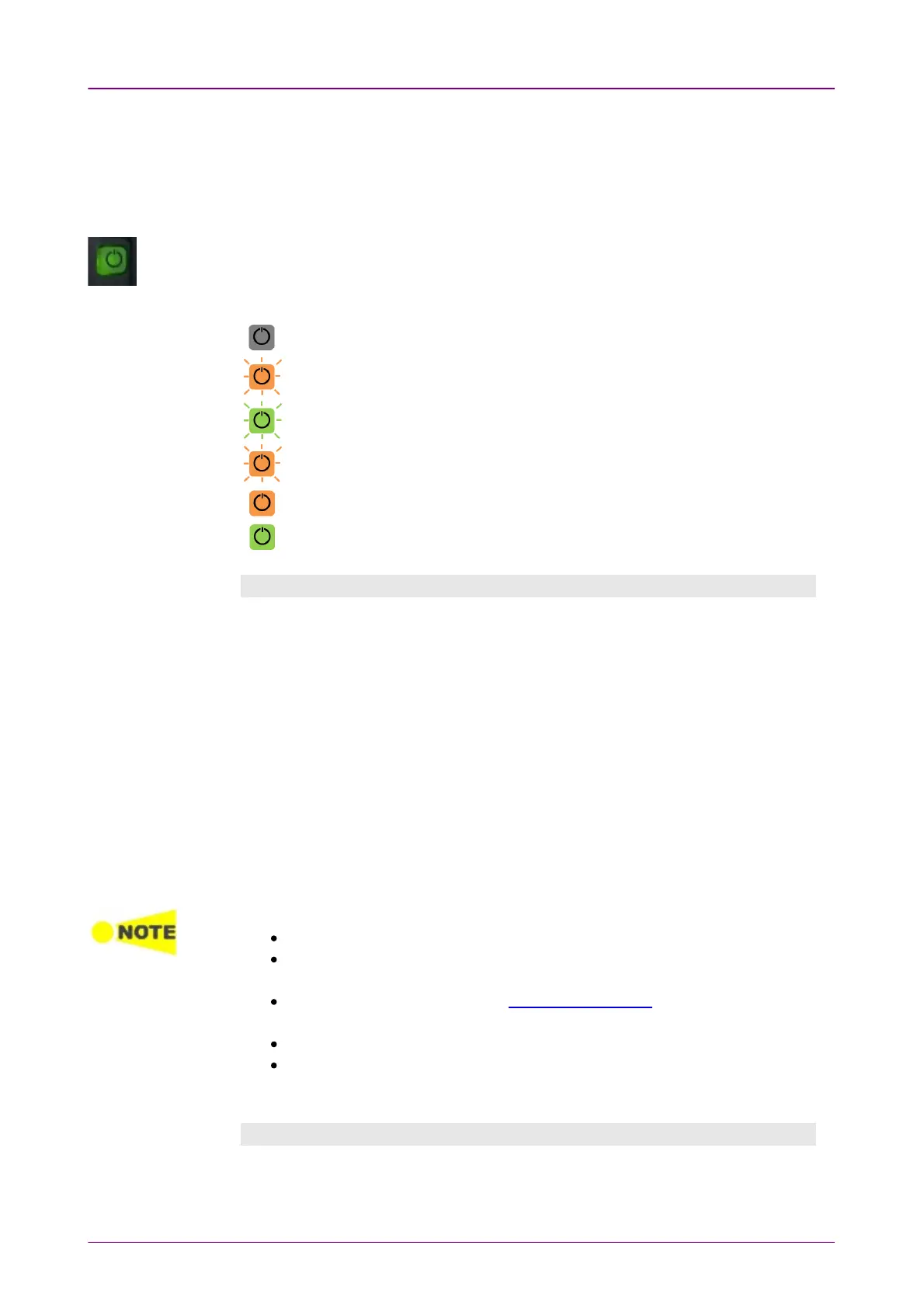

The Power button on the front panel of the instrument is used to switch power ON
and OFF. In addition, the menu used for power-off also contains a few extra options
(e.g. to lock the screen).
Gray: Power off
Orange flashing (fast): Booting in case of AC operation
Green flashing: Booting in case of the battery operation
Orange flashing (slow): Charging
Orange: Stand by
Green: Operating
Switching power ONSwitching power ON
AC OperationAC Operation
Connect the mains power adapter to the Network Master. The Network Master
flashes the power button in orange during booting. The power button lights in
orange after booting.
To start your test, press the power button. The power button lights in green.
After a model name is displayed, the Network Master enters Operating status
and shows the Application Selector.
Battery OperationBattery Operation
Press the power button. The Network Master shows a model name and flashes
the power button in green during booting.
Then, the Network Master enters Operating status and shows the Application
Selector.
In the following cases, the message appears before the Application Selector shows up.
Four or more modules are attached.
A MU100011A has been attached to the Network Master without MT1000A-
006 option.
Within the four types described in Module Configuration, the same modules type
are attached in multiple.
The attached position of GPS module is not appropriate.
The transport module is not attached even if GPS module has been attached.
Touch OKOK to shutdown. Turn on after attaching the module(s) properly.
Switching power OFFSwitching power OFF
When you press the Power button, a pop-up menu containing Shut DownShut Down will
appear.
