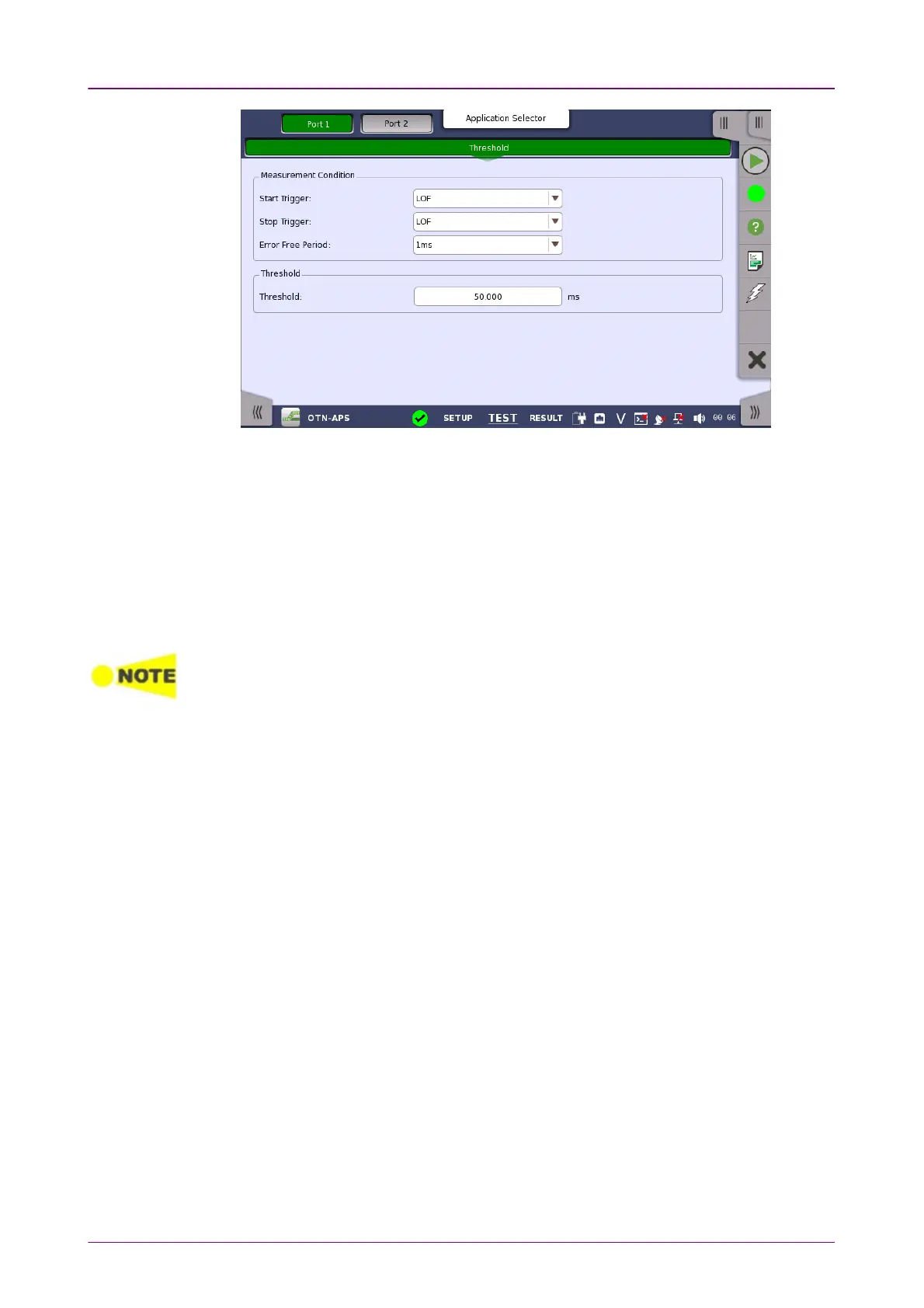

This screen contains the parameters for setting up the threshold values for
errors and Pass/Fail status.
Start Trigger, Stop TriggerStart Trigger, Stop Trigger
Use the drop-down menu(s) to select the appropriate trigger. Start and stop
triggers include the following:
Any errorsAny errors, LOFLOF, OOFOOF, ODU-AISODU-AIS etc.
If selecting Any errorsAny errors, all alarms and errors displayed on the list are treated as
the trigger.
The errors which can be set as the Start Trigger and Stop Trigger do not contain all items
listed in Alarm/Error itemAlarm/Error item on Application Toolbar.
For example, PM-TIM and OTU-FAS are not handled as a trigger even if Any errorsAny errors is
selected.
Error Free PeriodError Free Period
Alarms or Errors set up in stop trigger are not in a measured signal within the
time of this cycle, end the switching time measurement.
ThresholdThreshold
Allows you to specify the maximum duration of the selected trigger(s). Valid
values are from 0.000 ms0.000 ms to 10000.000 ms10000.000 ms.
77..22..33 Test ResultsTest Results
77..22..33..11 SummarySummary
Touching the SummarySummary button in the navigation area will display the screen
shown below.
