VOD (Voltage Output Differential) can be set.
Pre
Emphasis is applied to the bit immediately before where the data changes.
Post
Emphasis is applied to the bit where data changes.
Rx Equalizer
Equalization can be set.
DFE
The mode of boost can be set.
Insersion loss
The gain of the Rx circuit is up to 8 dB in 2 dB steps.
0: 0 dB
1: 2 dB
2: 4 dB
3: 6 dB
4: 8 dB
66..11..44 Errors/Alarms InsertionErrors/Alarms Insertion
This section describes the errors or alarms insertion for the Ethernet layer on
the Application toolbar.

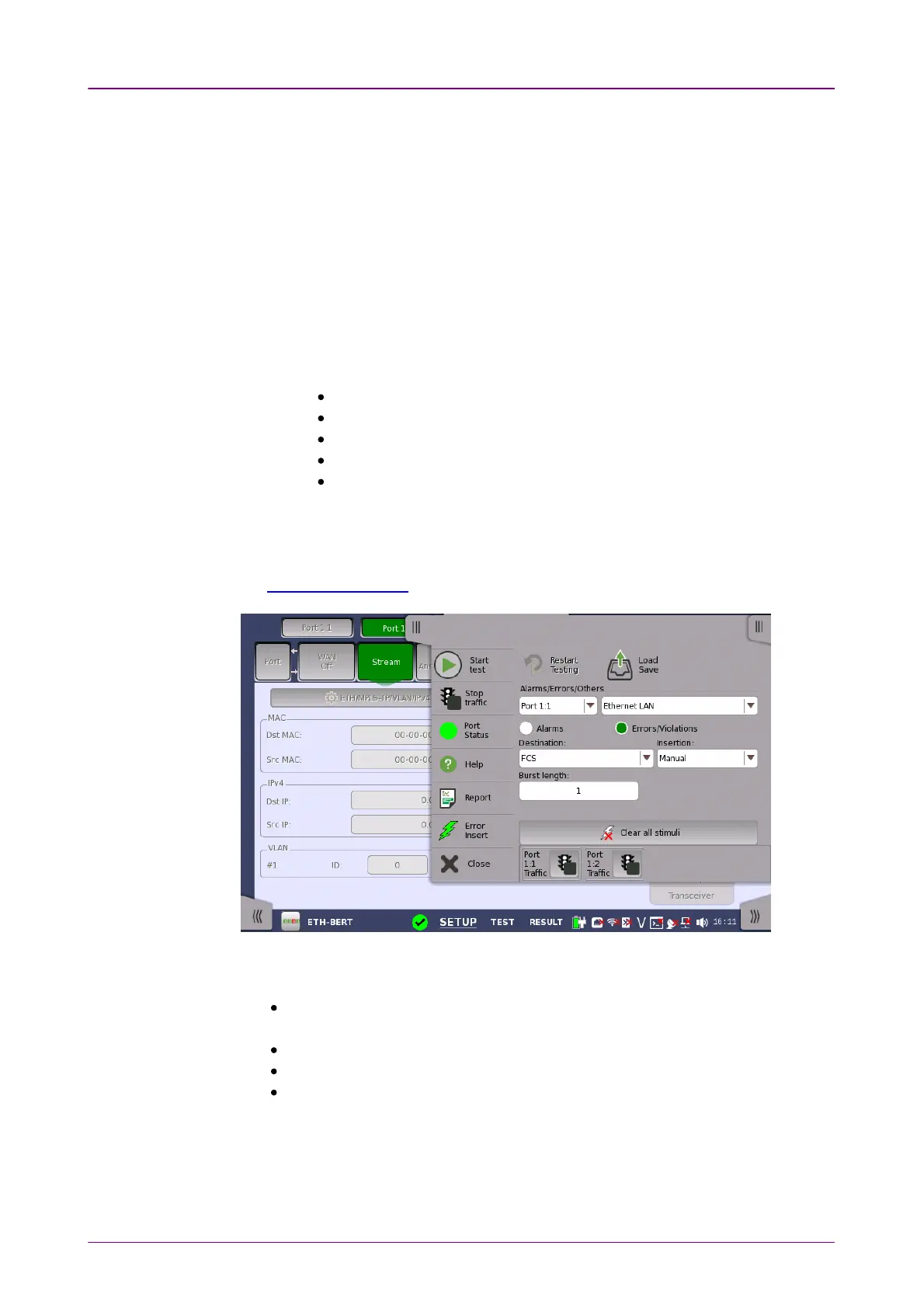

Select the port to insert errors, and the stimuli type. The settings items vary
depending on the selected stimulus type.
Ethernet LANEthernet LAN: Inserts errors or alarms related the Ethernet frame, IP packet
or the pattern error.
Ethernet PCS alarms/errorsEthernet PCS alarms/errors: Inserts errors or alarms to PCS blocks.
Ethernet WANEthernet WAN: Inserts errors or alarms to the WAN header.
Ethernet frequencyEthernet frequency: Adds the frequency offset to the Ethernet bit rate.
66..11..44..11 Ethernet LANEthernet LAN
1. Select AlarmsAlarms or Errors/ViolationsErrors/Violations using the radio button.
2. Select DestinationDestination using the drop down menu.
