22..22 Mains Power AdapterMains Power Adapter
The Network Master can be powered from the supplied AC mains adapter.
CAUTIONCAUTION
Always use AC mains adapter delivered from Anritsu.Always use AC mains adapter delivered from Anritsu.
22..22..11 Connecting Mains Power AdapterConnecting Mains Power Adapter
To connect the mains power adapter to the Network Master, follow the
procedure below:

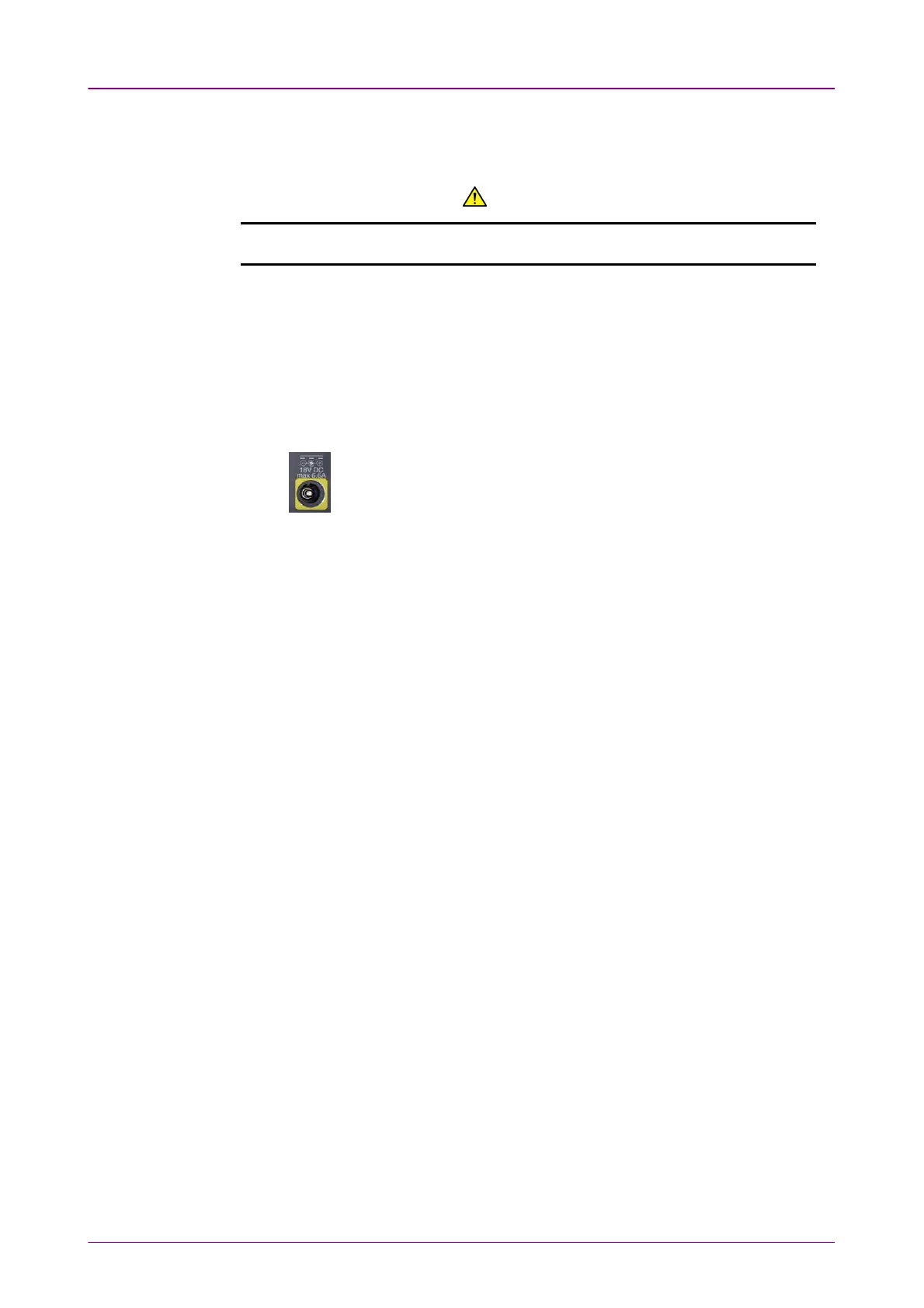

1. Insert the mains adapter's DC power plug into the socket connector marked
'18V DC'. The DC input connector is located on the right-hand side of Network
Master's connector panel.
When option 006 is installed, the area around DC input connector is
marked in yellow. Connect G0385A High power DC adaptor.
When option 006 is not installed, connect G0309A DC adaptor.
2. Connect the AC plug of the mains adapter to the mains and switch on the
mains wall outlet. The power button will flash fast on orange during booting.
Then flashes slowly on orange when charging.
