ThresholdThreshold
77..44..22..22 ThresholdThreshold

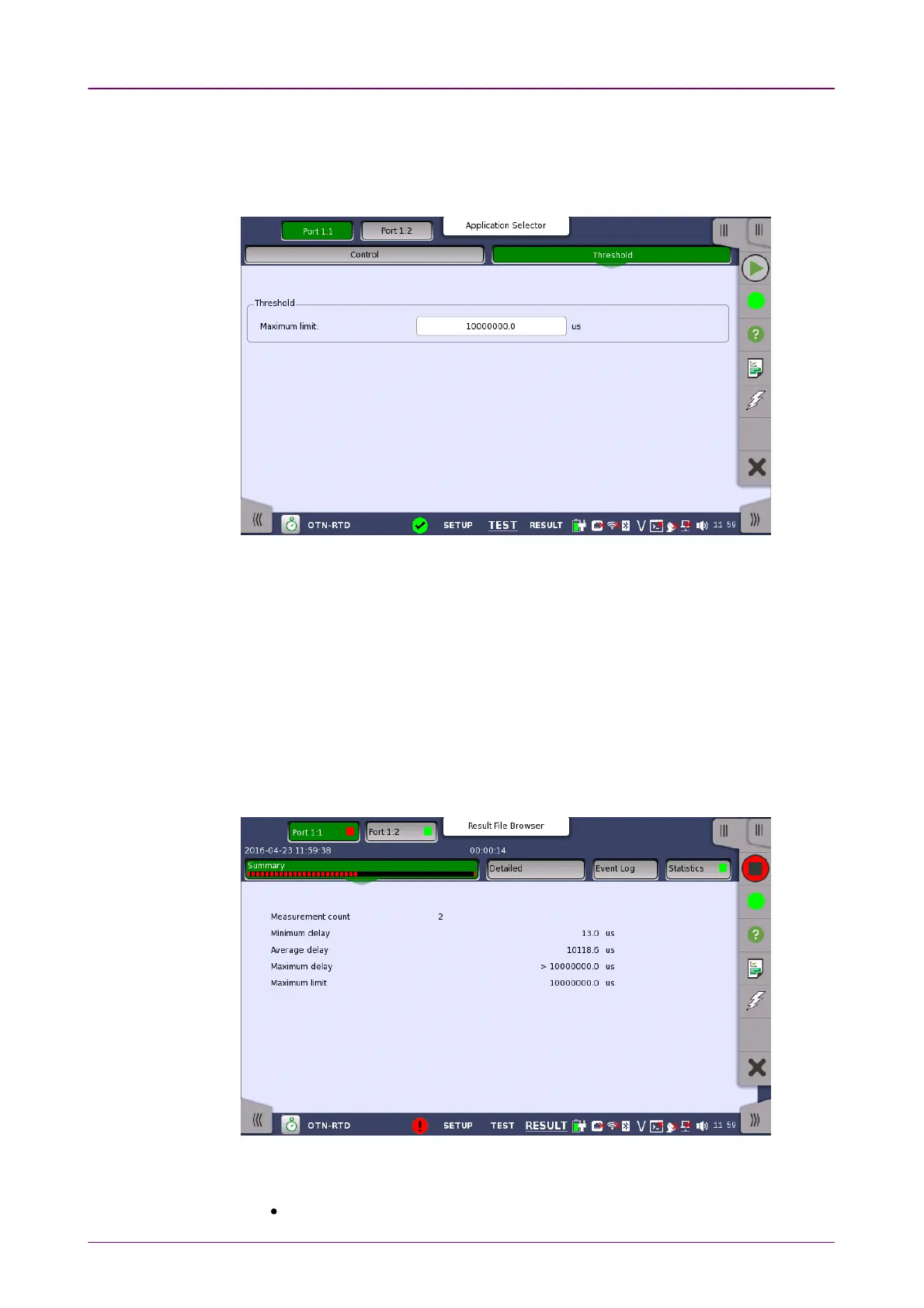

Touching the ThresholdsThresholds button in the navigation area displays the following
screen.
This screen allows you to configure the
RTD test
conditions for the currently
selected port(s).
Maximum limitMaximum limit
Allows you to specify a threshold value of RTD in micro seconds (μs).
77..44..33 Test ResultsTest Results
77..44..33..11 SummarySummary
Touching the SummarySummary button in the navigation area will display the screen
shown below.
This screen presents a summary of the RTD test results, for all of the ports
included in the test. For each port, the information consists of:
The total number of measurements
