Physical StatusPhysical Status
Alarm/Error StatusAlarm/Error Status
Capture/MonitorCapture/Monitor
StatusStatus
88..11..33 Status InformationStatus Information
This section describes the status information available in the status area of the
CPRI/OBSAI ports setup screen.
88..11..33..11 Status SummaryStatus Summary
The status summary displayed for the CPRI/OBSAI interface consists of the
following information:
The topmost part of the status area gives you access to information about the
current physical status of the selected interface. A summary consisting of the
most relevant status indicators is displayed constantly. By touching the
summary, you can open the dialog box where you can view the detailed status
information.
The middle part of the status area gives you access to alarm and error
information for the selected interface. The current status is indicated by the
lamp color.
A summary consisting of the most relevant alarm/error indications is displayed
constantly. By touching the summary, you can open the dialog box where you
can view all alarms/errors.
At the bottom of the status area, a button that gives you access to the monitor
information By touching the button, you can launch the Transceiver
information display.
88..11..33..22 Physical DetailsPhysical Details

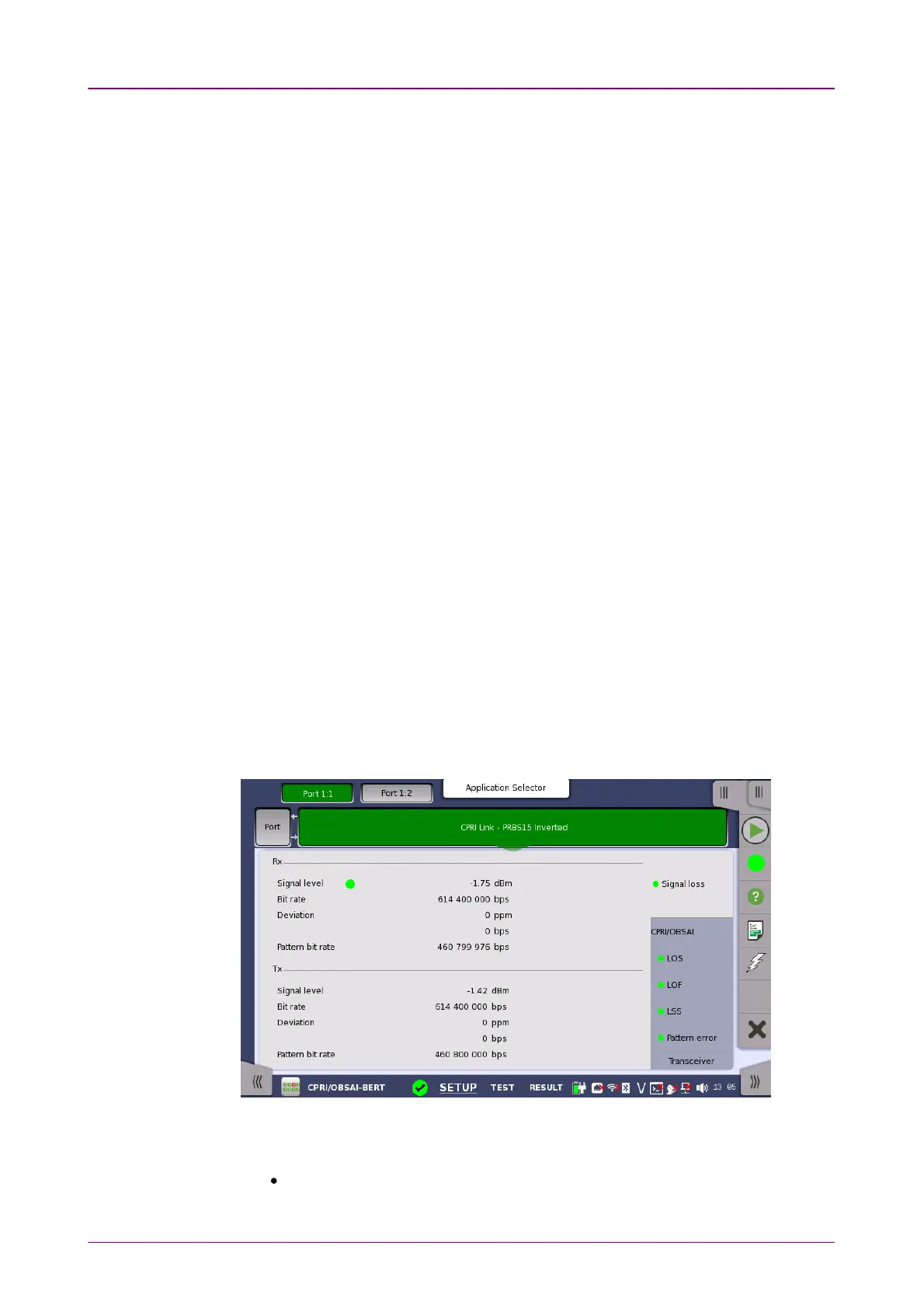

Touching the topmost summary box in the status area of the Ports SetupPorts Setup screen
launches the dialog shown below.
This screen presents information about the current state of the link.
RxRx
Signal levelSignal level: shows the optical signal level in dBm. If the optical signal
detection failed, a red indicator appears on the right.
