OptionOption MeaningMeaning Cord WordCord Word
FEAC Off -
DS3 EF DS3 Equipment Failure Service Affecting 011001
DS3 LOF DS3 Loss of Signal 001110
DS3 OOF DS3 Out of Frame 000000
DS3 AIS DS3 AIS Received 010110
DS3 Idle DS3 Idle Signal Received 011010
DS3 EF NSA DS3 Equipment Failure (Non-Service Affecting) 001111
DS3 CEF NSA DS3 Common Equipment Failure (Non-Service Affecting) 011101
DS1 MLOS Multiple DS1 LOS 010101
DS1 EF DS1 Equipment Failure (Service Affecting) 000101
DS1 LOS Single DS1 LOS 011110
DS1 EF NSA DS1 Equipment Failure (Non Service Affecting) 000101
LL Active Line Loopback Activate 000111
LL Deactive Line Loopback De-activate 011100
User User defined -
USR FEAC codeUSR FEAC code
When 'FEAC Code' is set to UserUser, touch the USR FEAC codeUSR FEAC code button and use the
launched dialog box to define the FEAC code.
55..66..22 Receiver SetupReceiver Setup
55..66..22..11 Physical SetupPhysical Setup

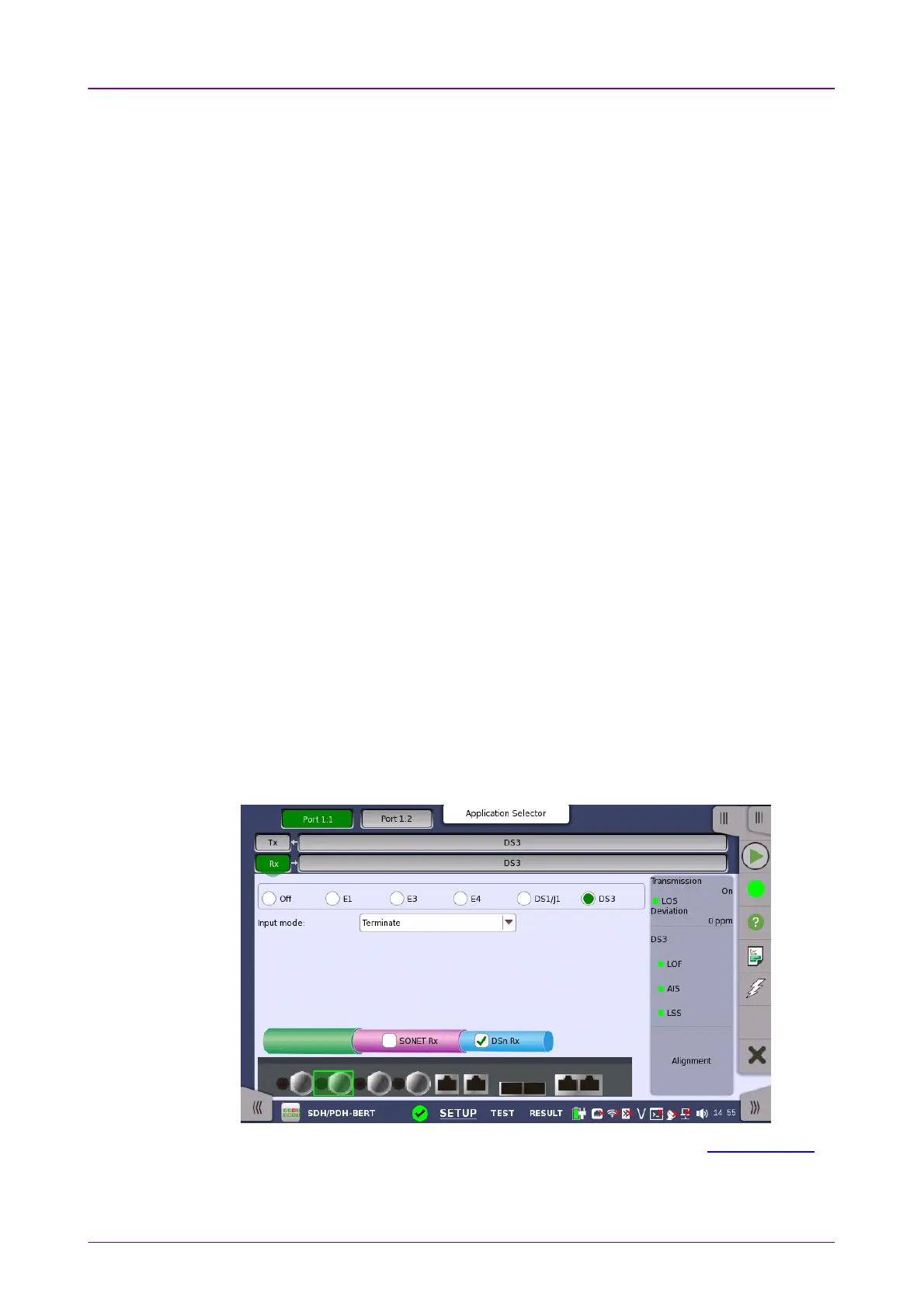

When the receiver is set up with only a DS3 interface, selecting the RxRx button in
the navigation area will launch the following screen.
For the switching method between PDH Rx and DSn Rx, refer to Physical Setup
in "E1 Setup and Status". Touch DS3DS3 radio button. Touching OffOff radio button
disables the receiver.
