1PPS Threshold1PPS Threshold
One way DelayOne way Delay
Threshold (OWD)Threshold (OWD)
1PPS TE1PPS TE
This screen contains the parameters for setting up the various threshold values
(i.e. limits) for Pass/Fail status that are used during the monitoring.
If measured results are out of the threshold, they will be marked in red on the
Statistics screen.
1PPS deviation1PPS deviation
Allows to set the threshold range of 1PPS deviation.
1PPS phase error1PPS phase error
Allows to set the threshold range of 1PPS phase error.
1PPS filtered TE1PPS filtered TE
Allows to set the threshold range of filtered TE.
Sync OWDSync OWD
Allows to set the threshold range of Sync OWD.
Follow up OWDFollow up OWD
Allows to set the threshold range of Follow_Up OWD.
Delay req. OWDDelay req. OWD
Allows to set the threshold range of Delay_Request OWD.
66..1313..33 Test ResultsTest Results
66..1313..33..11 SummarySummary

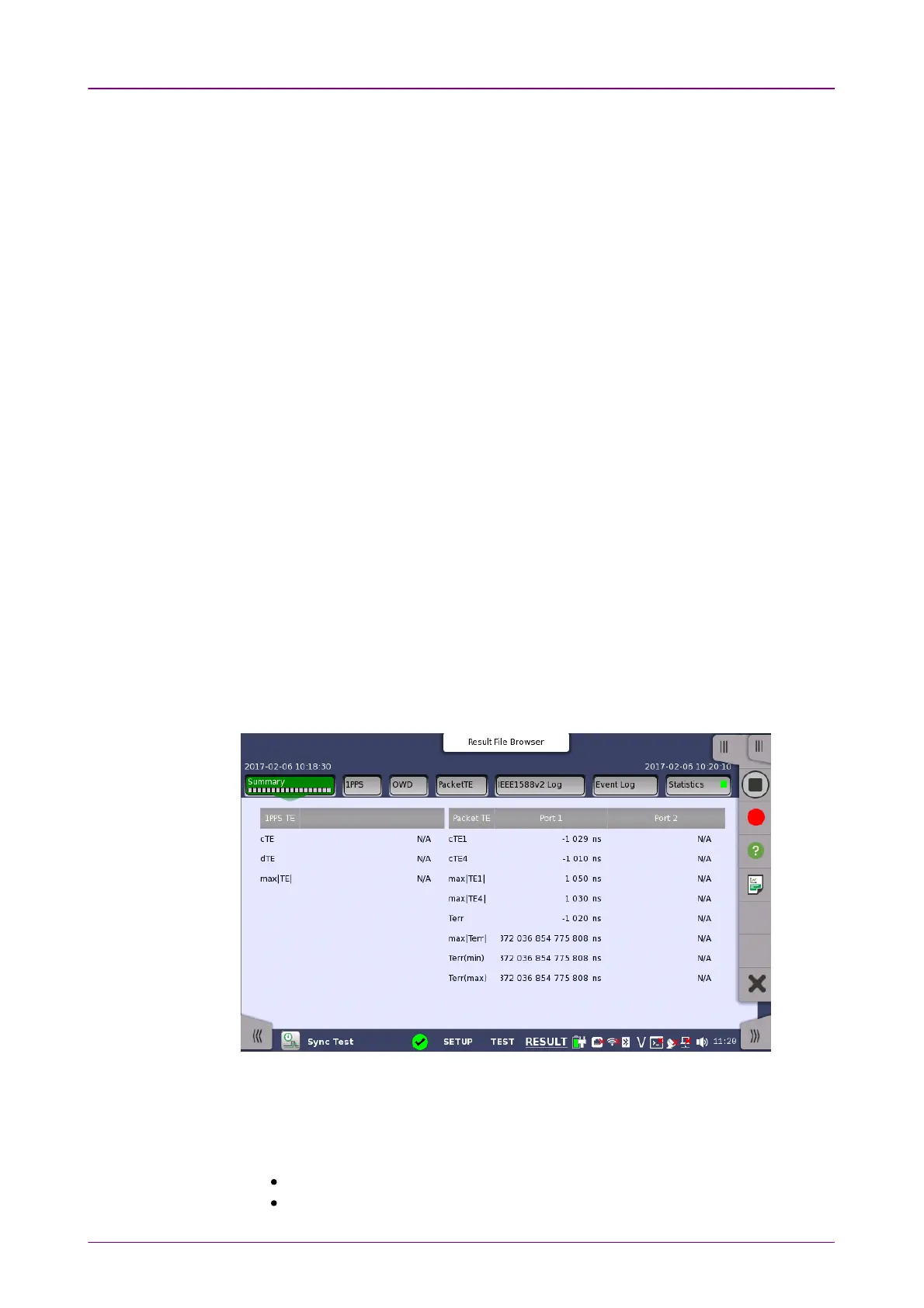

Touching the SummarySummary in the navigation area displays the screen shown
below.
This screen contains a summary of the results of the Sync Test.
TE (Time error) represents the phase error (time difference) between the
reference 1PPS signal and the 1PPS signal under test. 'N/A' is displayed if the
1PPS signal has not been detected.
cTE (constant Time Error): Mean value of the phase error
dTE (dynamic Time Error): Deviation value of the phase error
