Audio
The audio connector is used for connecting to an optional head
set.
AUX The AUX connector is used for optional G0325A GPS Receiver.
Ext Clock Input The Ext Clock Input connector is used for reference clock input.
USB B The three USB connectors (two connectors type A and one
connector type B mini) can, for example, be used for connection
with USB memory stick. This is convenient for the exchanging of
information to other instrument.
USB A
Ethernet service
interface
The Ethernet connector is used for connecting the Network Master
to a Local Area Network, e.g. to remotely operate the instrument
from a PC.
DC input (18
VDC)
The DC power connector is used for connection of 18 V DC power
delivered from the AC Adapter.
For option 006, a yellow marking is printed around the connector.

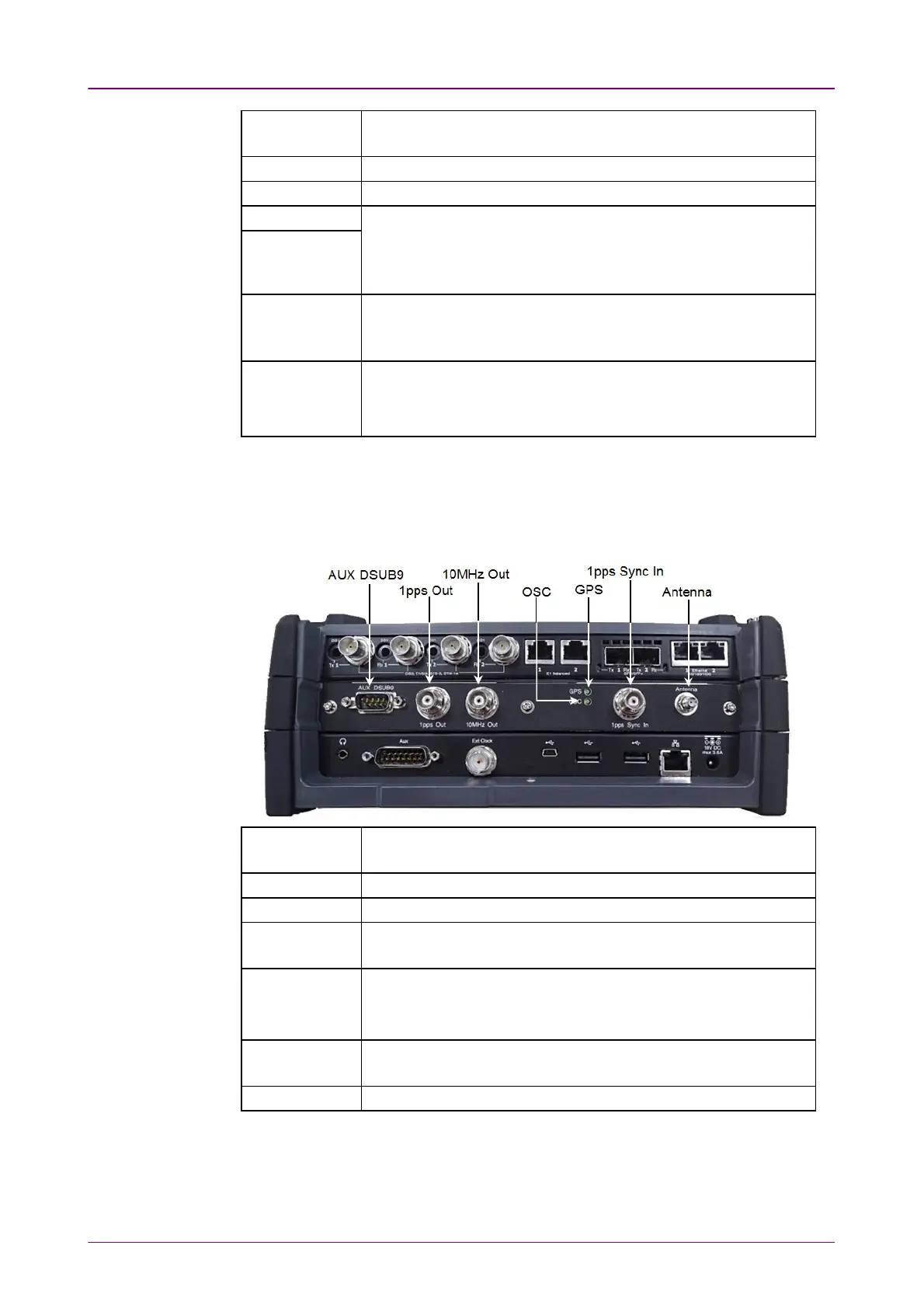

33..44..33 GPS Disciplined Oscillator InterfacesGPS Disciplined Oscillator Interfaces
All connections concerning the GPS Disciplined Oscillator interfaces are also
located on the connector panel:
AUX DSUB9
Connects to AUX connector on MT1000A panel using J1705A
AUX Conversion Adaptor.
1pps Out The 1PPS signal is output. *
10MHz Out The 10 MHz clock signal is output. *
GPS
Lights in green when signals of four or more satellites are being
received.
OSC
Lights in green when the Rubidium oscillator stability reaches 10
-9
.
This lights within around ten minutes usually. However this varies
depending on ambient temperature.
1pps Sync In
The input connector of the external 1PPS reference signal for the
synchronization.
Antenna The connector for GPS antenna.
*: Signal which is synchronized with GPS or the signal inputted to 1pps Sync In.
Connections of GPS Disciplined Oscillator InterfacesConnections of GPS Disciplined Oscillator Interfaces
